Hitachi H8/500 Series - Reset Input Timing; Interrupt Input Timing; NMI Pulse Width (for Recovery from Software Standby Mode)

20.3.2 Control Signal Timing
1. Reset Input Timing
2. Interrupt Input Timing
3. NMI Pulse Width
RES
ø
tRESW
tMDS
MD to MD20
tRESStRESS
IRQ0
IRQ1
NMI
ø
tIRQ1S
tIRQ0S
tIRQ1H
tNMIHtNMIS
NMI
t
NMIW

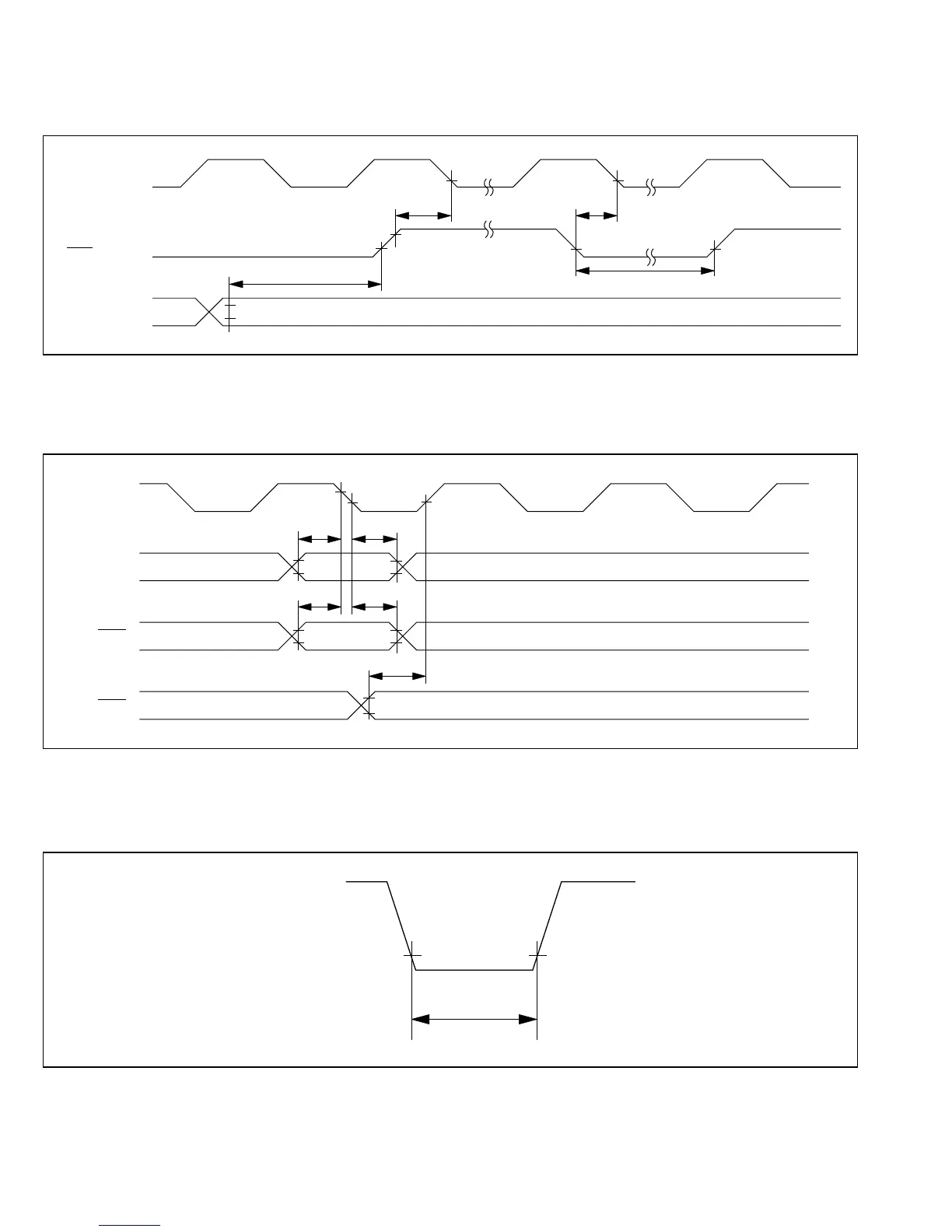

Figure 20-7 Reset Input Timing
Figure 20-8 Interrupt Input Timing
Figure 20-9 NMI Pulse Width (for Recovery from Software Standby Mode)
