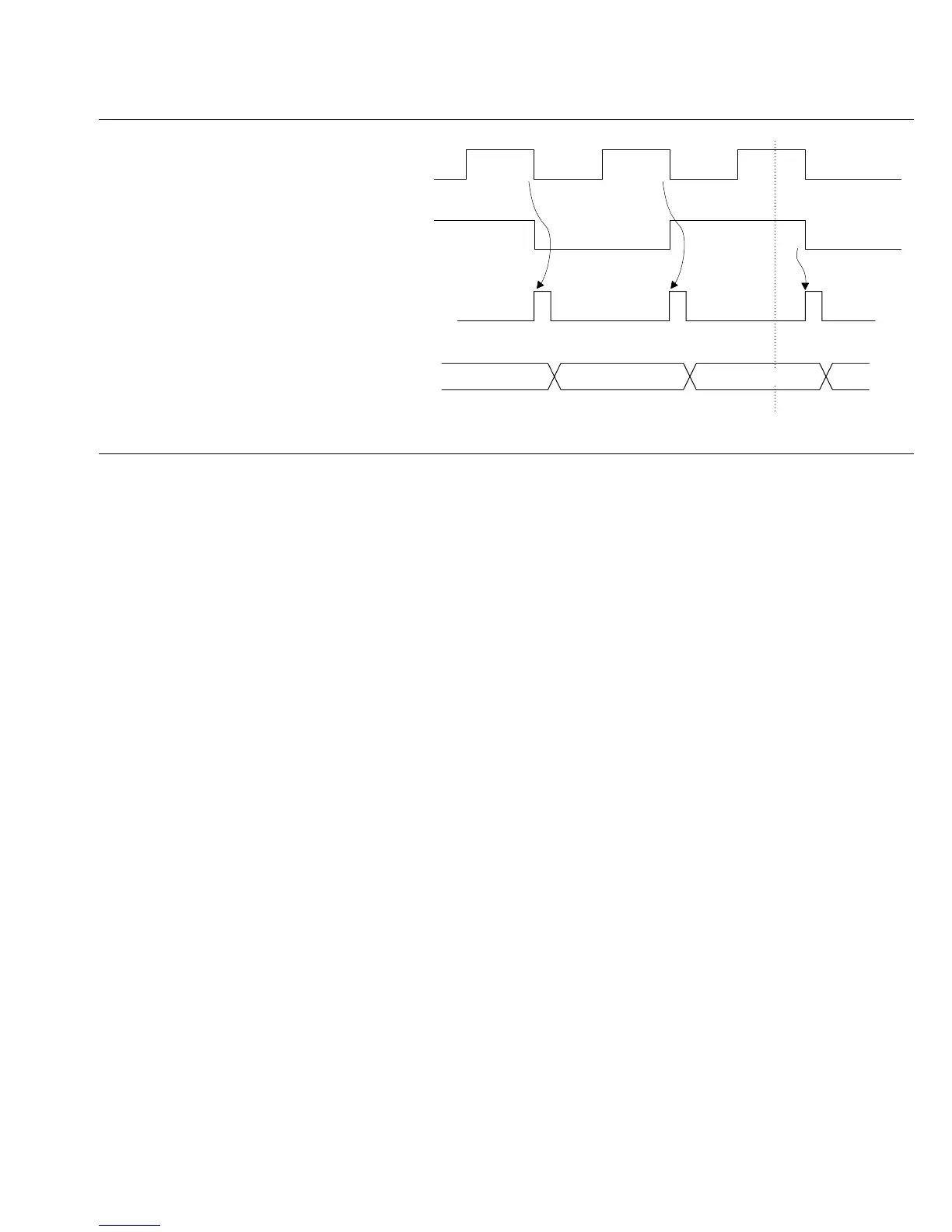

Table 11-5 Effect of Changing Internal Clock Sources (cont)
No. Description Timing Chart
4 High → High:
CKS1 and CKS0 are
rewritten while both
clock sources are High.
CKS rewrite
Old clock
source
New clock
source
TCNT clock
pulse
TCNT
N N + 1 N + 2
225
