130
Verifying the configuration
• Client 1 and Client 2 access the WLAN through an SSID named service1.
• Check that traffic from Client 1 is rate limited to around 128 kbps, so is traffic from Client 2.
Dynamic rate limiting configuration example
Network requirements
As shown in Figure 128, clients access the WLAN through a SSID named service2. Configure all clients
to share 8000 kbps of bandwidth in any direction.

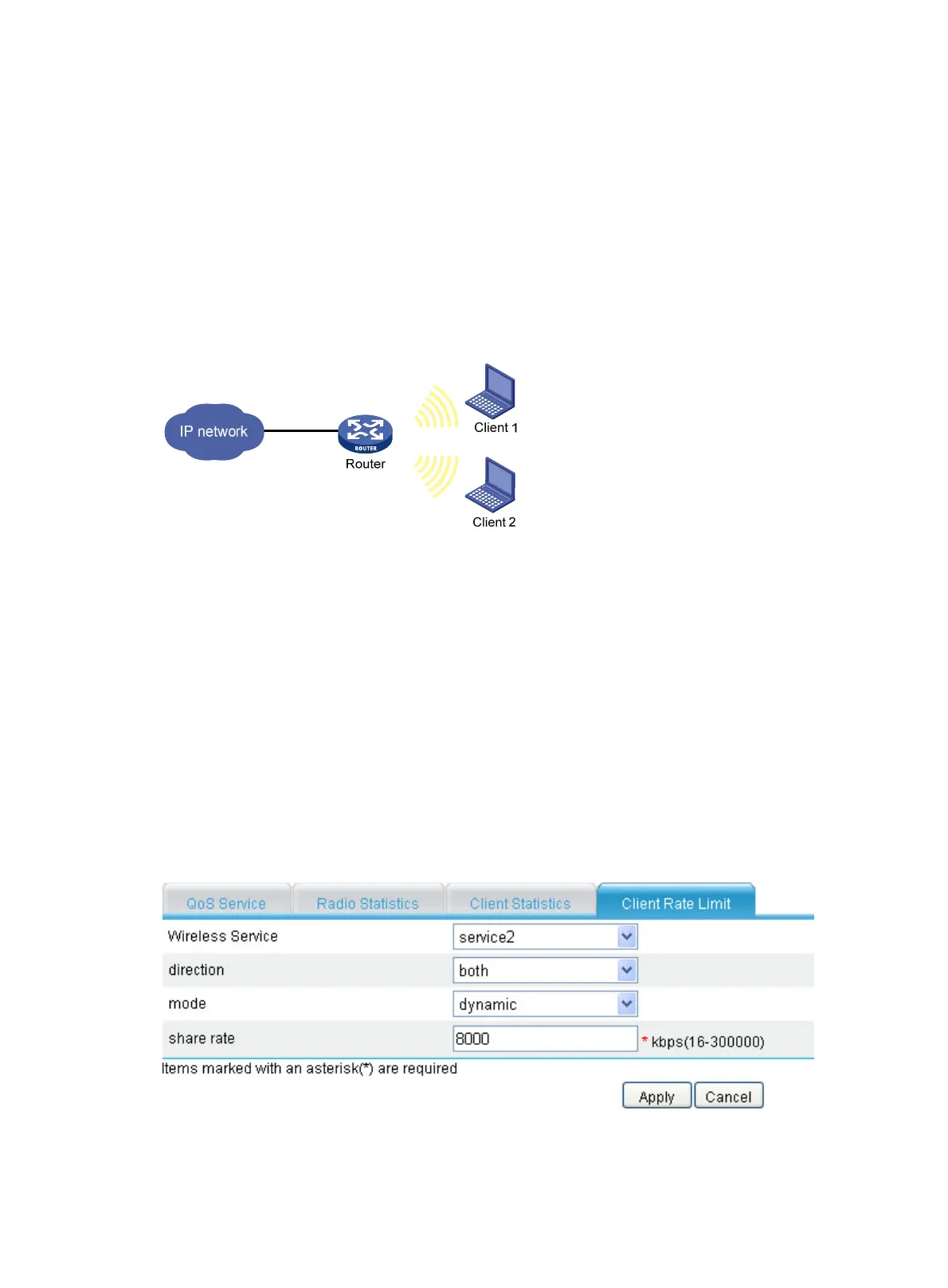

Figure 128 Network diagram
Configuration procedure
1. Configure the wireless service:
For the configuration procedure, see "Wireless access service configuration examples." You
can
strictly follow the related configuration example to configure the wireless service.
2. Configure dynamic rate limiting:
a. Select Interface Setup > Wireless > Wireless QoS from the navigation tree.
b. Click Client Rate Limit.
c. Click Add.
d. On the page that appears, select service2 from the Wireless Service list, select both from the
direction list, select dynamic from the mode list, enter 8000 in the share rate field, and click
Apply.
Figure 129 Configuring dynamic rate limiting
