Client mode configuration example
Network requirements
As shown in Figure 96, the router accesses the wireless network as a client. The Ethernet interface of the
router connects to multiple hosts or printers in the wired network, and thus the wired network is connected
to the wireless network through the router.
• The AP accesses the wired LAN, and the router accesses the AP as a client.
• The router accesses the wireless service psk by passing the RSN(CCMP)+PSK authentication.
• Client with MAC address 0014-6c8a-43ff also accesses the wireless service psk.

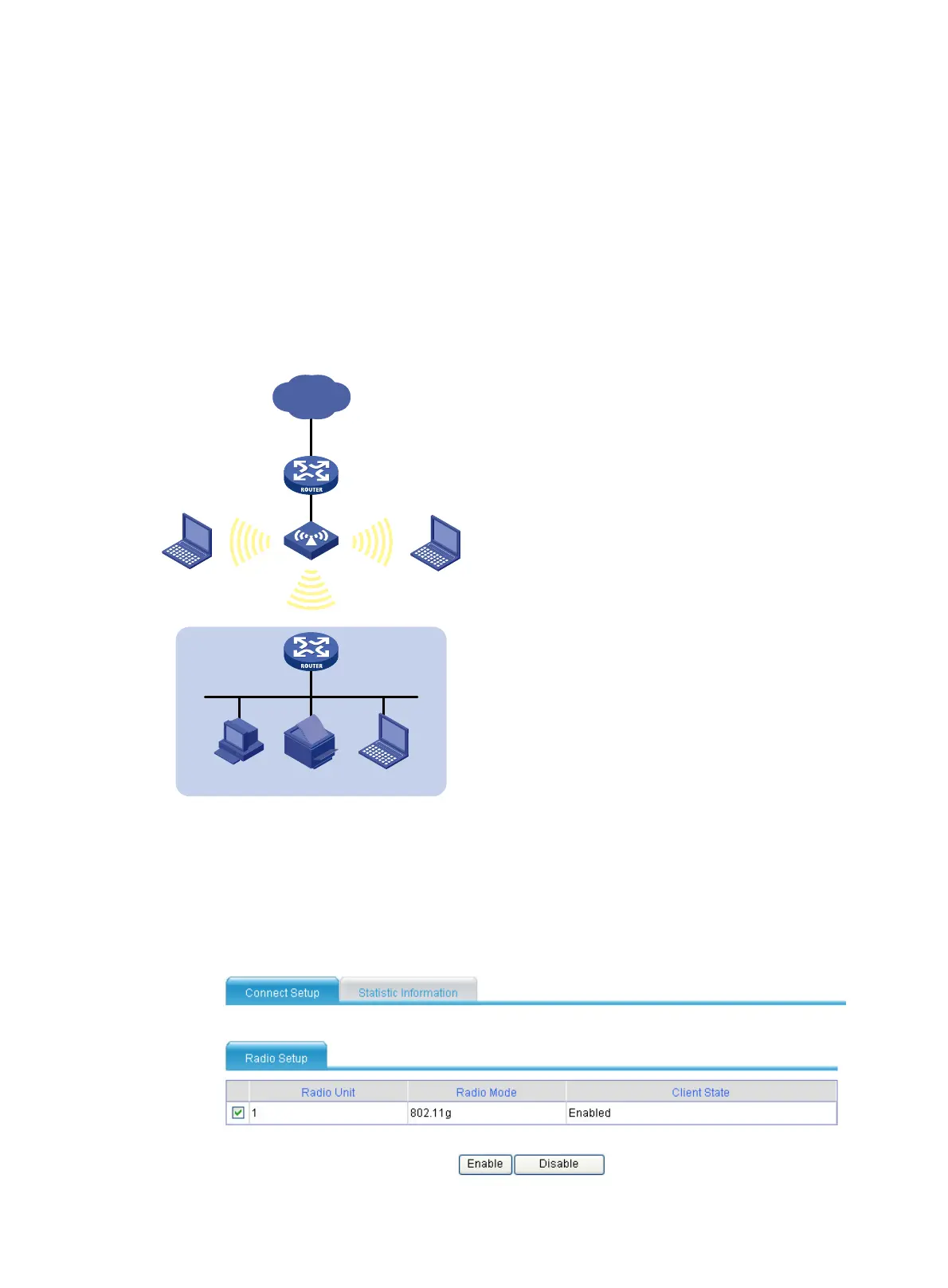

Figure 96 Network diagram
Configuration procedure
1. Enable the client mode:
a. Select Interface Setup > Wireless Service > Client Mode from the navigation tree.
b. Click Connect Setup.
Figure 97 Enabling the client mode
Internet
Gateway
AP
Router
PC
Printer Client
Client
Client
PSK
PSKPSK
