HP MSR SERIES User Manual

96
c. Click Add.
d. On the page that appears, set the service name as mac, keep the default values for other
parameters, and click OK.

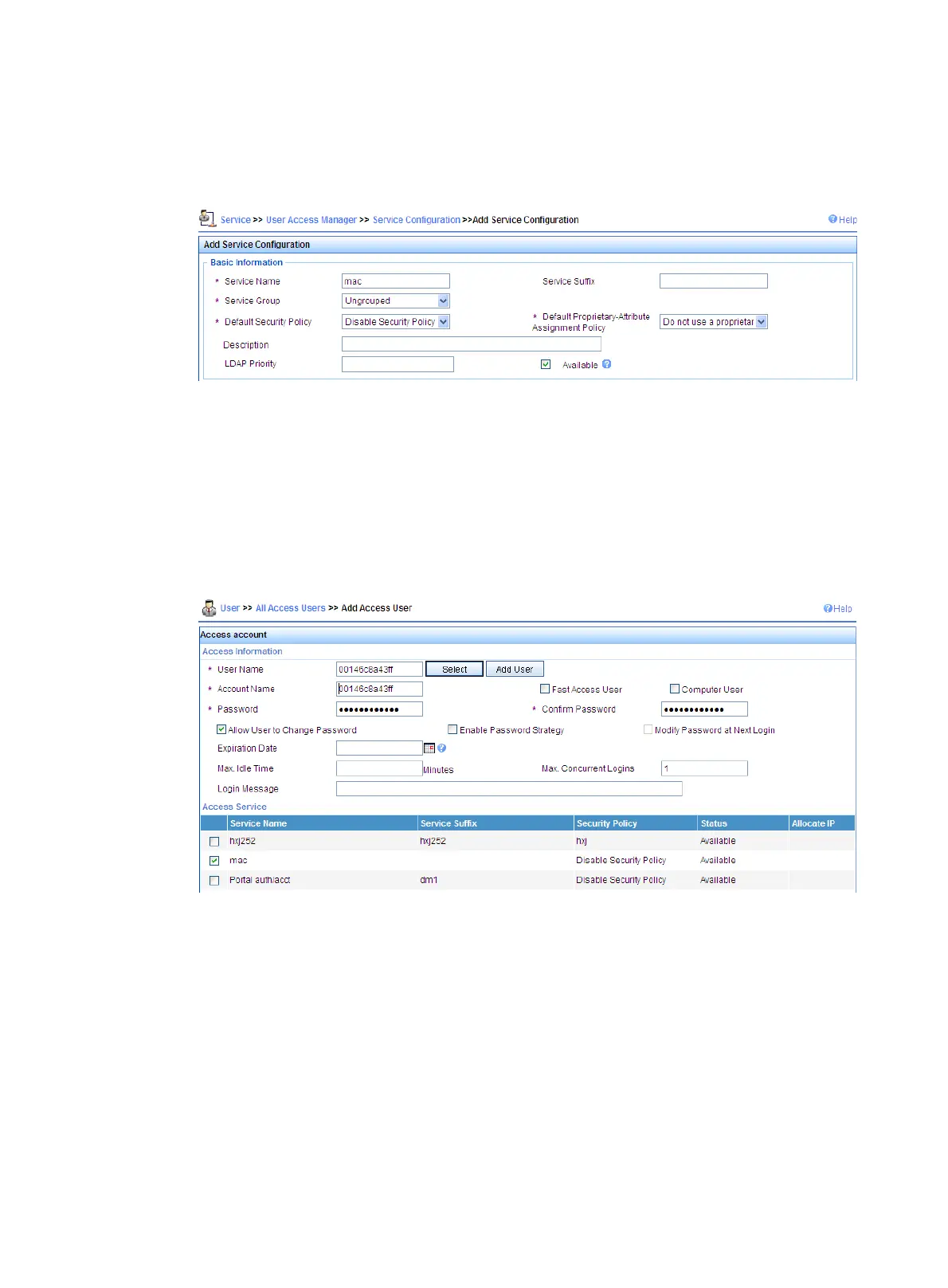

Figure 79 Adding a service
3. Add an account:
a. Click the User tab.
b. Select User > All Access Users from the navigation tree.
c. Click Add.
d. On the page that appears, enter username 00146c8a43ff, set the account name and
password both as 00146c8a43ff, select the service mac, and click OK.
Figure 80 Adding an account
Verifying the configuration
During authentication, the user does not need to input the username or password. After passing MAC
authentication, the client can associate with the device and access the WLAN. You can view the online
clients by selecting Interface Setup > Wireless > Summary from the navigation tree and then clicking the
Client tab.
Remote 802.1X authentication configuration example
Network requirements
Use IMC as a RADIUS server for AAA. On the RADIUS server, configure the client’s username as user,
password as dot1x, and shared key as expert. The IP address of the RADIUS server is 10.18.1.88.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
