WiNet configuration example
WiNet establishment configuration example
Network requirements
As shown in Figure 540, a WiNet comprises an administrator and two members.
• The administrator is connected to the external network through Ethernet 0/1, and is connected to
the members through Ethernet 0/2 and Ethernet 0/3.
• The WiNet management VLAN is VLAN 10.
• The network interface of the administrator is VLAN-interface 10 with IP address 163.172.55.1/24.

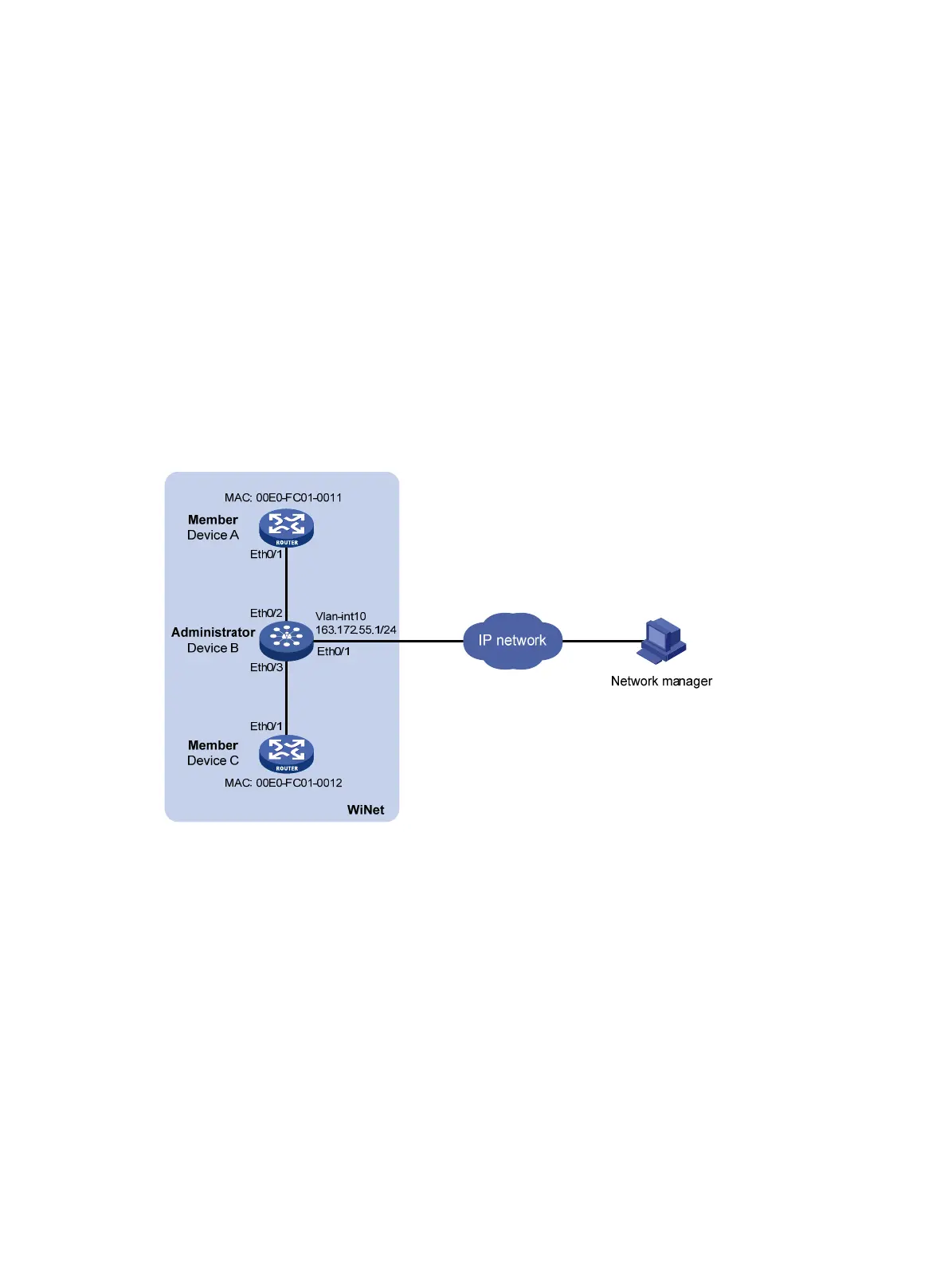

Figure 540 Network diagram
Configuration procedure
1. Configure Device A and Device C:
# Configure Ethernet 0/1 on each device to permit VLAN 10 traffic. (Details not shown.)
2. Configure Device B:
# Create VLAN 10 and VLAN-interface 10.
a. Select Interface Setup > LAN Interface Setup from the navigation tree to enter the default VLAN
Setup page.
