336
6. Click OK.

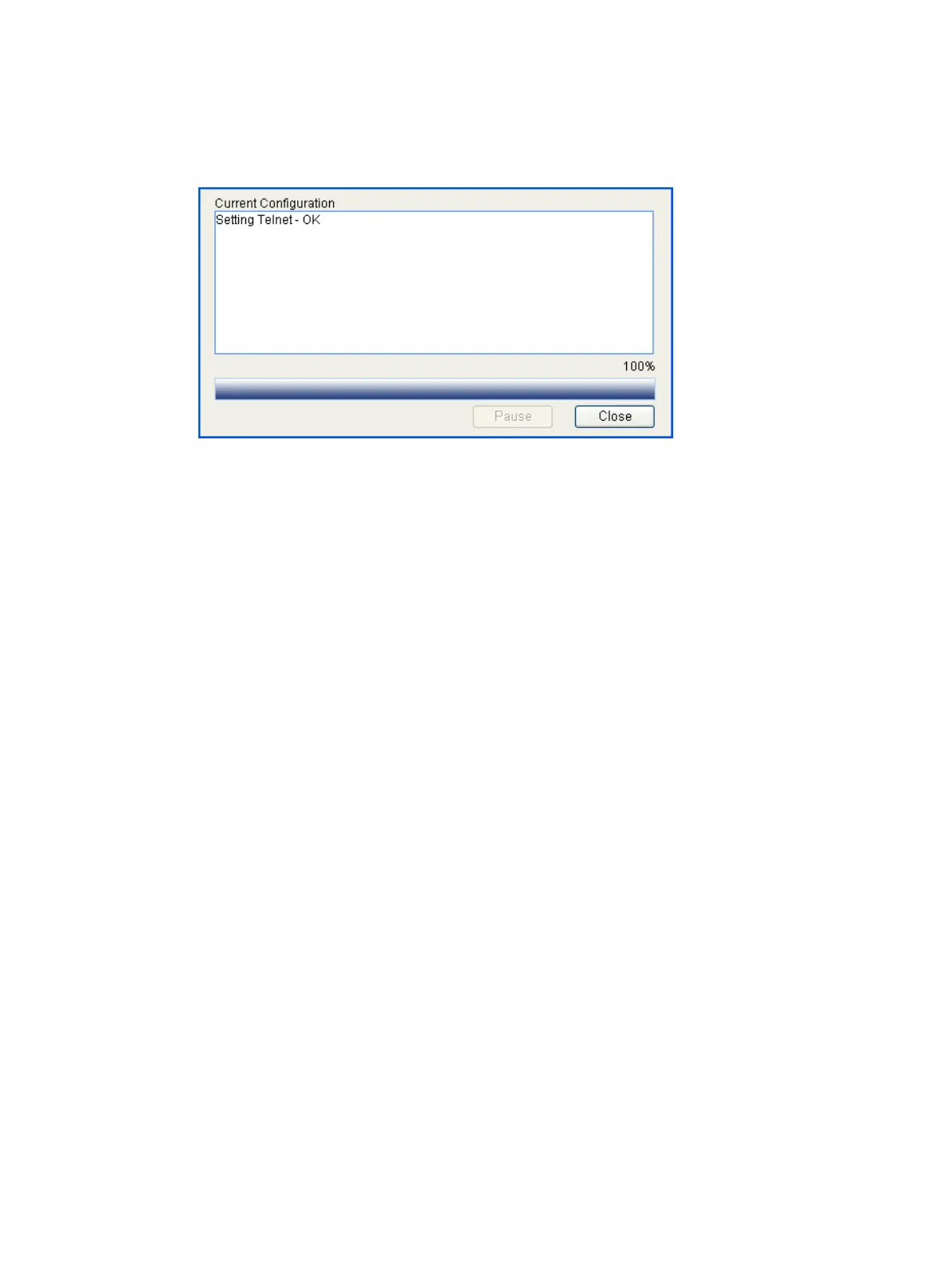

A configuration progress dialog box appears, as shown in Figure 338.
Figure 338 Configuration progress di
alog box
7. After the setting is complete, click Close.
Configuring a login control rule so Host B cannot access Router
through the Web
1. From the navigation tree, select Advanced > Access.
The page for configuring login control rules appears.
2. Select Web as the login type to be restricted.
3. Enter the user IP address 10.1.1.2 and the wildcard 0.0.0.0.
4. Click Apply.
A dialog box appears, asking you whether you want to continue your operation.
5. Click OK.
6. After the setting is complete, click Close.
