Verifying the configuration
If the number of existing clients in the high-priority ACs plus the number of clients requesting access is
smaller than or equal to the user-defined maximum number of users allowed in high-priority ACs, which
is 10 in this example, the request is allowed. Otherwise, the request is rejected.
Static rate limiting configuration example
Network requirements
As shown in Figure 126, two clients access the WLAN through a SSID named service1. Limit the
maximum bandwidth per client to 128 kbps on the device.

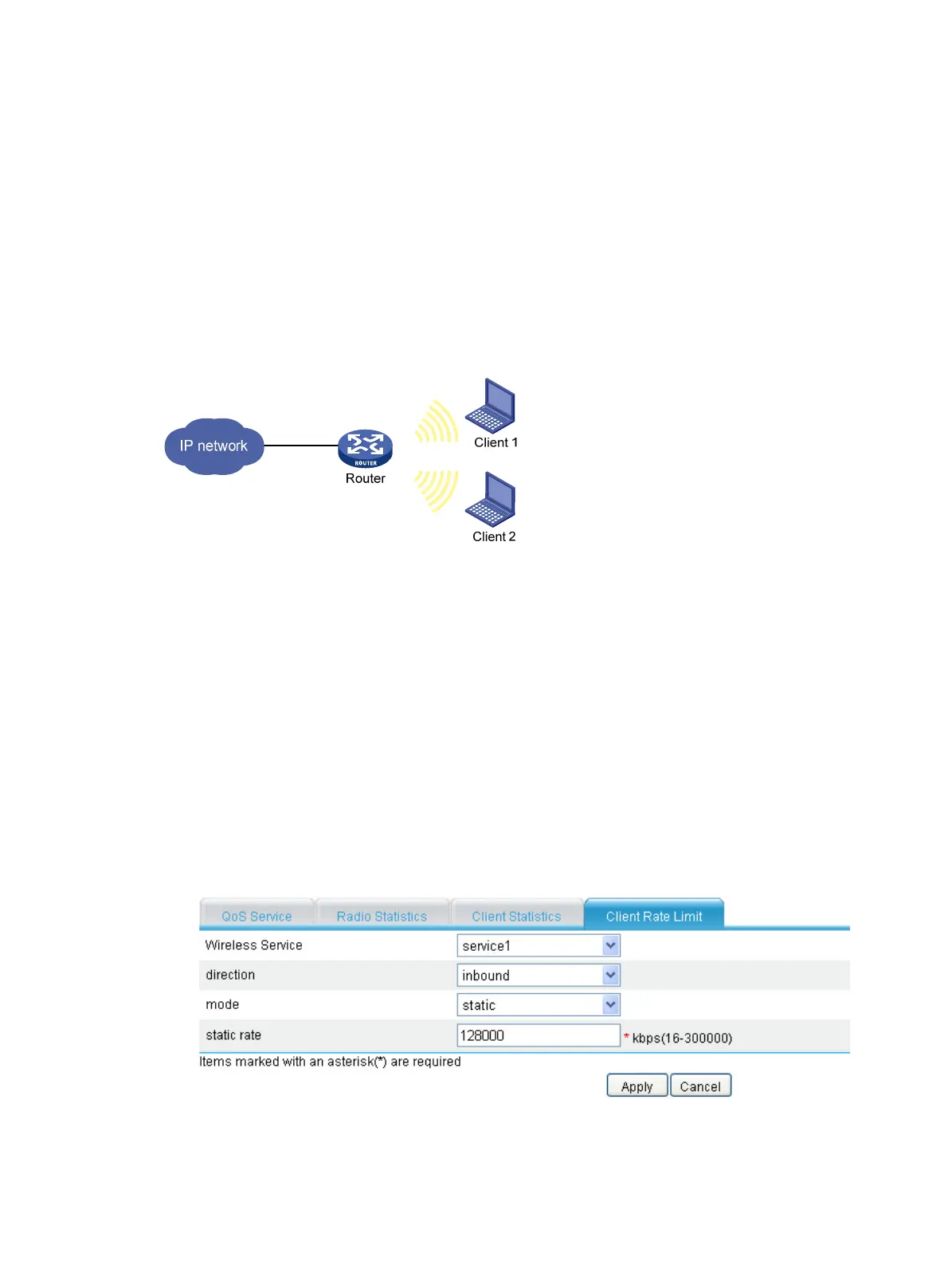

Figure 126 Network diagram
Configuration procedure
1. Configure the access service:
For the configuration procedure, see "Wireless access service configuration examples." You
can
strictly follow the related configuration example to configure the wireless service.
2. Configure static rate limiting:
a. Select Interface Setup > Wireless > Wireless QoS from the navigation tree.
b. Click Client Rate Limit.
c. Click Add.
d. On the page that appears, select service1 from the Wireless Service list, select inbound from
the direction list, select static from the mode list, enter 128000 in the static rate field, and click
Apply.
Figure 127 Configuring static rate limiting
