Configuring a rule for a basic IPv4 ACL

Select Advanced > QoS Setup > ACL IPv4 from the navigation tree and then select the Basic Config tab

to enter the rule configuration page for a basic IPv4 ACL.

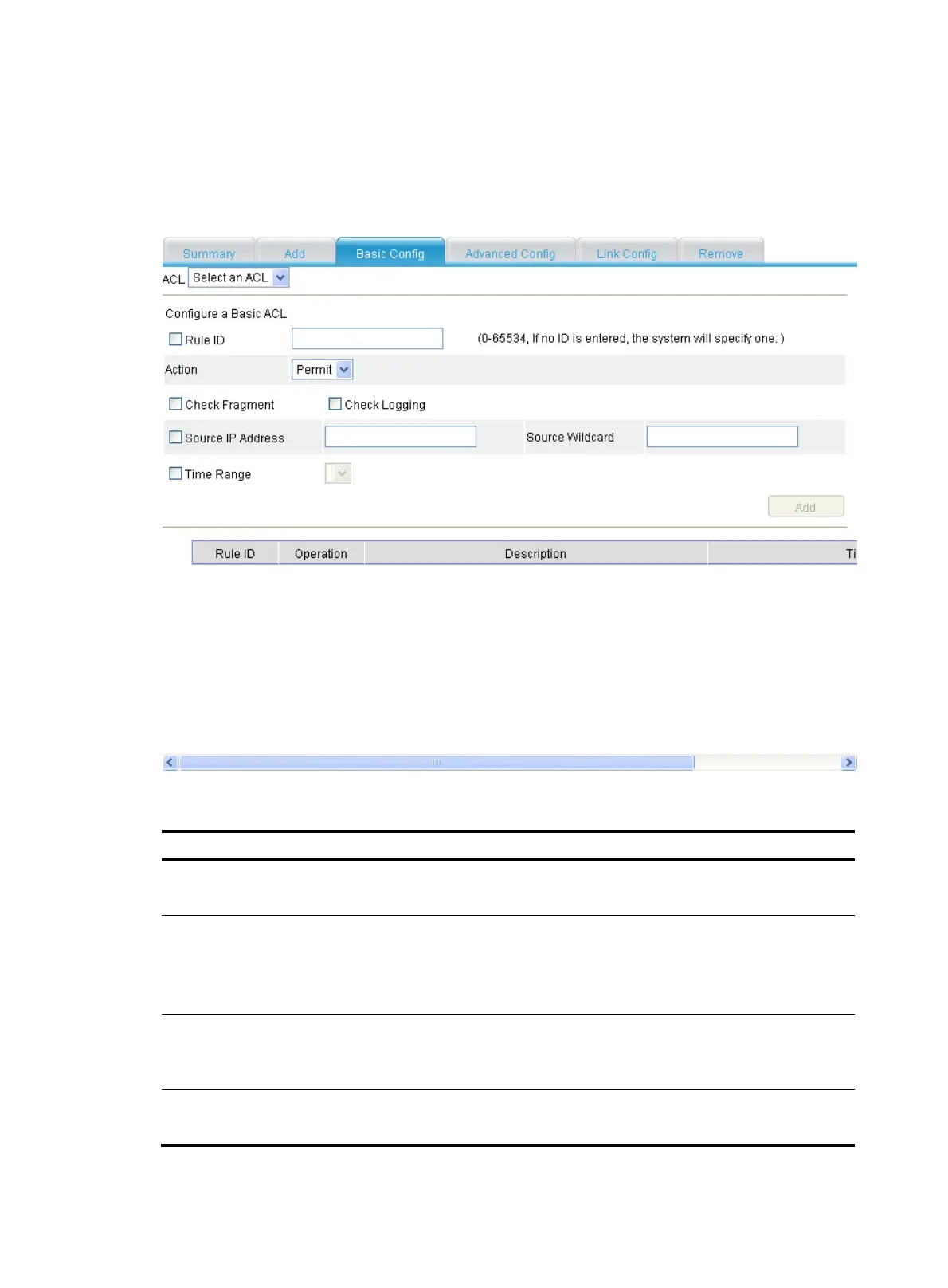

Figure 235 The page for configuring an basic IPv4 ACL

Table 112 Configuration items

Item Descri

tion

ACL

Select the basic IPv4 ACL for which you want to configure rules.

ACLs available for selection are basic IPv4 ACLs.

Rule ID

Select the Rule ID box, and enter a number for the rule.

If you do not specify the rule number, the system will assign one automatically.

If the rule number you specify already exists, the following operations modify the

configuration of the rule.

Action

Select the action to be taken on the IPv4 packets matching the rule:

• Permit—Allows matched packets to pass.

• Deny—Drops matched packets.

Check Fragment

Select this box to apply the rule only to non-first fragments.

If you do not select this box, the rule applies to all fragments and non-fragments.
