HP MSR SERIES User Manual

127
Table 76 Configuration items
Item Descri
p
tion
Wireless Service Existing wireless service.
Direction
Inbound or outbound.
• Inbound—From clients to the device.
• Outbound—From the device to clients.
• Both—Includes inbound (from clients to the device) and outbound
(from the device to clients).
Mode
Rate limiting mode, dynamic or static.
• Dynamic mode.
• Static mode.
Rate
Set the rate of the clients.
• If you select the static mode, static rate is displayed, and the rate is
the bandwidth of each client.
• If you select the dynamic mode, share rate is displayed, and the rate
is the total bandwidth of all clients.
Wireless QoS configuration example
CAC service configuration example
Network requirements
As shown in Figure 122, an AP with WMM enabled accesses the Ethernet. Enable CAC for the AC-VO
and AC-VI queues of the clients of the fat AP. Use the user number-based admission policy to limit the
number of access users to 10, so that the clients using high-priority queues (including the AC-VO and
AC-VI queues) can be guaranteed of enough bandwidth.

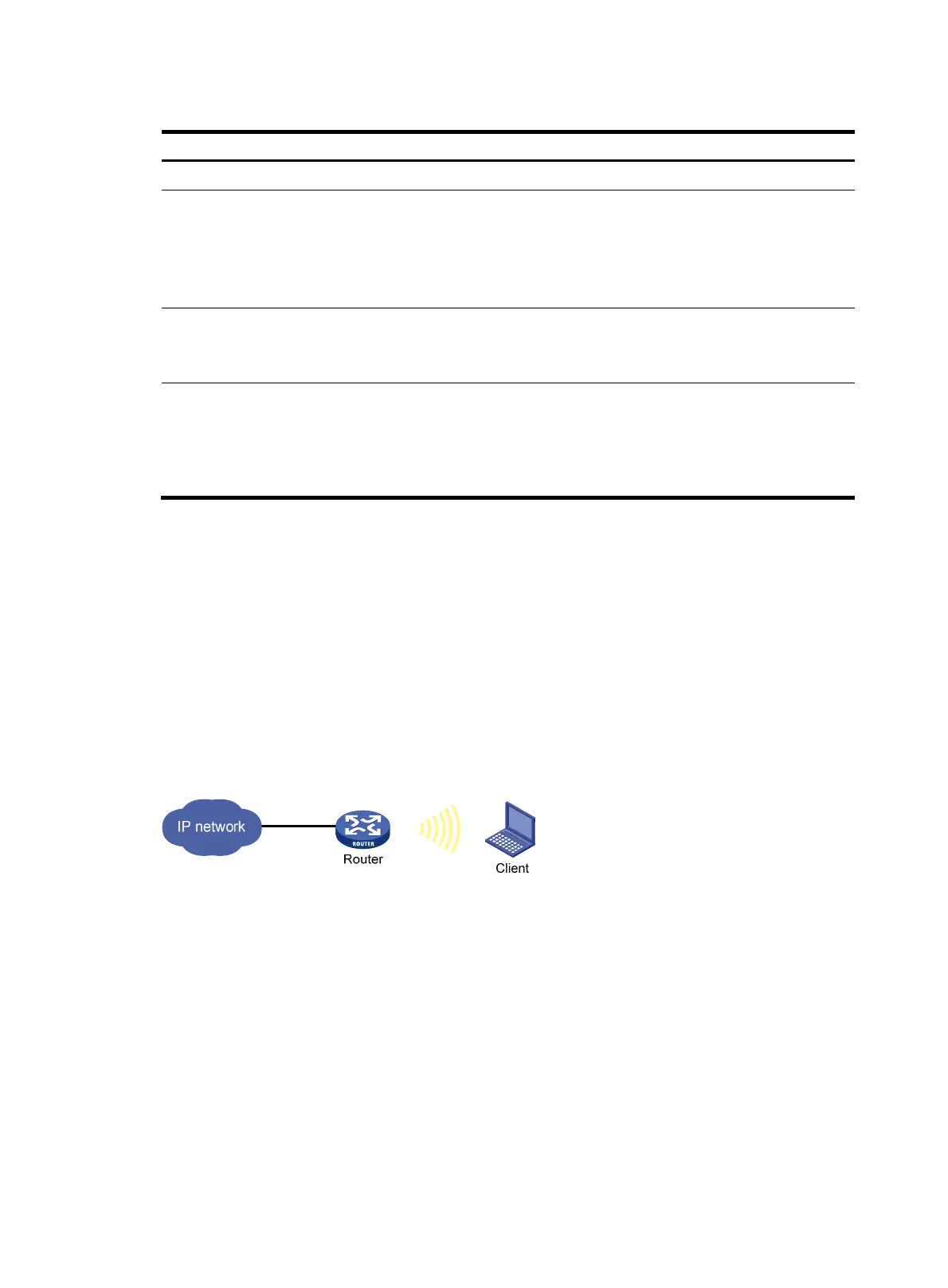

Figure 122 Network diagram
Configuration procedure
1. Configure the access service:
For related configurations, see "Wireless access service c
onfiguration examples." You can strictly
follow the steps in the related configuration example to configure the wireless service.
2. Configure wireless QoS:
a. Select Interface Setup > Wireless > Wireless QoS from the navigation tree.
b. Click the QoS Service tab. Make sure WMM is enabled.
