Item Descri
p
tion
End IP
The number of addresses between the start IP address and end IP address
must not exceed 1024. If you specify only the start IP address, the IP address
pool will contain only one IP address, namely, the start IP address.
Displaying L2TP tunnel information
1. Select VPN > L2TP > Tunnel Info from the navigation tree to enter the L2TP tunnel information page.

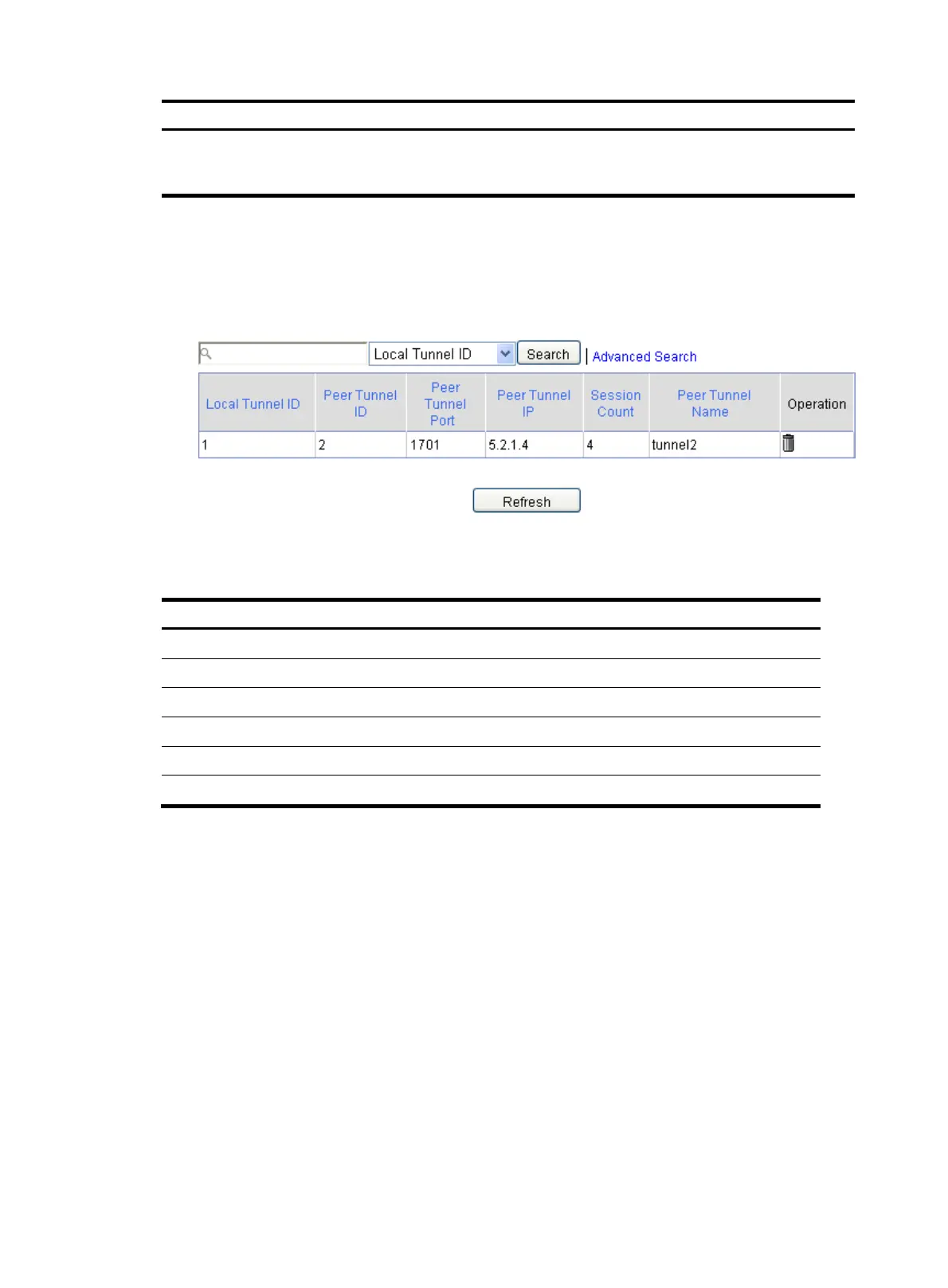

Figure 367 L2TP tunnel information
2. View the L2TP tunnel information.
Table 162 Field description
Field Descri
p
tion
Local Tunnel ID Local ID of the tunnel.
Peer Tunnel ID Peer ID of the tunnel.
Peer Tunnel Port Peer port of the tunnel.
Peer Tunnel IP Peer IP address of the tunnel.
Session Count Number of sessions on the tunnel.
Peer Tunnel Name Peer name of the tunnel.
Client-initiated VPN configuration example
Network requirements
As shown in Figure 368, a VPN user accesses the corporate headquarters as follows:
1. The user first connects to the Internet, and then initiates a tunneling request to the LNS directly.
2. After the LNS accepts the connection request, an L2TP tunnel is set up between the LNS and the
VPN user.
3. The VPN user communicates with the headquarters over the tunnel.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
