Login control configuration example
Network requirements
As shown in Figure 336, configure login control rules so Host A cannot Telnet to Router, and Host B
cannot access Router through the Web.

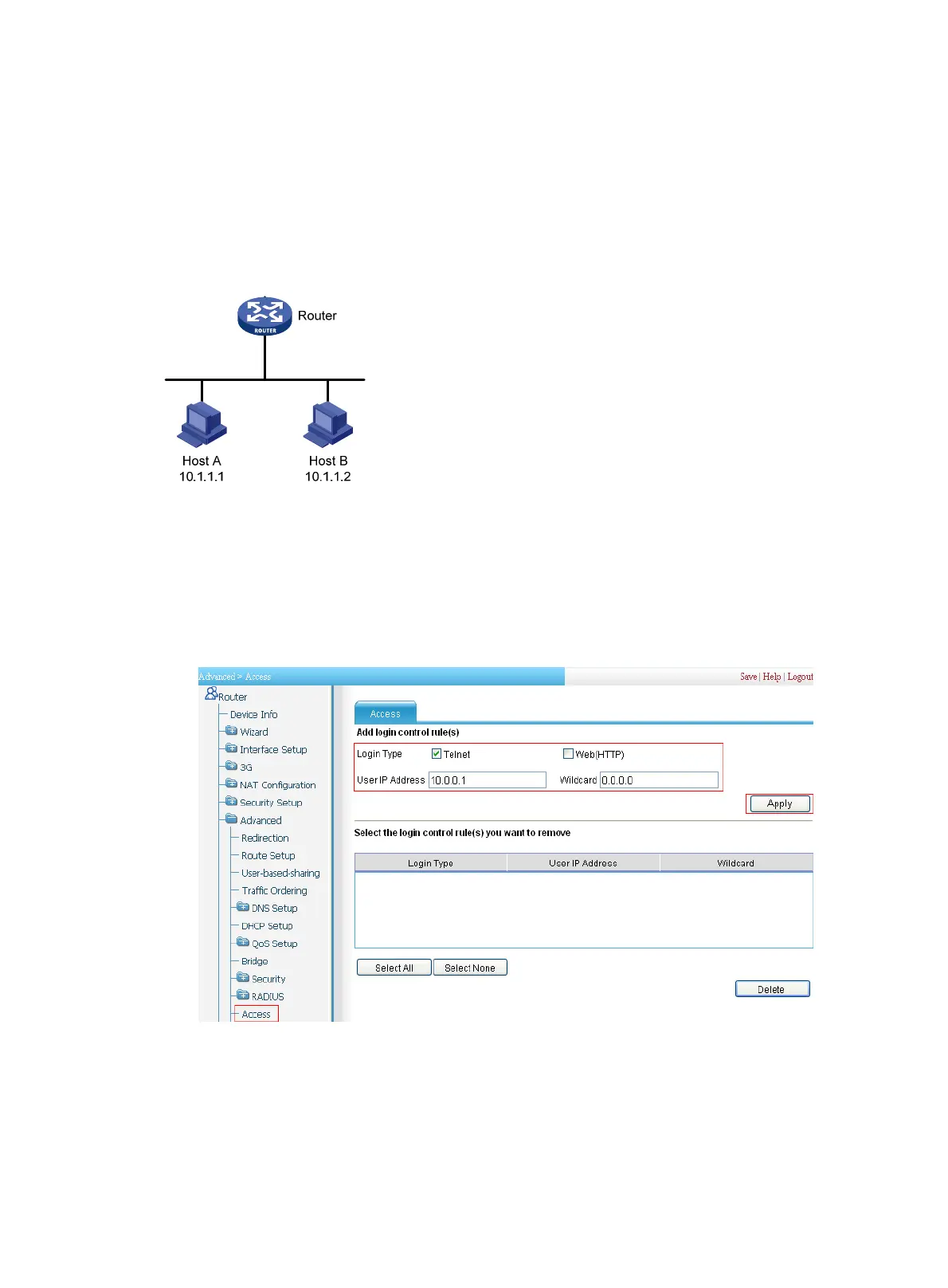

Figure 336 Network diagram
Configuring a login control rule so Host A cannot Telnet to
Router
1. Select Advanced > Access from the navigation tree.
Figure 337 Configuring a login control rule so Host A cannot Telnet to Router
2. Select Telnet as the login type to be restricted.
3. Enter the user IP address 10.0.0.1.
4. Enter the wildcard 0.0.0.0.
5. Click Apply.
A dialog box appears, asking you whether you want to continue your operation.
