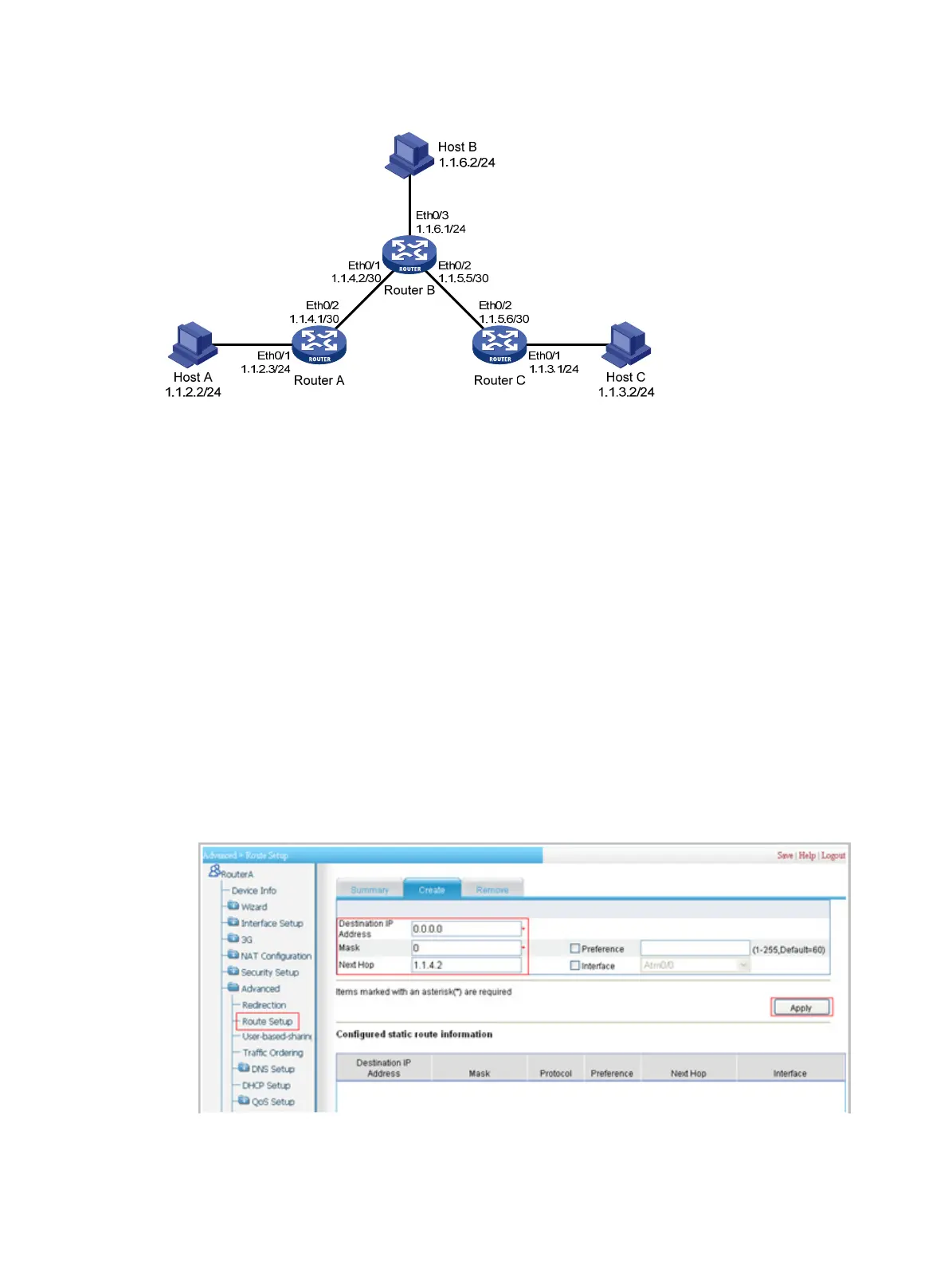

Figure 186 Network diagram
Configuration considerations
1. Configure a default route with Router B as the next hop on Router A.
2. On Router B, configure one static route with Router A as the next hop and the other with Router C
as the next hop.
3. Configure a default route with Router B as the next hop on Router C.
Configuration procedure
1. Configure the IP addresses of the interfaces. (Details not shown.)
2. Configure a default route on Router A:
a. Select Advanced > Route Setup from the navigation tree of Router A.
b. Click the Create tab.
c. Enter 0.0.0.0 for Destination IP Address, 0 for Mask, and 1.1.4.2 for Next Hop.
d. Click Apply.
Figure 187 Configuring a default route on Router A
The newly created static route is listed at the lower part of the page.
3. Configure two static routes on Router B:
