HP MSR SERIES User Manual

364
Enabling L2TP
1. Select VPN > L2TP > L2TP Config from the navigation tree to enter the L2TP configuration page, as
shown in Figure 363.
2. On the u
pper part of the page, select the box before Enable L2TP.
3. Click Apply.

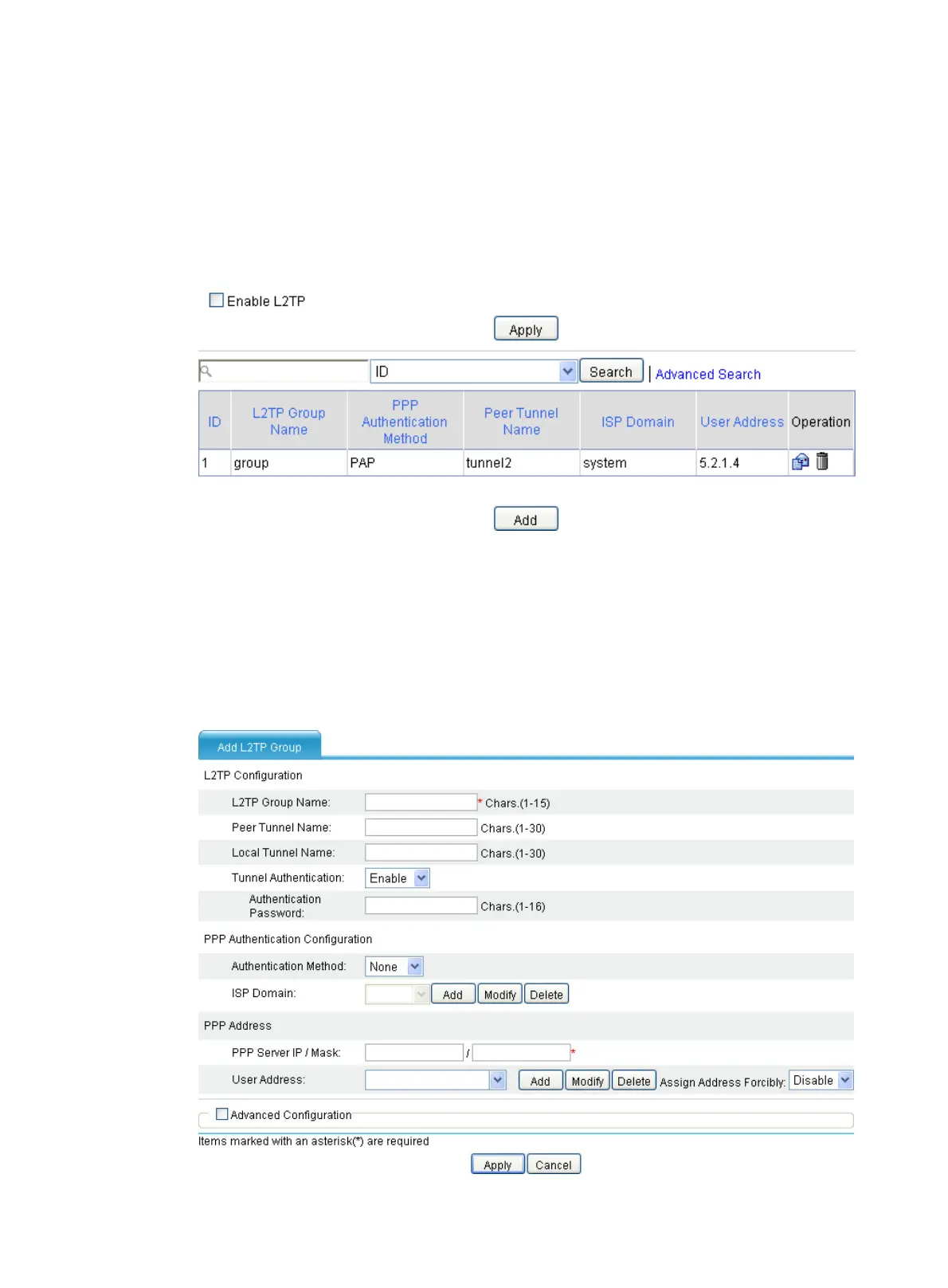

Figure 363 L2TP configuration page
Adding an L2TP group
1. Select VPN > L2TP > L2TP Config from the navigation tree to enter the L2TP configuration page, as
shown in Figure 363.
2. On the lower part of the page, click Add to add an L2T
P group.
Figure 364 Adding an L2TP group

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
