c. Set the revision level to 0.
d. Select the Manual radio button.
e. Select 1 from the Instance list.
f. Set the VLAN ID to 10.
g. Click Apply to map VLAN 10 to MSTI 1, and add the VLAN-to-instance mapping entry to the
VLAN-to-instance mapping list.
h. Repeat the preceding steps to map VLAN 30 to MSTI 3 and VLAN 40 to MSTI 4, and then add
the VLAN-to-instance mapping entries to the VLAN-to-instance mapping list.
i. Click Activate to end the operation.

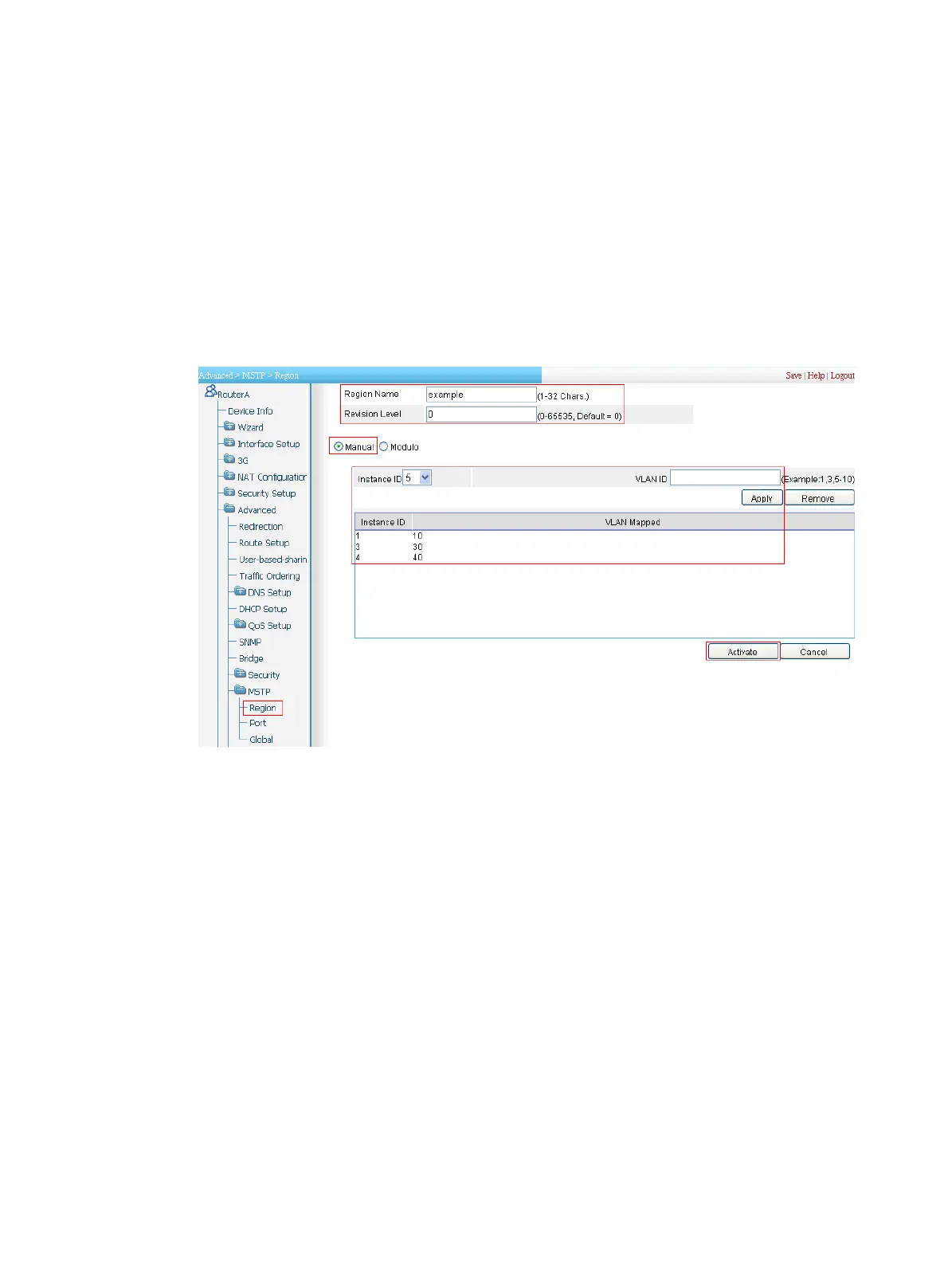

Figure 322 Configuring an MST region on Router A
# Enable MSTP globally and configure the current device as the root bridge of MSTI 1:
a. From the navigation tree, select Advanced > MSTP > Global.
b. On the page that appears (see Figure 323), select Enable from the E
nable STP Globally list.
c. Select MSTP from the Mode list.
d. Select the box in front of Instance.
e. Set the Instance ID field to 1.
f. Set the Root Type field to Primary.
g. Click Apply to submit the settings.
