471

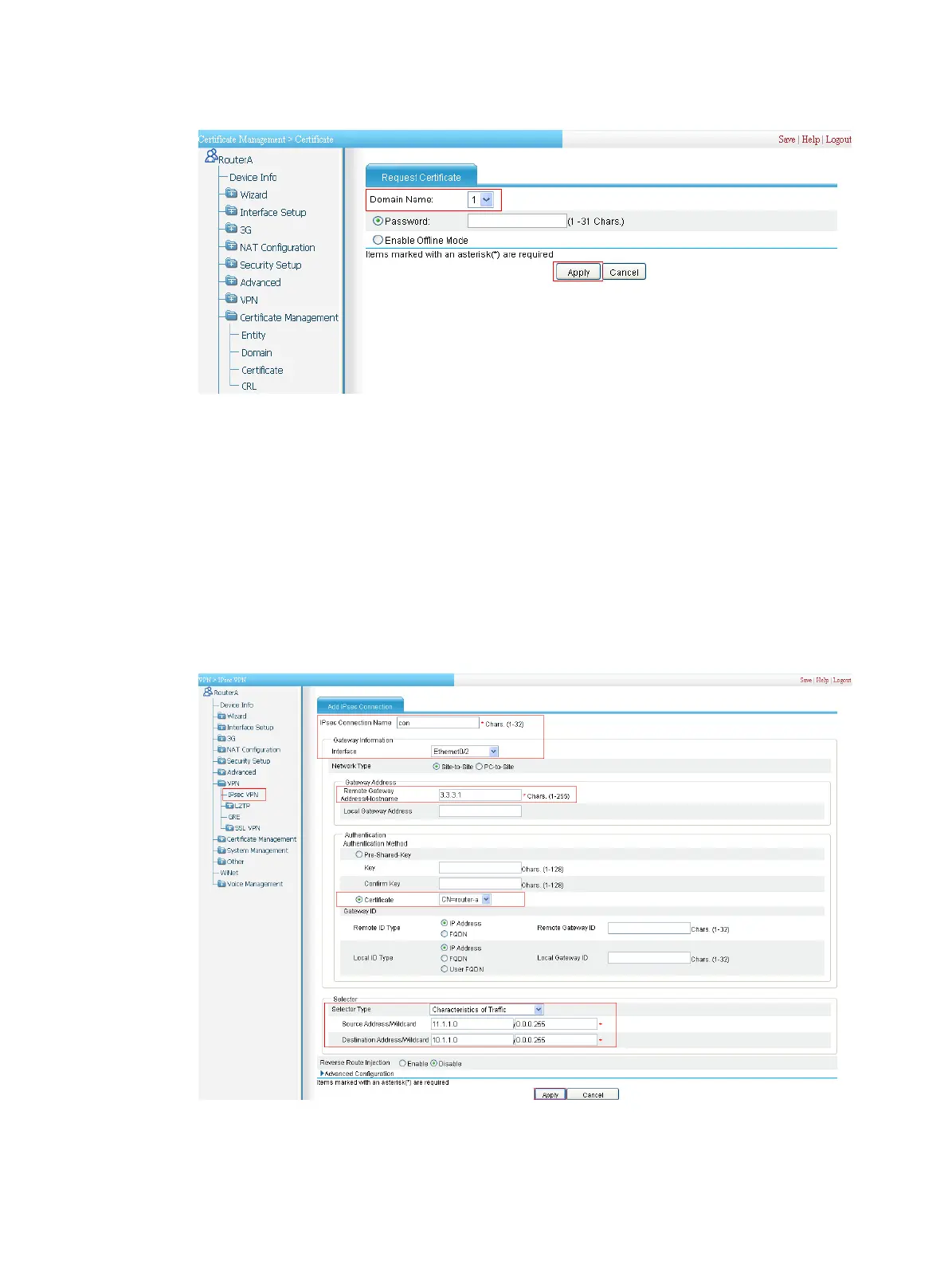

Figure 500 Requesting a certificate

6. Configure an IPsec connection:

a. From the navigation tree, select VPN > IPsec VPN.

b. Click Add.

c. Enter con as the IPsec connection name, select Ethernet0/2 as the gateway interface, enter

3.3.3.1 as the remote gateway IP address, select Certificate as the authentication method,

select CN=router-a for the certificate, select Characteristics of Traffic as the selector type, enter

11.1.1.0/0.0.0.255 as the source IP address/wildcard, and enter 10.1.1.0/0.0.0.255 as the

destination IP address/wildcard.

d. Click Apply.

Figure 501 Configuring an IPsec connection

Configuring Router B

The configuration pages for Router B are similar to those of Router A. (Details not shown)
