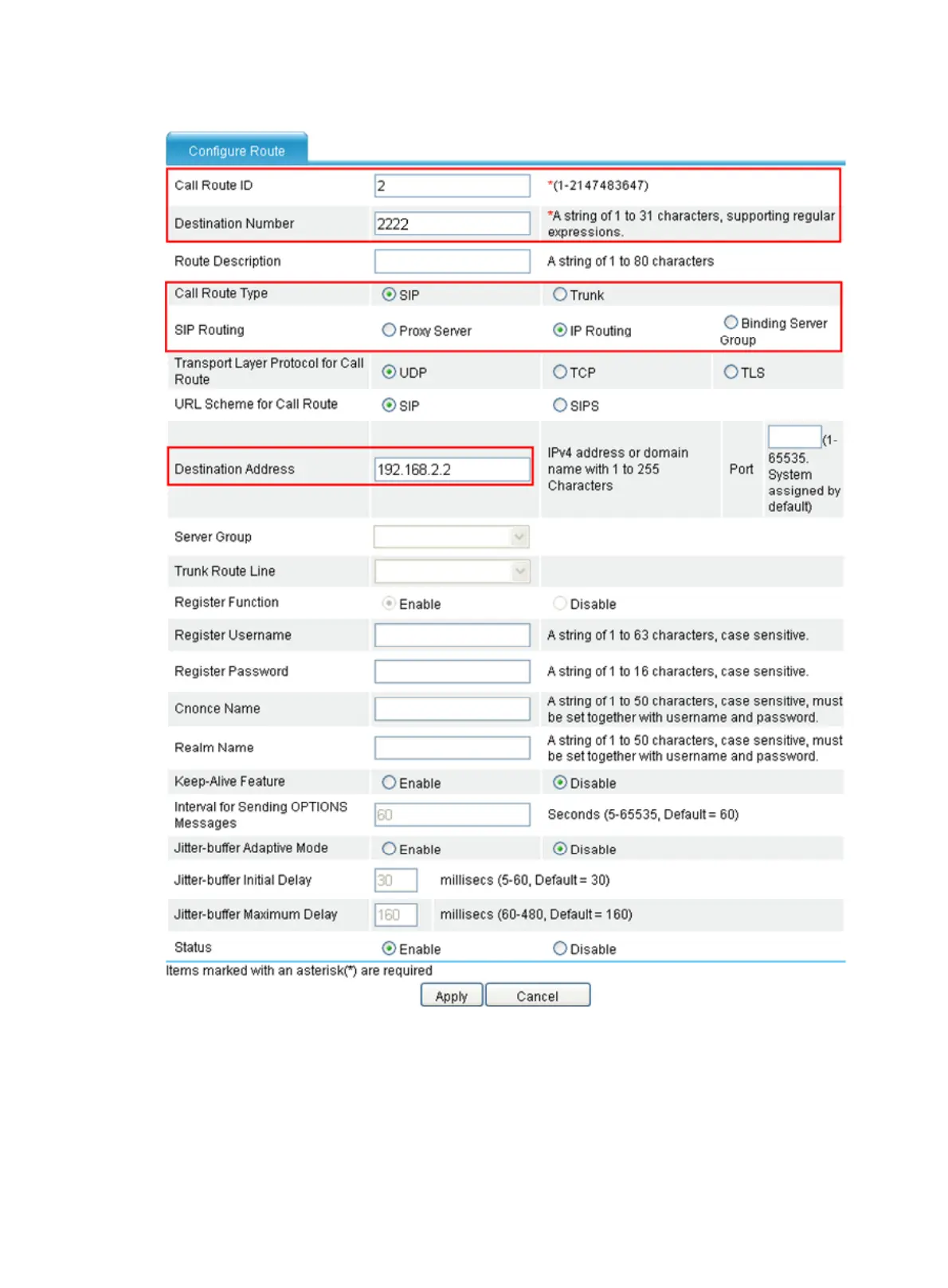

Figure 561 Creating call route 2222

6. Enter 2 for Call Route ID.

7. Enter 2222 for Destination Number.

8. Select IP Routing for SIP Routing, and type 192.168.2.2 for Destination Address.

9. Click Apply.
