538

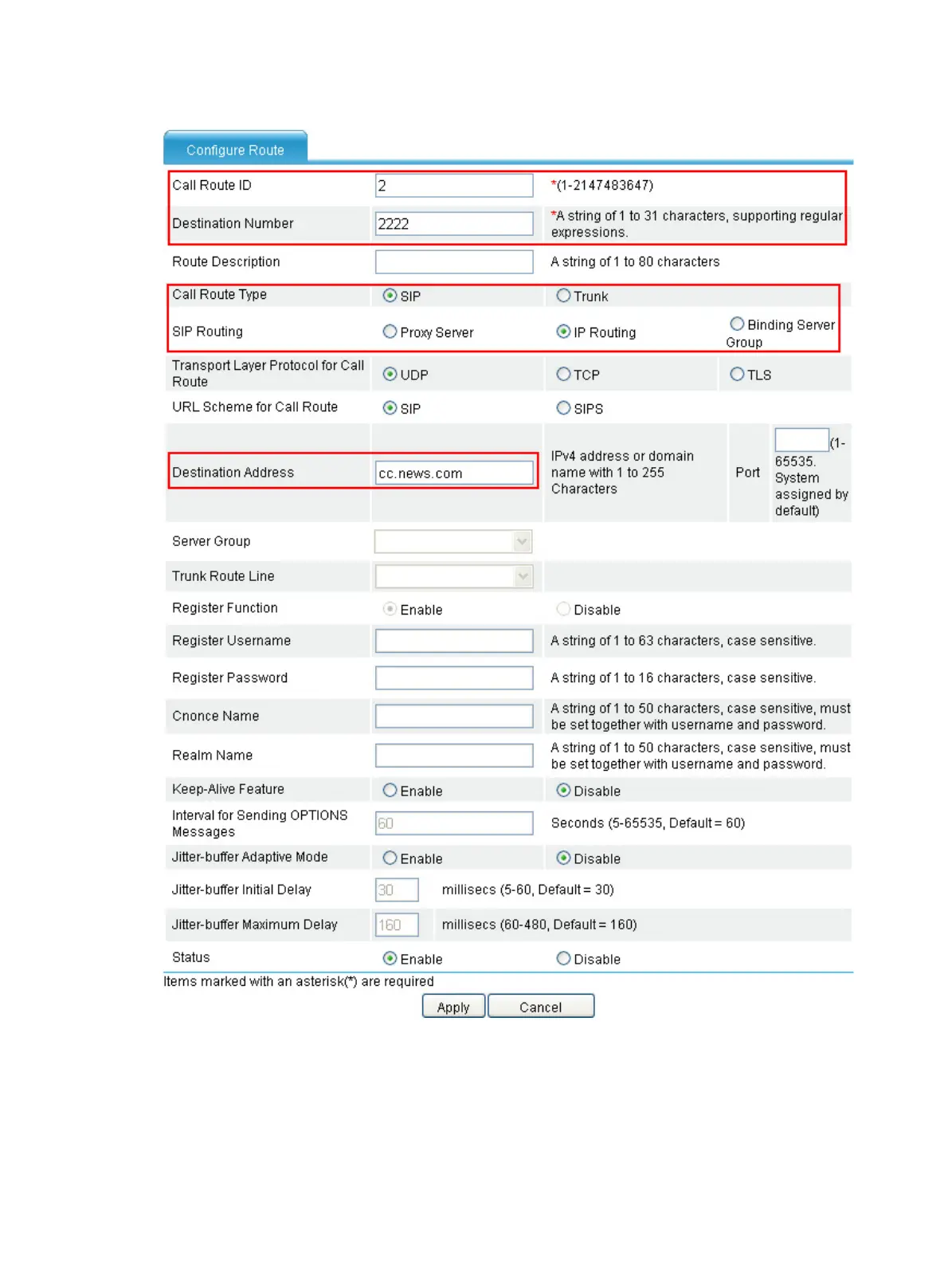

Figure 566 Creating call route 2222

7. Enter 2 for Call Route ID.

8. Enter 2222 for Destination Number.

9. Select IP Routing for SIP Routing, and type cc.news.com for Destination Address.

10. Click Apply.
