HP MSR SERIES User Manual

569

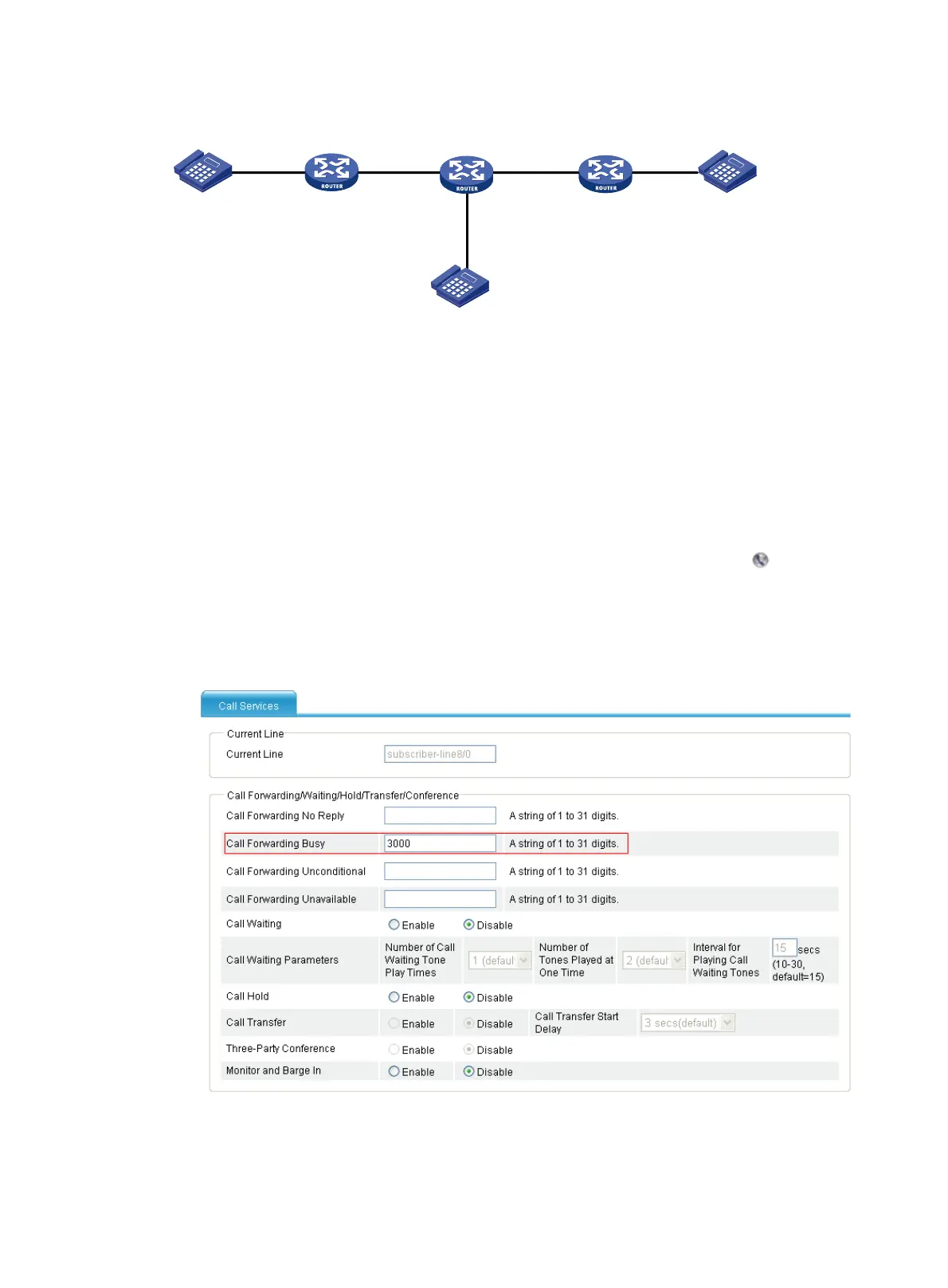

Figure 589 Network diagram
Configuration procedure
Before performing the following configuration, make sure Router A, Router B and Router C are reachable
to each other.
1. Complete basic voice call configurations: complete basic voice call configurations on Router A,
Router B, and Router C.
2. Configure call forwarding:
Configure call forwarding on Router B.
a. Select Voice Management > Local Number from the navigation tree, click the icon of local
number 2000 in the local number list to access the call services configuration page.
b. Enter 3000 for The Forwarded-to Number for Call Forwarding Busy.
c. Click Apply.
Figure 590 Configuring call forwarding
1000
Eth1/1
10.1.1.1/24
3000
Router A
Eth1/1
20.1.1.2/24
2000
Eth1/2
10.1.1.2/24
Eth1/1
20.1.1.1/24
Router B Router C
Telephone B
Telephone C
Telephone A
