579

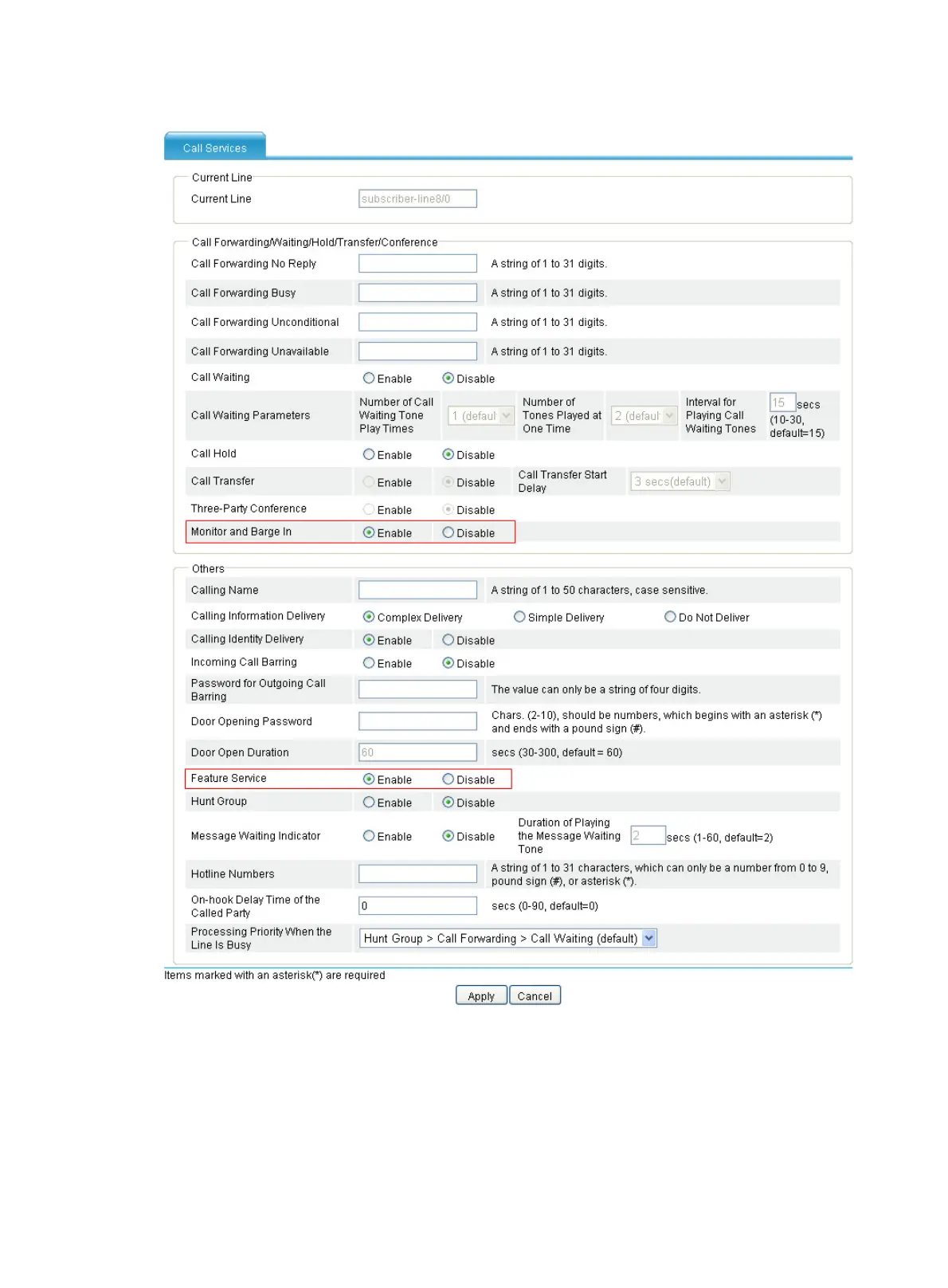

Figure 603 Enabling the feature service and the silent monitor and barge in function

6. Select Enable for Monitor and Barge In.

7. Select Enable for Feature Service.

8. Click Apply.

Configure Router B

# Configure a local number and call routes.
