702

# Configure an ISDN PRI group.

Select Voice Management > Digital Link Management from the navigation tree, and then click the

icon of E1 1/1 to access the E1 parameters configuration page.

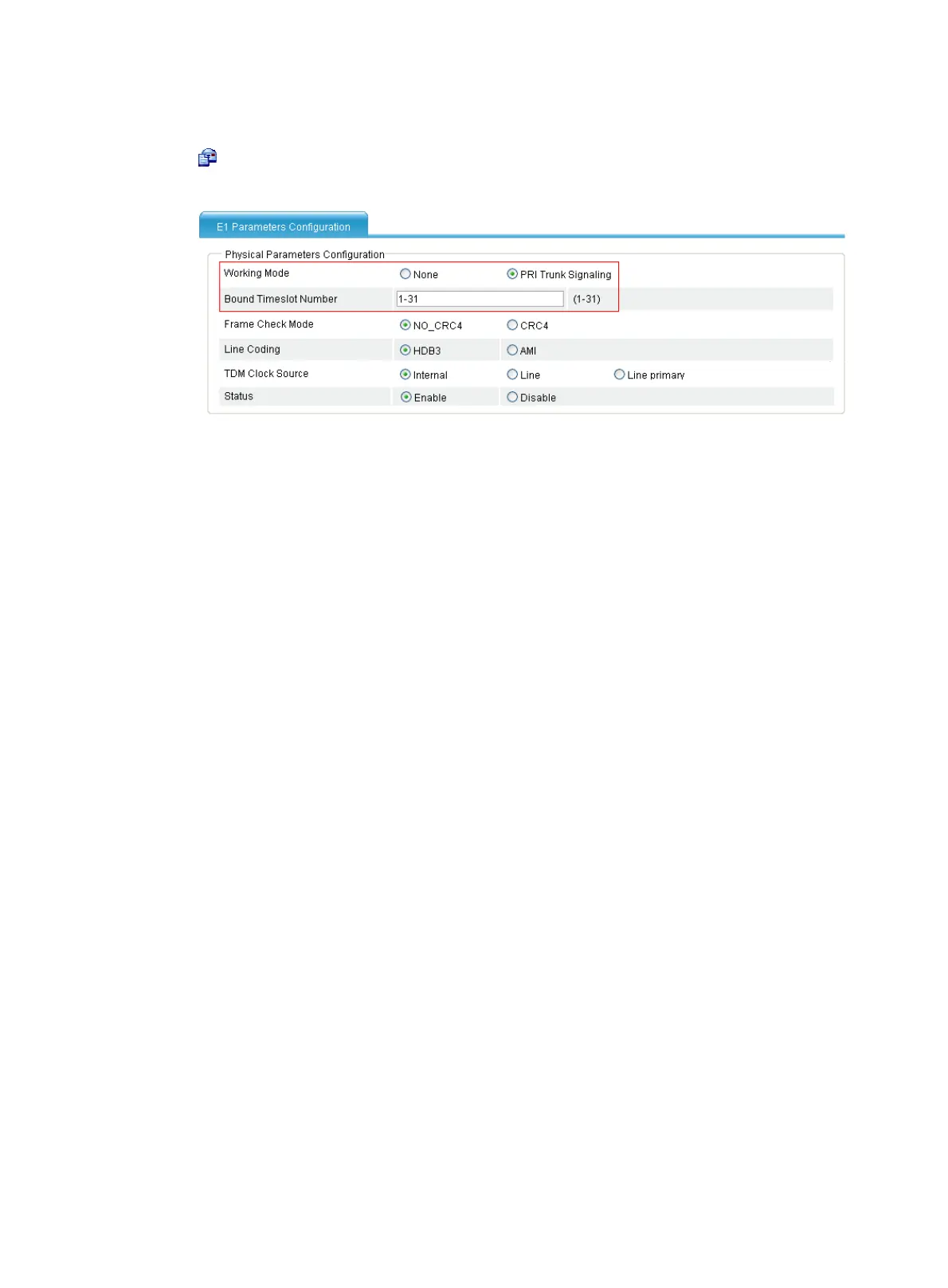

Figure 725 E1 parameters configuration page

a. Select the PRI Trunk Signaling option. For other options, use the default settings.

b. Click Apply.

# Configure call routes.

c. Configure a call route in the call route configuration page: The call route ID is 2001, the

destination number is 07552001, and the trunk route line is 1/1:15. In addition, select the

Send All Digits of a Called Number option in the Called Number Sending Mode area if you

configure the advanced settings of this call route.

d. Configure a call route in the call route configuration page: The call route ID is 2002, the

destination number is 07552002, and the trunk route line is 1/1:15. In addition, select the

Send All Digits of a Called Number option in the Called Number Sending Mode area when you

configure the advanced settings of this call route.

e. Configure a call route in the call route configuration page: The call route ID is 010, the

destination number is 010...., the call route type is SIP, the SIP routing mode is IP routing, and

the destination address is 1.1.1.1.

Verifying the configuration

• Telephones in City A and City B can communicate with each other.

• Select Voice Management > Statistics > Call Statistics from the navigation tree to access the Active

Call Summary page, and you can view the statistics of active calls.

• Select Voice Management > Digital Link Management from the navigation tree, and then click the

name of the target digital link line 1/1:15 to access the page displaying the link state.
