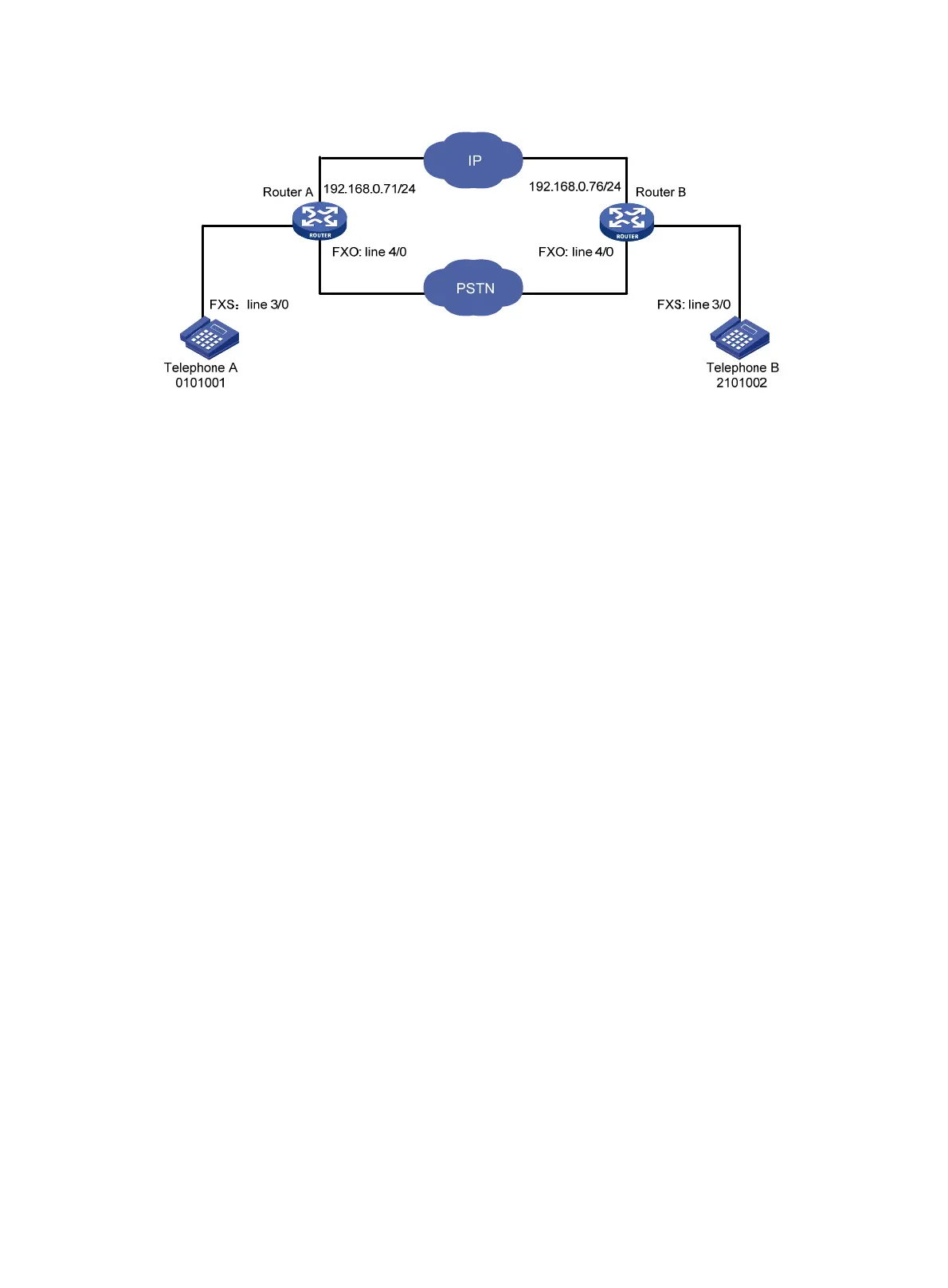

Figure 738 Network diagram

Configuration considerations

• Configure one-to-one binding between FXS and FXO voice subscriber lines.

• When the IP network is available, the VoIP entity is preferably used to make calls over the IP

network.

• When the IP network is unavailable, the POTS entity is used to make calls through the bound FXO

voice subscriber line over the PSTN.

Configuration procedure

Router A and Router B are routable to each other.

The configuration of interface IP addresses is not shown.

1. Configure Router A:

# Configure a local number and two call routes.

a. Configure a call route in the call route configuration page: The call route ID is 210, the

destination number is 210…., and the destination address is 192.168.0.76.

b. Configure a local number in the local number configuration page: The number ID is 0101001,

the number is 0101001, and the bound line is 3/0.

c. Configure the backup call route 211 for the FXO line in the call route configuration page: The

destination address is .T, call route type is Trunk, and the trunk route line is 4/0. In addition,

select the Send All Digits of a Called Number option in the Called Number Sending Mode area

when you configure the advanced settings of this call route.

# Configure call authority control.

d. Select Voice Management > Dial Plan > Call Authority Control from the navigation tree, and

then click Add to access the permitted call number group configuration page.
