738
5. Enter 3.1.1.1 for Remote Server IP Address.
6. Click Apply.
# Configure user 1000.
7. Select Voice Management > SIP Local Survival > User Management from the navigation tree, and
click Add to access the following page.

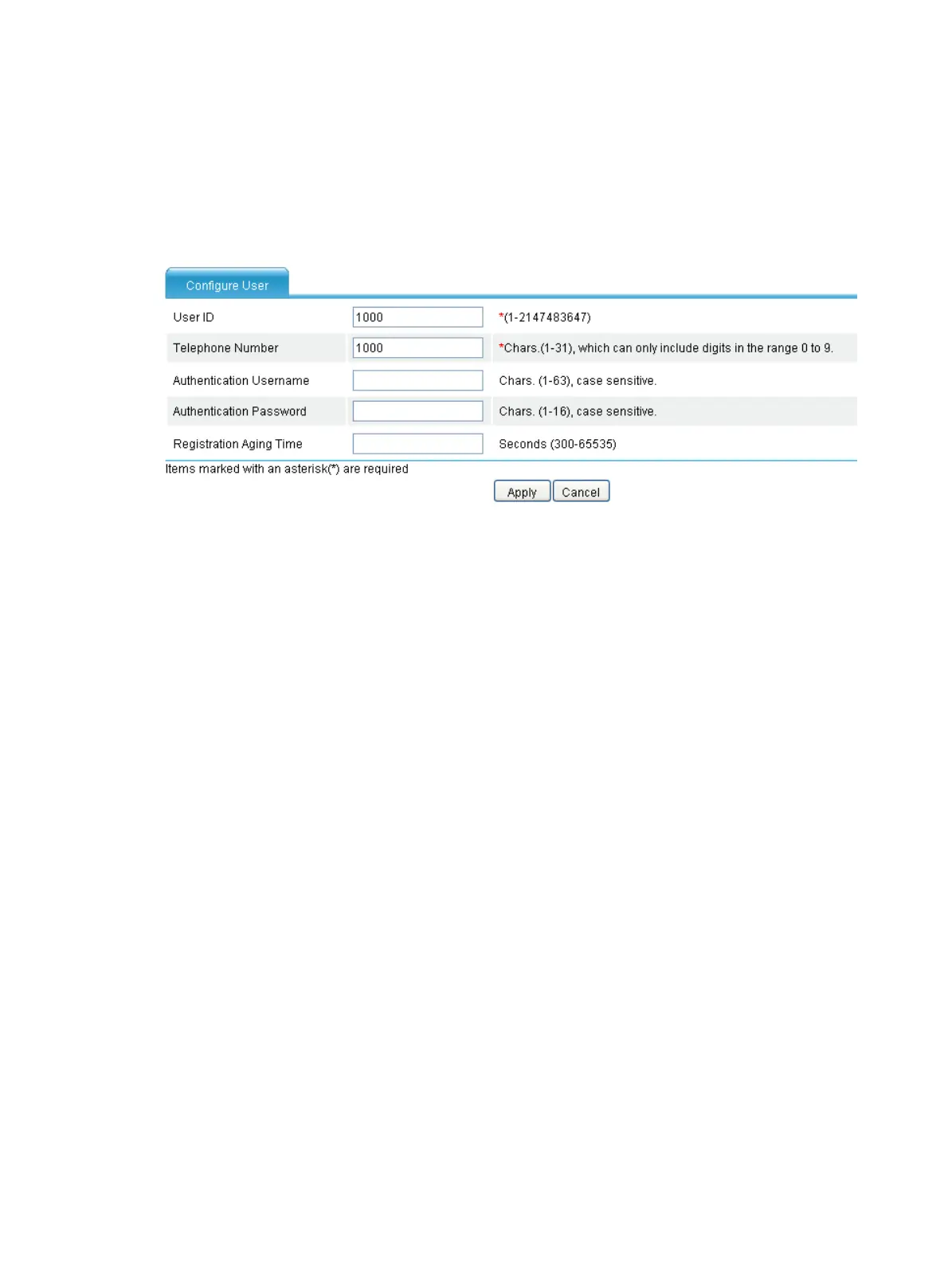

Figure 762 Configuring a user
8. Enter 1000 for User ID.
9. Enter 1000 for Telephone Number.
10. Click Apply.
# Configure user 5000 in the similar way.
Configuring Router A
1. Configure a local number in the local number configuration page: The ID is 1000, the number is
1000, and the bound line is line2/0.
2. Configure a call route to Router B in the call route configuration page: The ID is 5000, the
destination number is 5000, the routing type is SIP, and the SIP routing method is proxy server.
3. Configure SIP registration in the connection properties configuration page: Enable SIP registration,
and configure the main registrar’s IP address as 3.1.1.2, and the backup registrar’s IP address as
2.1.1.2.
Configuring Router B
1. Configure a local number in the local number configuration page: The ID is 5000, the number is
5000, and the bound line is line2/0.
2. Configure a call route to Router A in the call route configuration page: The ID is 1000, the
destination number is 1000, the routing type is SIP, and the SIP routing method is proxy server.
3. Configure SIP registration in the connection properties configuration page: Enable SIP registration,
and configure the main registrar’s IP address as 3.1.1.2, and the backup registrar’s IP address as
2.1.1.2
