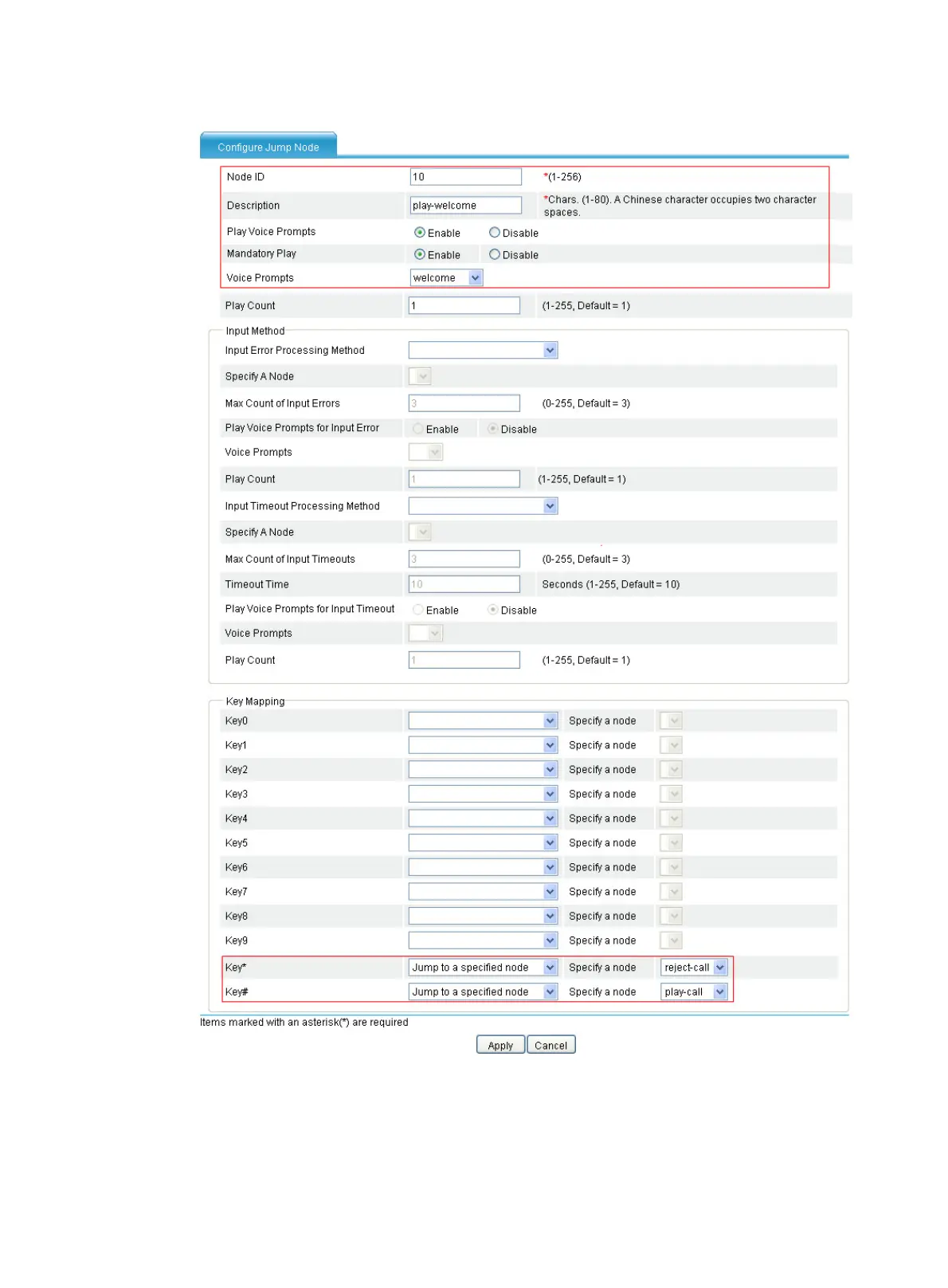

Figure 813 Configuring a jump node

a. Enter 10 for Node ID.

b. Enter play-welcome for Description.

c. Select Enable for both Play Voice Prompts and Mandatory Play.

d. Select welcome from the Voice Prompts list.
