107
Displaying RMON event logs
Select Device > RMON from the navigation tree and click the Log tab to enter the page, as shown in
Figure 87, which displays log information for all event entries.

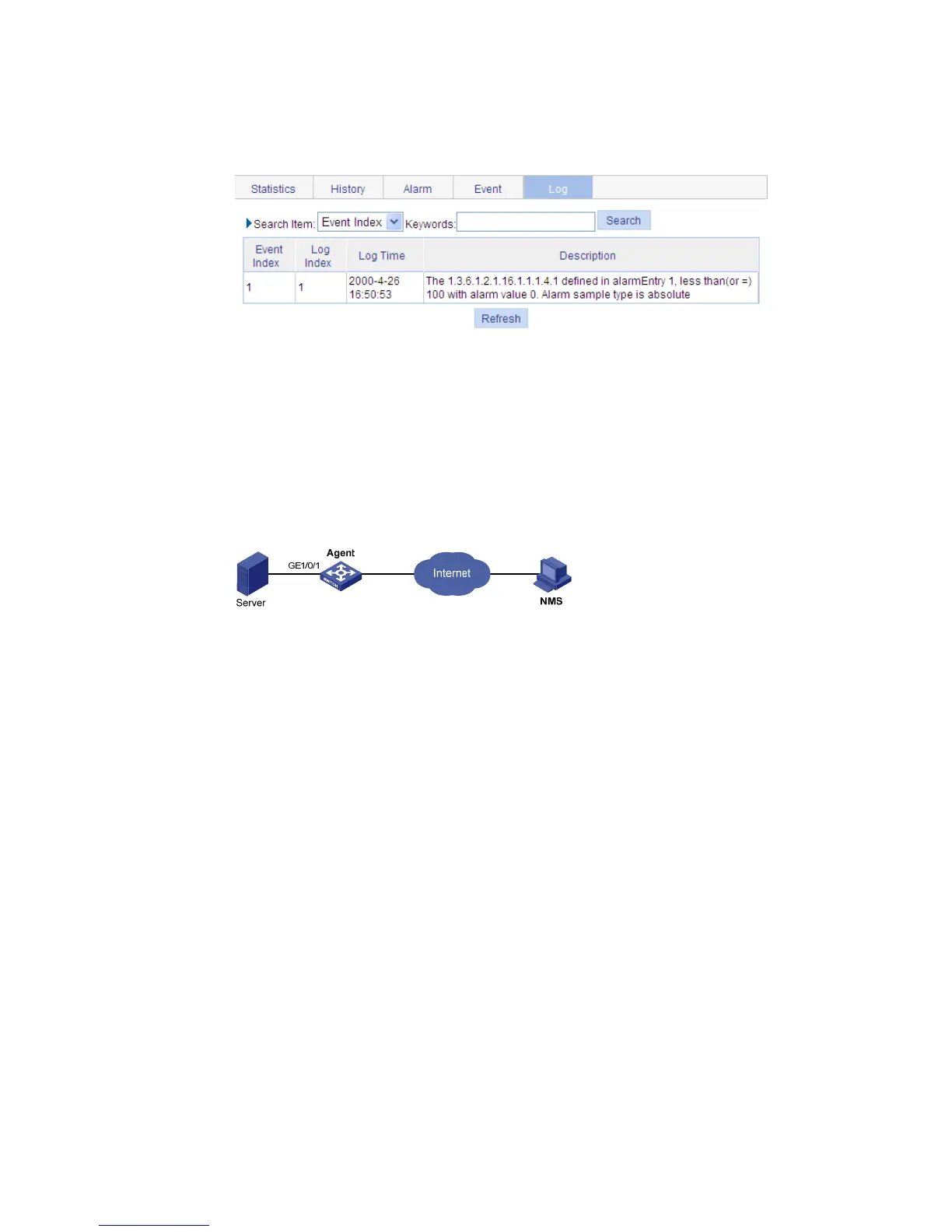

Figure 87 Log
Return to Display RMON running status.
RMON configuration example
Network requirements
As shown in Figure 88, Agent is connected to a remote NMS across the Internet. Create an entry in the
RMON Ethernet statistics table to gather statistics on Ethernet 1/0/1, and perform corresponding
configurations so that the system will log the event when the number of bytes received on the interface
exceed the specified threshold.
Figure 88 Network diagram for RMON
Configuration procedure
# Configure RMON to gather statistics for interface Ethernet 1/0/1.
ï‚· Select Device > RMON from the navigation tree to enter the page of the Statistics tab. Click Add.
