Displaying information about PSE and PoE ports
Select PoE > PoE from the navigation tree to enter the page of the Summary tab. The upper part of the
page displays the PSE summary. Click a port on the chassis front panel, and the configuration and power
information are displayed in the lower part of the page, as shown in Figure 426.

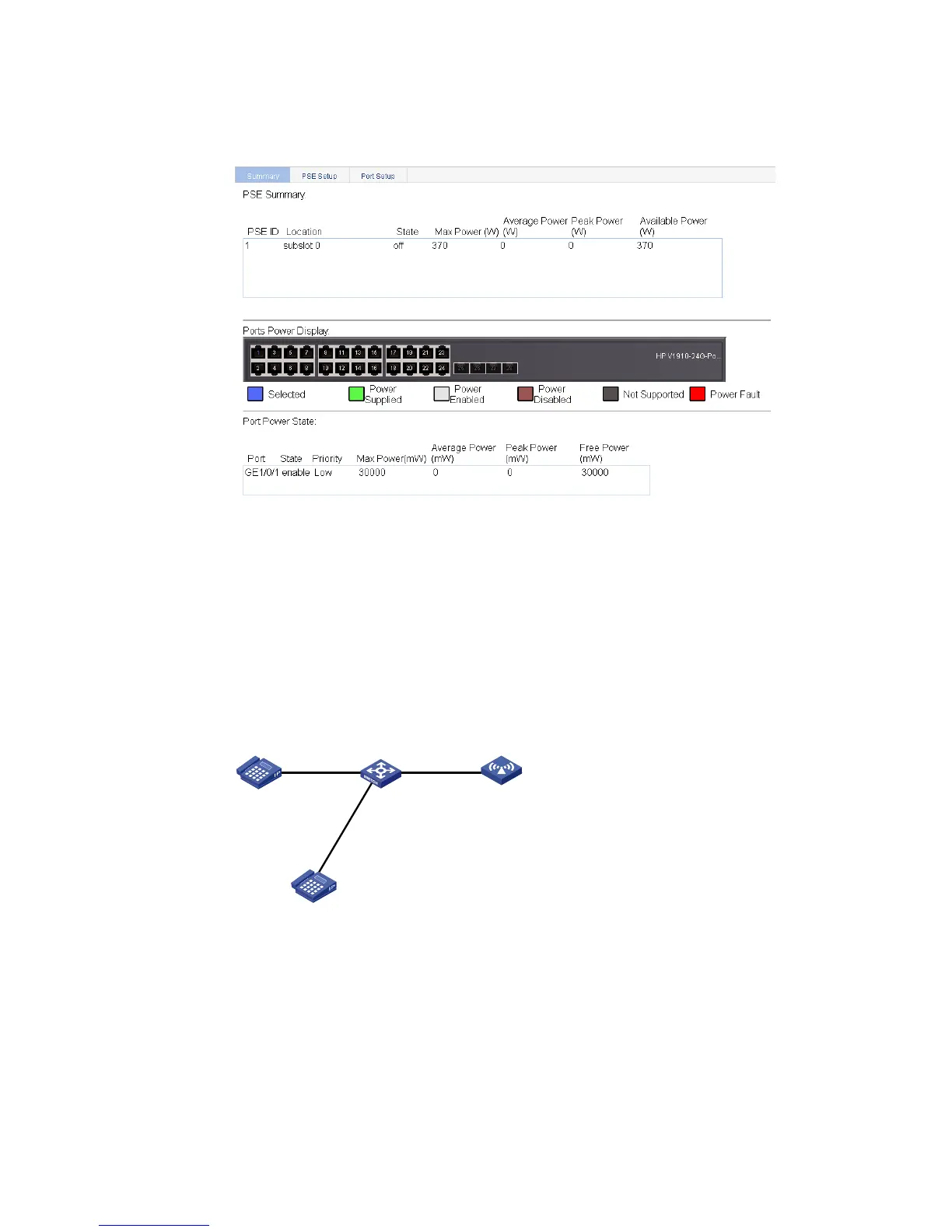

Figure 426 PoE summary (with GigabitEthernet 1/0/1 selected)
PoE configuration example
Network requirements
 As shown in Figure 427, GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 are connected to IP
telephones.
 GigabitEthernet 1/0/11 is connected to the AP whose maximum power does not exceed 9000
milliwatts.
 The IP telephones have a higher power supply priority than the AP, so the PSE supplies power to IP
telephones first when the PSE power is overloaded.
Figure 427 Network diagram for PoE
GE1/0/1
GE1/0/11
GE1/0/2
AP
PSE
