HP V1910 Switch Series User Manual

296

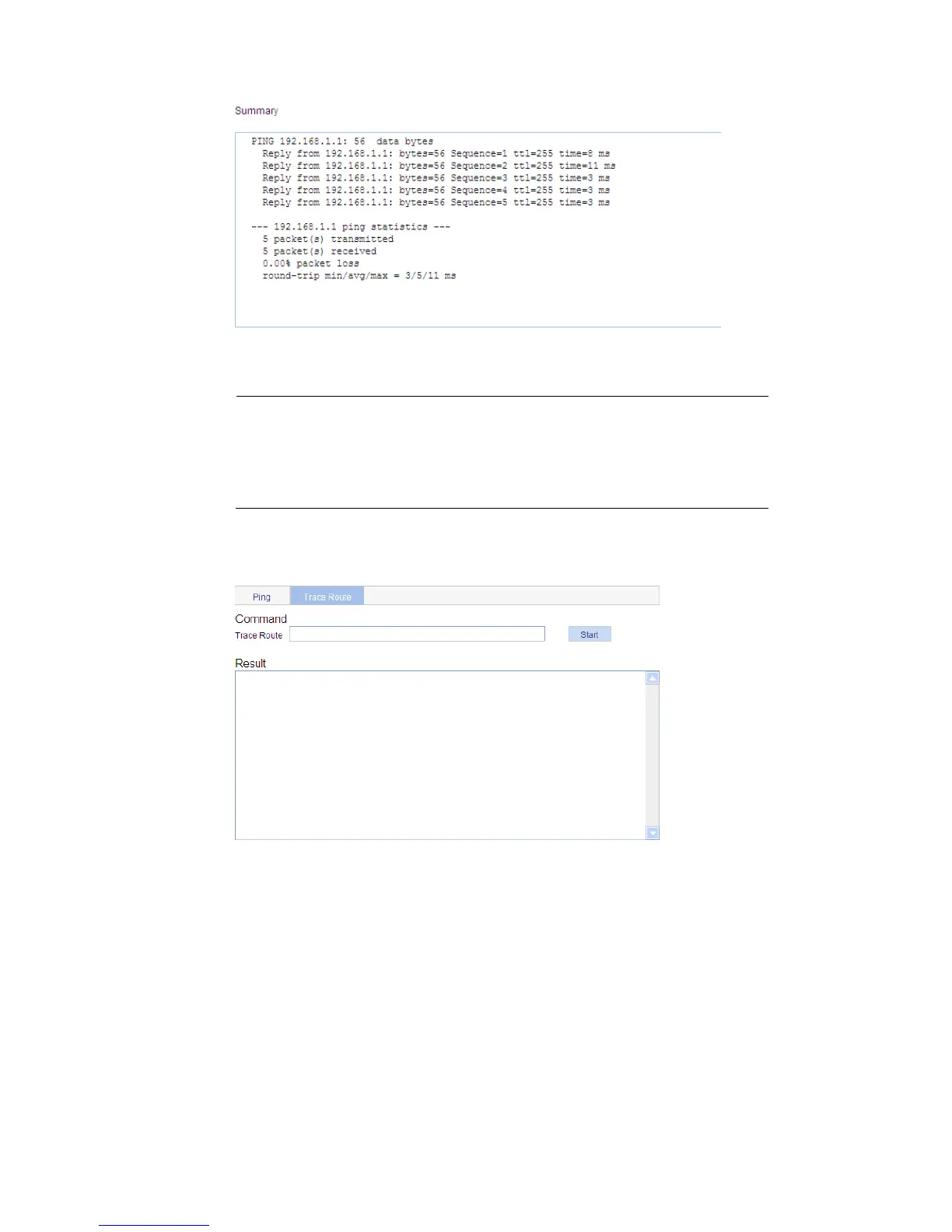

Figure 262 Ping operation result
Trace route operation
NOTE:
The web interface supports trace route on IPv4 addresses only.
Before performing the trace route operation on the Web interface, on the intermediate device execute
the ip ttl-expires enable command to enable the sending of ICMP timeout packets and on the
destination device execute the ip unreachables enable command to enable the sending of ICMP
destination unreachable packets.
Select Network > Diagnostic Tools from the navigation tree and then select the Trace Route tab to enter
the trace route configuration page, as shown in Figure 263.
Figure 263 Trace route configuration page
Type in the IP address or host name of the destination device in the Trace Route text box, and click Start
to execute the trace route command. You will see the output in the Summary area, as shown in Figure
264.
