HP V1910 Switch Series User Manual

439
ACL/QoS configuration examples
ACL/QoS configuration example
Network requirements
As shown in Figure 411, in the network, the FTP server at IP address 10.1.1.1/24 is connected to the Switch,
and the clients access the FTP server through GigabitEthernet 1/0/1 of the Switch.
Configure an ACL and a QoS policy as follows to prevent the hosts from accessing the FTP server from
8:00 to 18:00 every day:
1. Create an ACL to prohibit the hosts from accessing the FTP server from 8:00 to 18:00 every day.
2. Configure a QoS policy to drop the packets matching the ACL.
3. Apply the QoS policy in the inbound direction of GigabitEthernet 1/0/1.

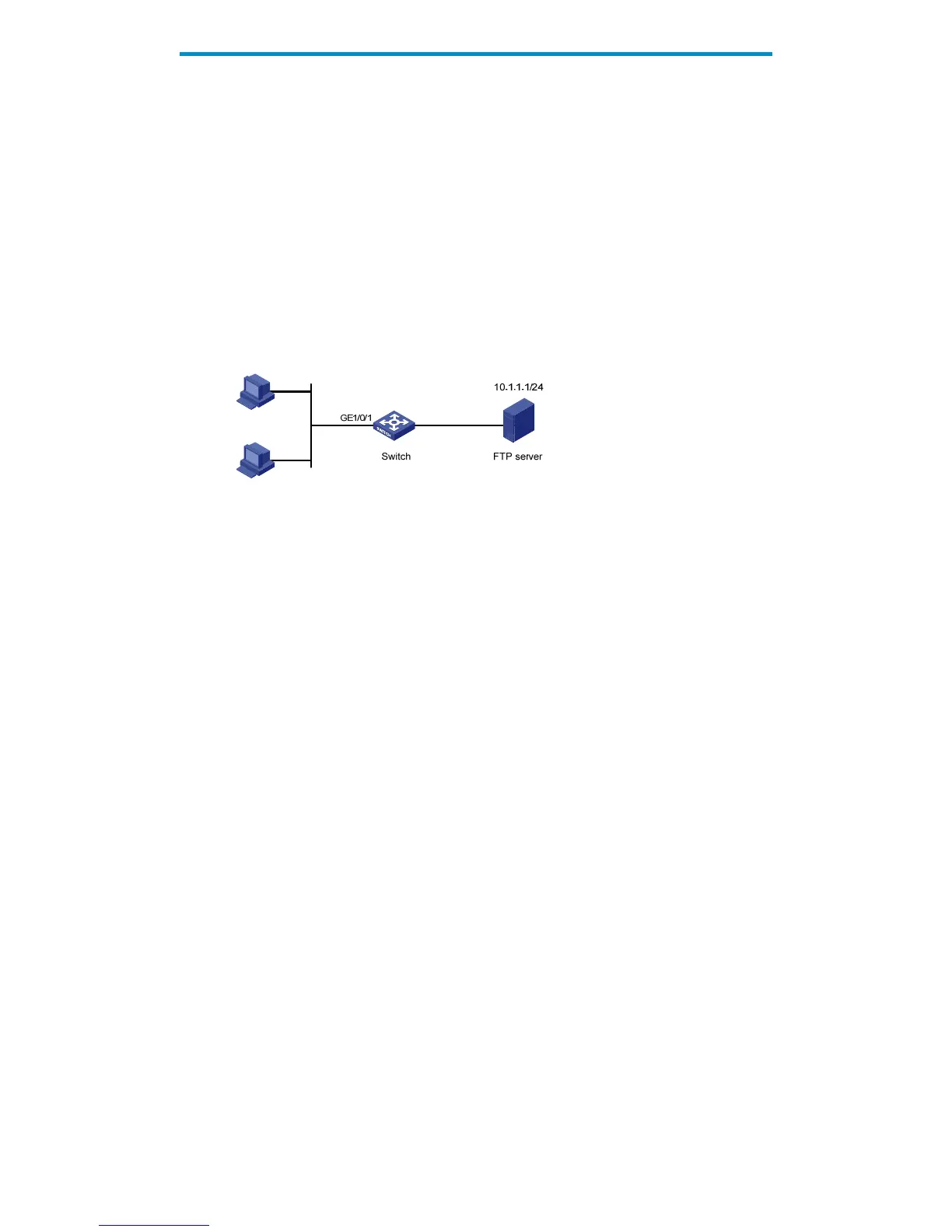

Figure 411 Network diagram for ACL/QoS configuration
Configuration procedure
1. Configure the time range
# Define a time range covering the time range from 8:00 to 18:00 every day.
 Select QoS > Time Range from the navigation tree and click Create.
