398
Authorized IP configuration example
Authorized IP configuration example
Network requirements
In Figure 378, configure Switch to deny Telnet and HTTP requests from Host A, and permit Telnet and
HTTP requests from Host B.

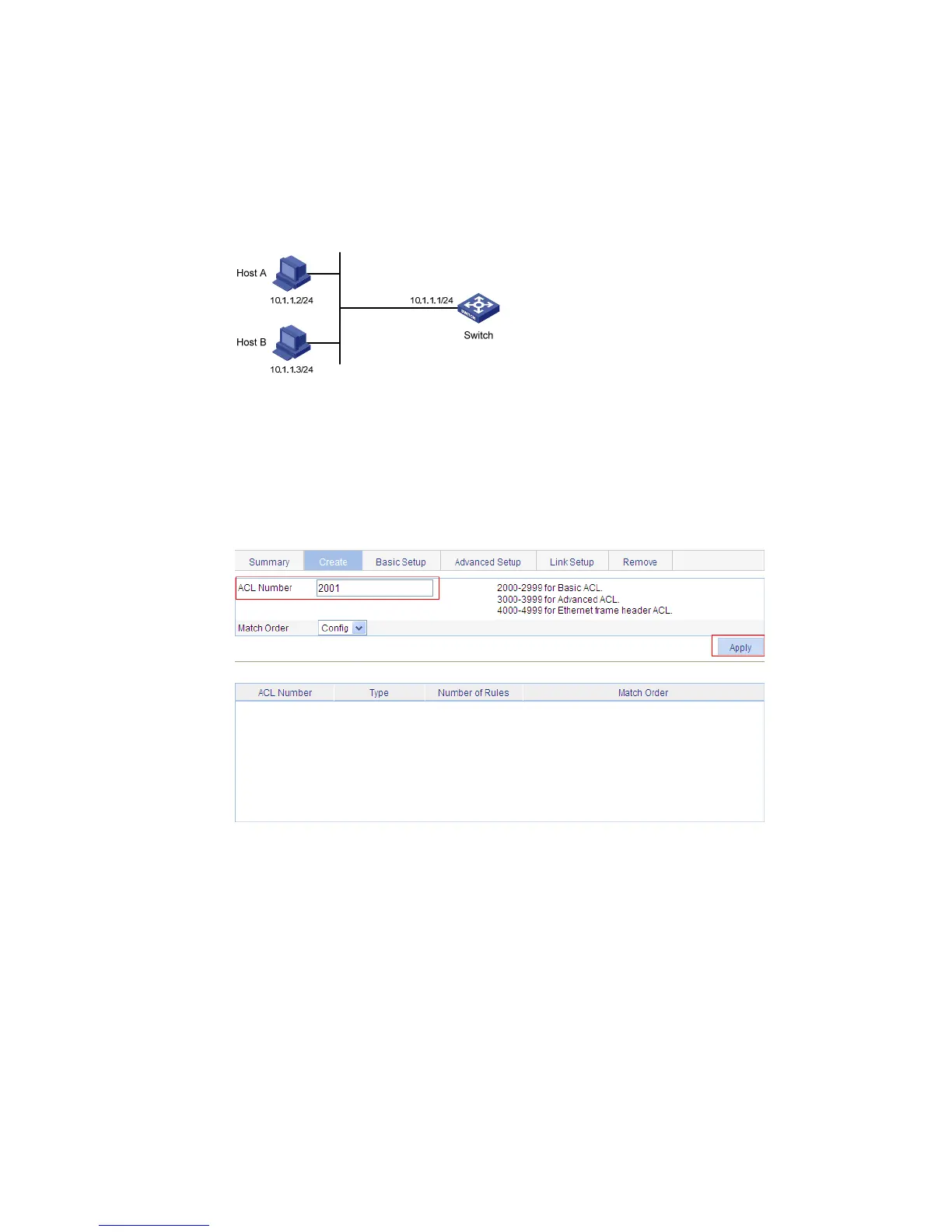

Figure 378 Network diagram for authorized IP
Configuration procedure
# Create an ACL.
ï‚· Select QoS > ACL IPv4 from the navigation tree and then click the Create tab to enter the ACL
configuration page shown in Figure 379.
ï‚· Type 2001 for ACL Number.
ï‚· Click Apply.
Figure 379 Create an ACL
# Configure an ACL rule to permit Host B.
ï‚· Click the Basic Setup tab to enter the page shown in Figure 380.
ï‚· Select 2001 from the Select Access Control List (ACL) drop-down list.
