HP V1910 Switch Series User Manual

399
 Select Permit from the Operation drop-down list.
 Select the Source IP Address check box and then type 10.1.1.3.
 Type 0.0.0.0 in the Source Wildcard text box.
 Click Add.

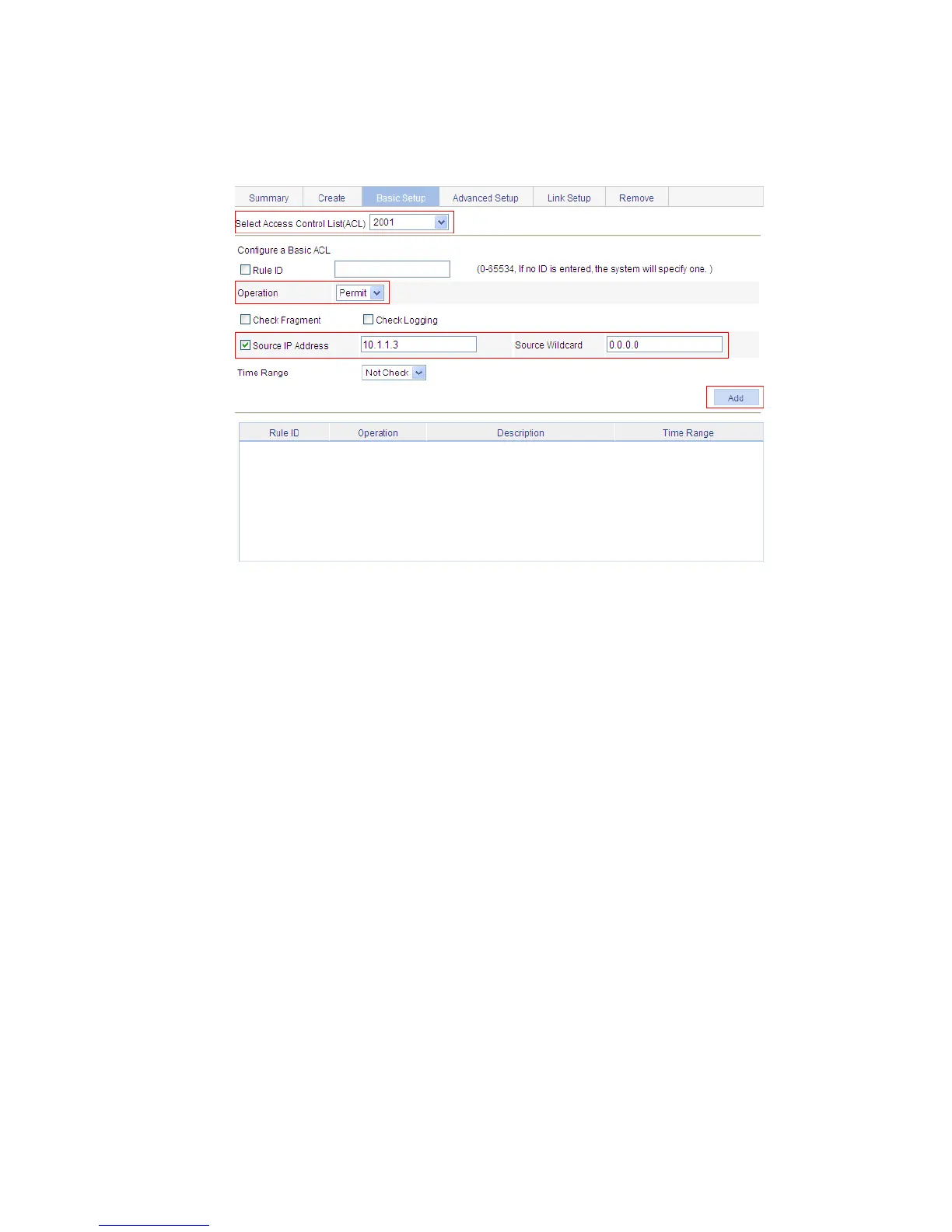

Figure 380 Configure an ACL rule to permit Host B
# Configure authorized IP.
 Select Security > Authorized IP from the navigation tree and then click the Setup tab to enter the
authorized IP configuration page shown in Figure 381.
 Select 2001 for IPv4 ACL in the Telnet field.
 Select 2001 for IPv4 ACL in the Web(HTTP) field.
 Click Apply.

HP V1910 Switch Series Specifications

General

Product Series	V1910
VLAN Support	Yes
QoS	Yes
Ports	8, 24, or 48 10/100/1000 ports
MAC Address Table Size	8K entries
Power Supply	Internal power supply
Jumbo Frame Support	Yes
Operating Humidity	10% to 90% (non-condensing)
