220

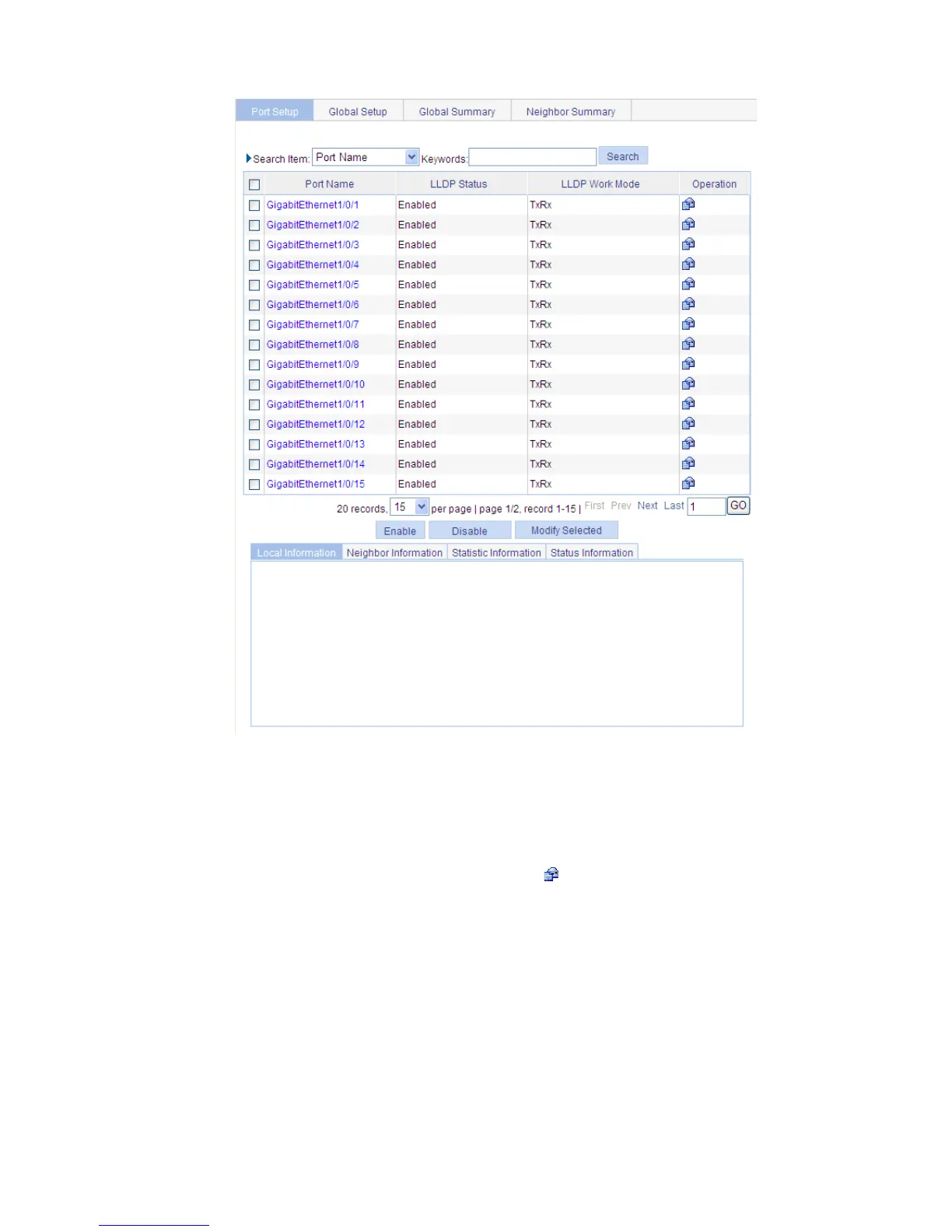

Figure 186 The Port Setup tab

Return to LLDP configuration task list.

Configuring LLDP settings on ports

Select Network > LLDP from the navigation tree to enter the Port Setup tab, as shown in Figure 186.

You can configure LLDP settings on ports individually or in batch.

 To configure LLDP settings on individual ports, click the

icon for the port you are configuring. On

the page displayed as shown in Figure 187, you can modify or view the LLDP settings of the port.
