HP V1910 Switch Series User Manual

295
6.
When the source device receives the port unreachable ICMP error message, it knows that the
packet has reached the destination, and it can get the addresses of all the Layer 3 devices involved
to get to the destination device (1.1.1.2, 1.1.2.2, 1.1.3.2).
Diagnostic tool operations
Ping operation
NOTE:
The web interface supports the IPv4 ping operations only.
Select Network > Diagnostic Tools from the navigation tree to enter the ping configuration page, as
shown in Figure 261.

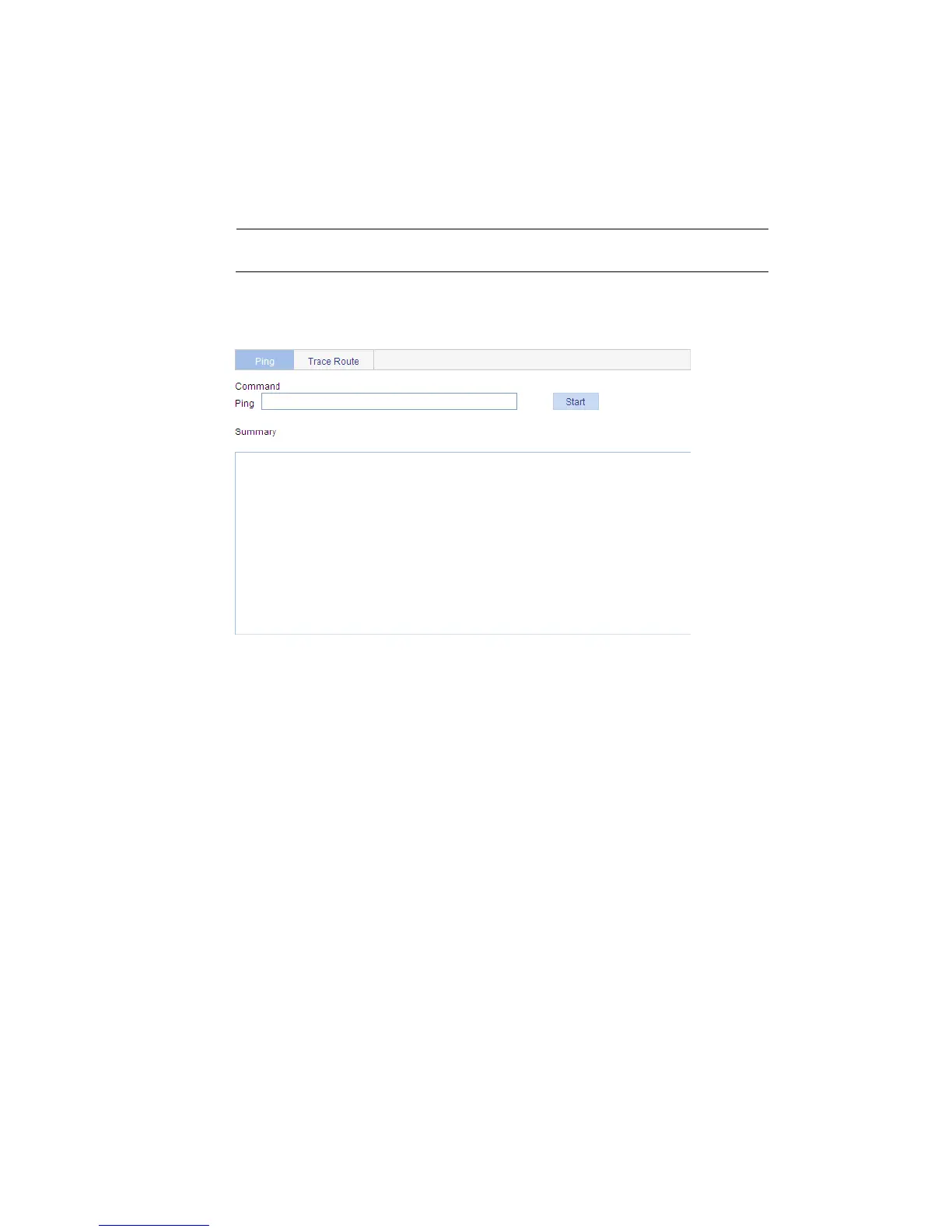

Figure 261 Ping configuration page
Type in the IPv4 address or the host name of the destination device in the text box, and click Start to
execute the ping command. You will see the result in the Summary area, as shown in Figure 262.

HP V1910 Switch Series Specifications

General

Product Series	V1910
VLAN Support	Yes
QoS	Yes
Ports	8, 24, or 48 10/100/1000 ports
MAC Address Table Size	8K entries
Power Supply	Internal power supply
Jumbo Frame Support	Yes
Operating Humidity	10% to 90% (non-condensing)
