HP V1910 Switch Series User Manual

198

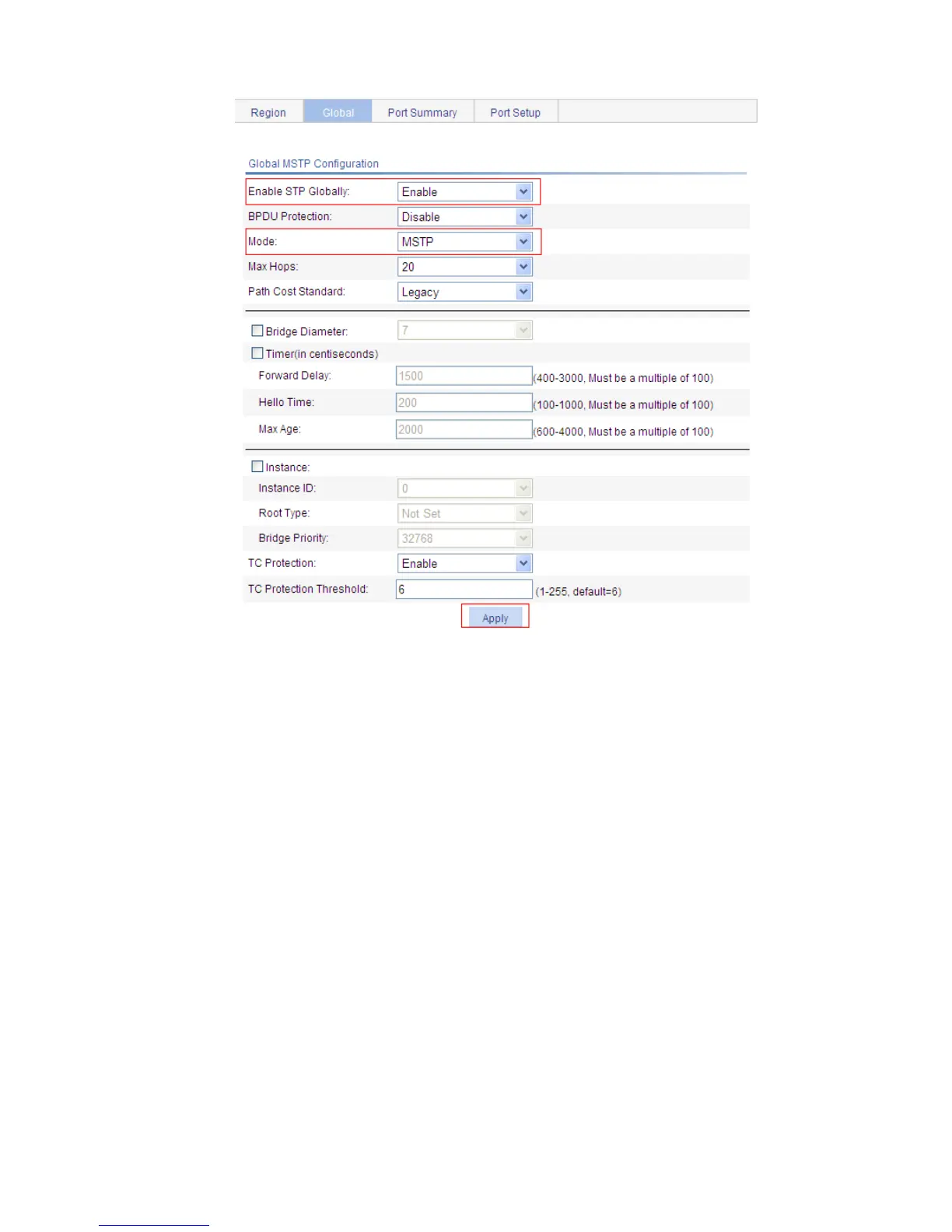

Figure 175 Configure MSTP globally (on Switch D)
 Select Enable in the Enable STP Globally drop-down list.
 Select MSTP in the Mode drop-down list.
 Click Apply.
Configuration guidelines
When configuring MSTP, follow these guidelines:
 Two devices belong to the same MST region only if they are interconnected through physical links,
and share the same region name, the same MSTP revision level, and the same VLAN-to-MSTI
mappings.
 If two or more devices have been designated to be root bridges of the same spanning tree instance,
MSTP will select the device with the lowest MAC address as the root bridge.

HP V1910 Switch Series Specifications

General

Product Series	V1910
VLAN Support	Yes
QoS	Yes
Ports	8, 24, or 48 10/100/1000 ports
MAC Address Table Size	8K entries
Power Supply	Internal power supply
Jumbo Frame Support	Yes
Operating Humidity	10% to 90% (non-condensing)
