142

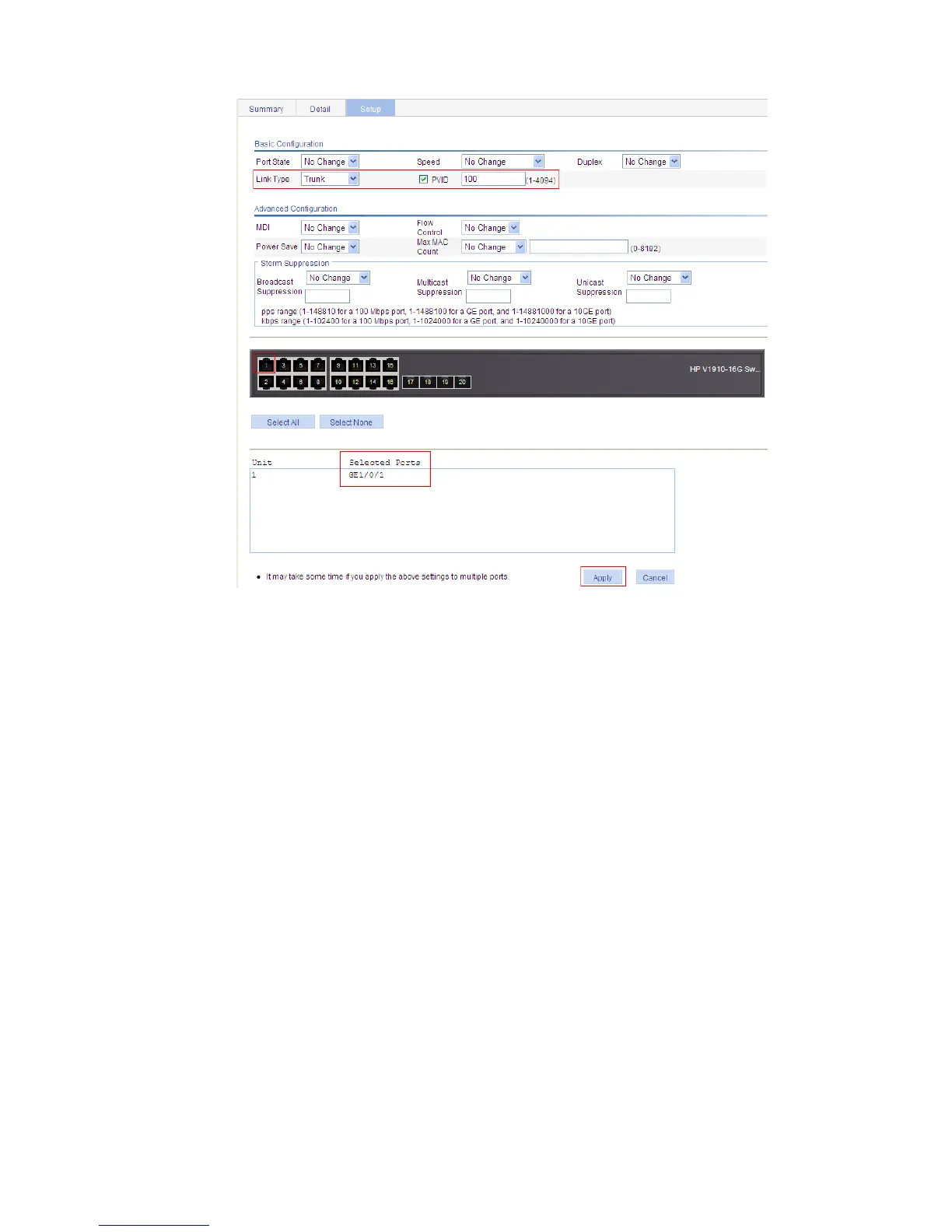

Figure 128 Configure GigabitEthernet 1/0/1 as a trunk port and its PVID as 100

 Select Trunk in the Link Type drop-down list.

 Select the PVID option, and type 100 in the text box.

 Select GigabitEthernet 1/0/1 on the chassis front device panel.

 Click Apply.

# Create VLAN 2, VLAN 6 through VLAN 50, and VLAN 100.

Select Network > VLAN from the navigation tree and click the Create tab to enter the page shown in

Figure 129.
