Select the Display a subnet of all configured VLANs option and type 1-100 in the text box.
Click Select.
Click Modify VLAN to enter the page for modifying the ports in a VLAN, as shown in Figure 131.

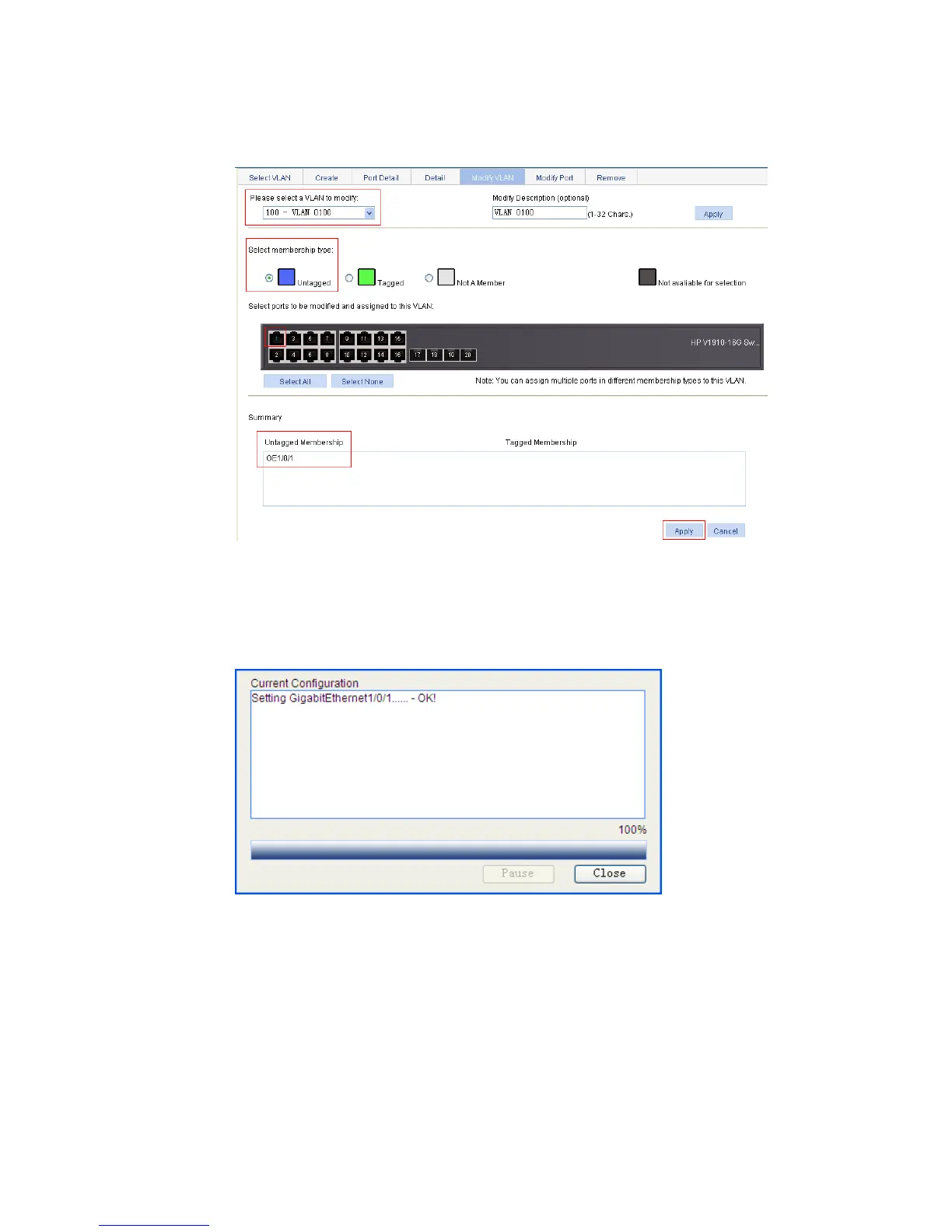

Figure 131 Assign GigabitEthernet 1/0/1 to VLAN 100 as an untagged member
Select 100 – VLAN 0100 in the Please select a VLAN to modify drop-down list.
Select the Untagged option in the Select membership type area.
Select GigabitEthernet 1/0/1 on the chassis front device panel.
Click Apply. A configuration progress dialog box appears, as shown in Figure 132.
Figure 132 Configuration progress dialog box
