163

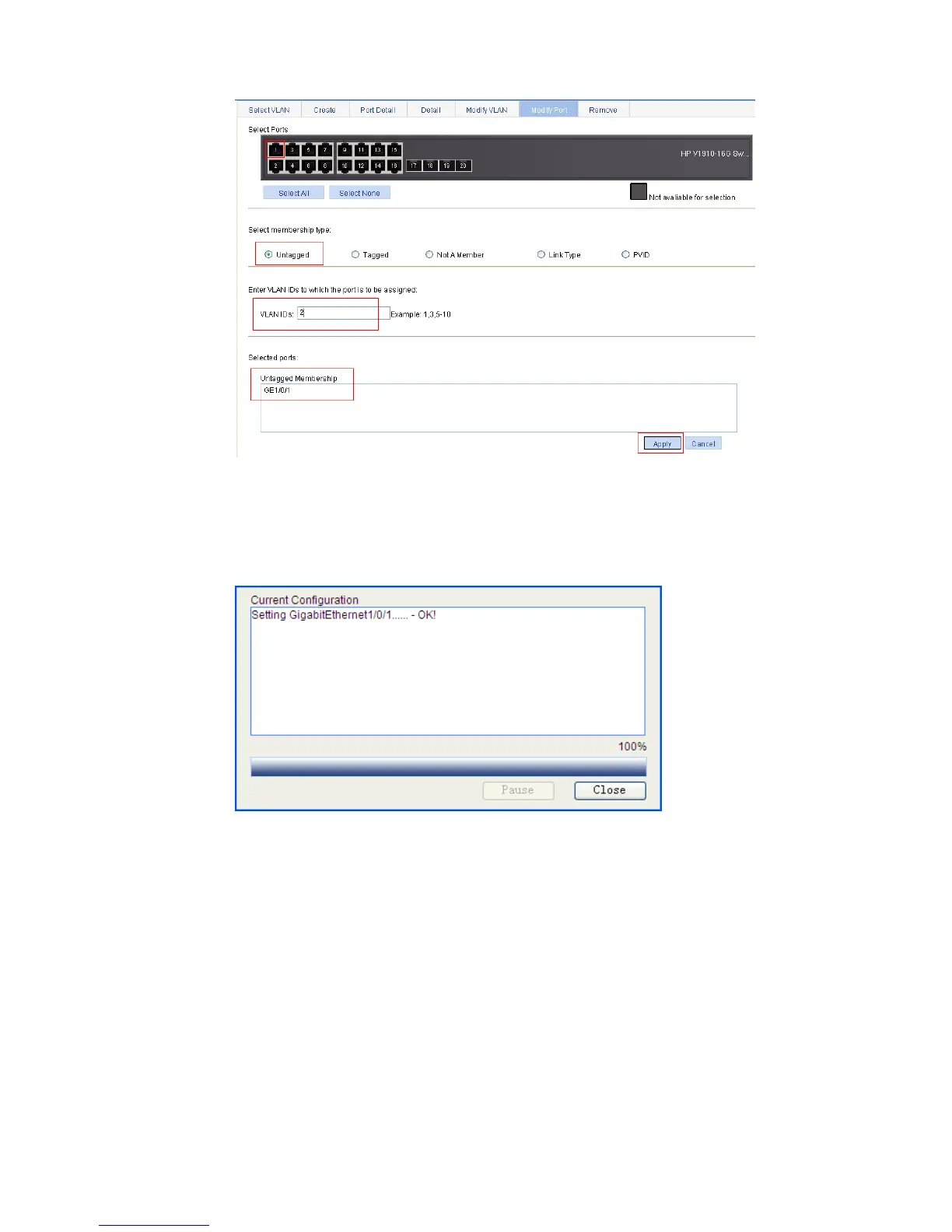

Figure 150 Assign GigabitEthernet 1/0/1 to VLAN 2 as an untagged member
Select GigabitEthernet 1/0/1 from the chassis front panel.
Select the Untagged option.
Type VLAN ID 2.
Click Apply. A configuration progress dialog box appears, as shown in Figure 151.
Figure 151 Configuration progress dialog box
After the configuration process is complete, click Close.
# Configure voice VLAN on GigabitEthernet 1/0/1.
Select Network > Voice VLAN from the navigation tree, and click the Port Setup tab to enter the
page shown in Figure 152.
