HP V1910 Switch Series User Manual

210

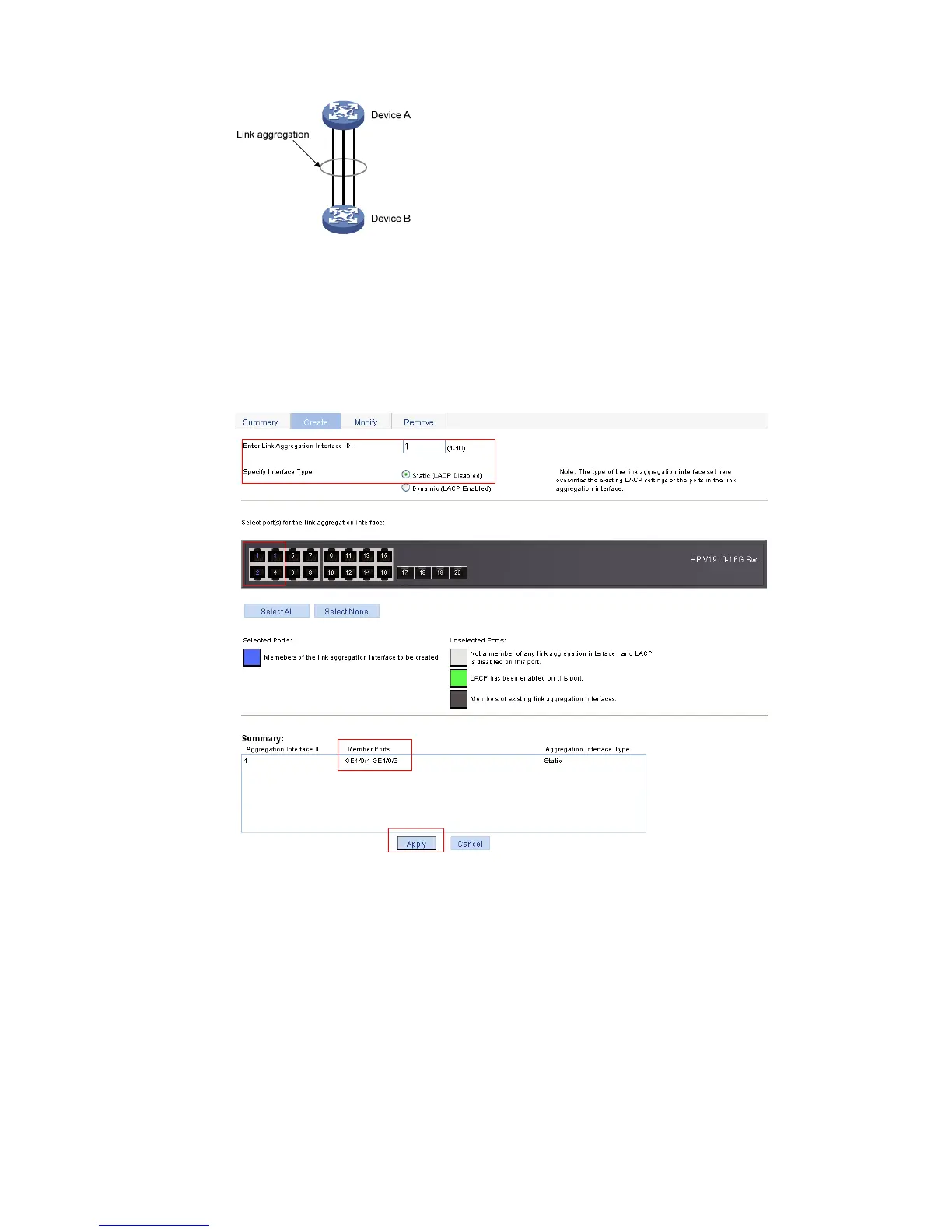

Figure 180 Network diagram for static link aggregation configuration
Configuration procedure
You can create a static or dynamic link aggregation group to achieve load balancing.
1. Approach 1: Create a static link aggregation group
# Create static link aggregation group 1.
Select Network > Link Aggregation from the navigation tree, and click the Create tab to enter the page
as shown in Figure 181.
Figure 181 Create static link aggregation group 1
 Set the link aggregation interface ID to 1.
 Select the Static (LACP Disabled) option as the aggregate interface type.
