278
VLAN-interface 2 is 10.1.1.1/24. VLAN-interface 2 is connected to the DHCP server whose IP address is
10 .1.1.1 / 2 4 .
The switch forwards messages between DHCP clients and the DHCP server.

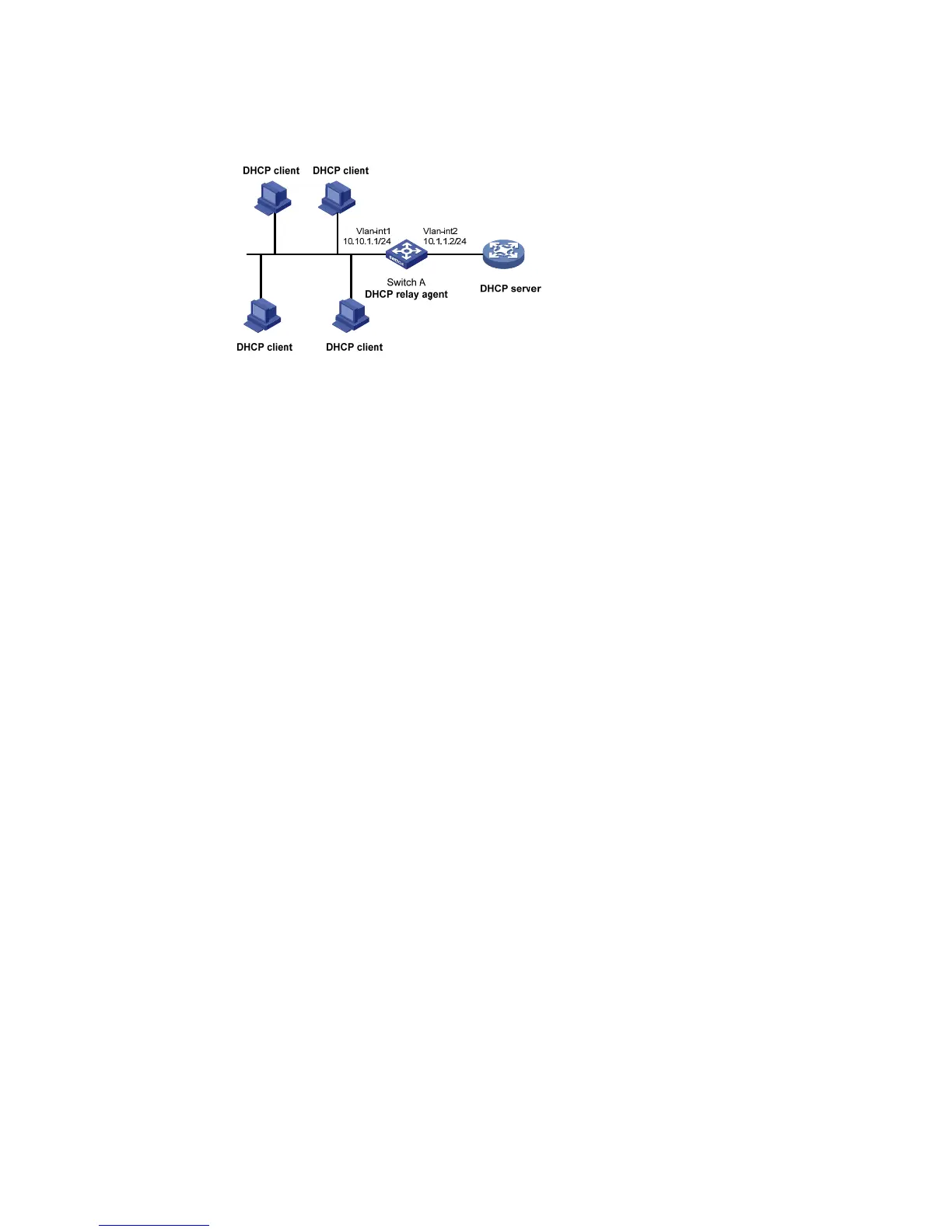

Figure 245 Network diagram for DHCP relay agent configuration
Configuration procedure
1. Specify IP addresses for interfaces (omitted)
2. Configure the DHCP relay agent
# Enable DHCP.
Select Network > DHCP from the navigation tree to enter the default DHCP Relay page. Perform the
following operations, as shown in Figure 246.
