302

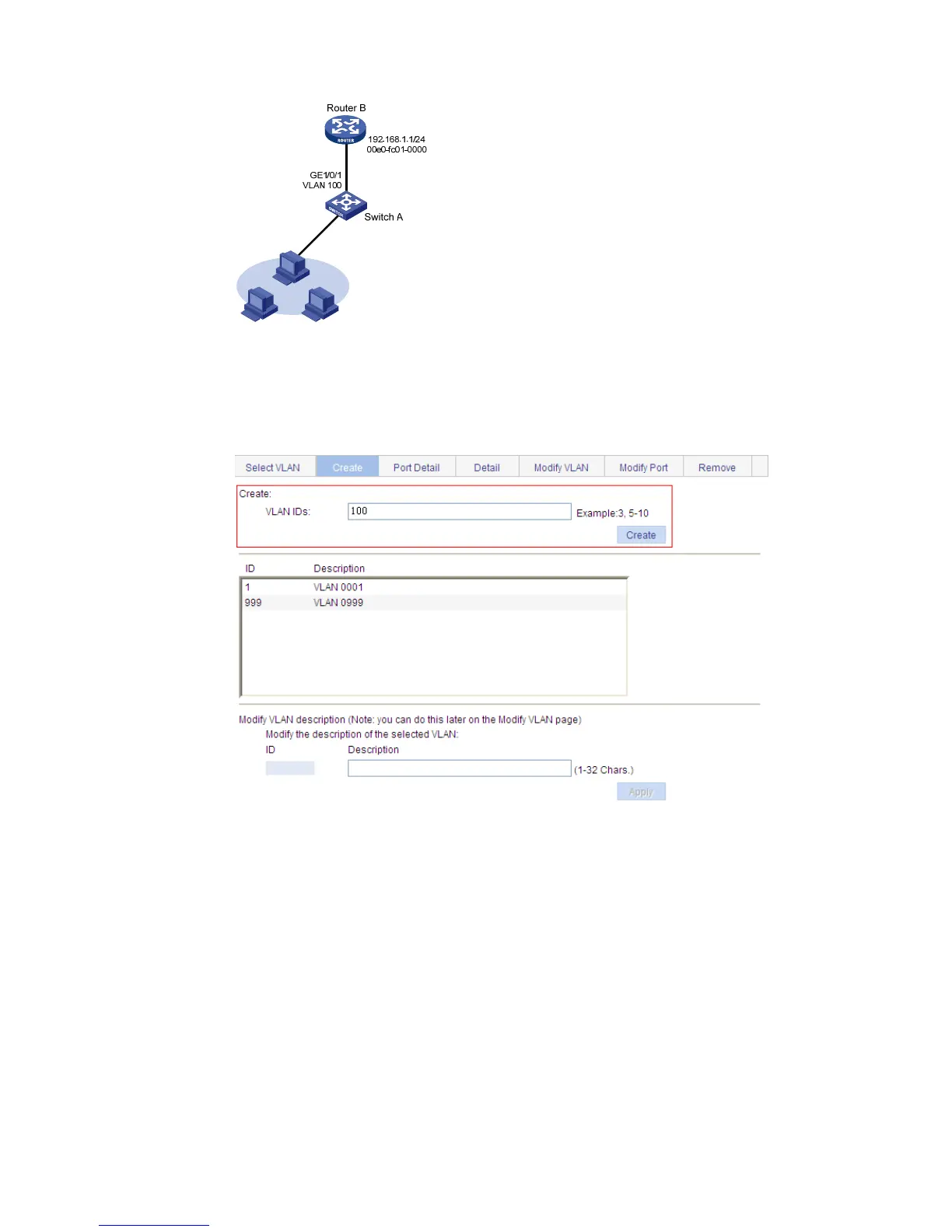

Figure 269 Network diagram for configuring static ARP entries
Configuration procedure
# Create VLAN 100.
 Select Network > VLAN from the navigation tree, click the Add tab, and then perform the following
operations, as shown in Figure 270.
Figure 270 Create VLAN 100
 Type 100 for VLAN ID.
 Click Create to complete the configuration.
# Add GigabitEthernet 1/0/1 to VLAN 100.
 Click the Modify Port tab and then perform the following operations, as shown in Figure 271.
