3 Device Description
3.1 ECC800-Pro
3.1.1 Product Conguration
The ECC800-Pro data center controller is used to monitor the devices and
environment in the smart module. It consists of the power module and main
control module. You can insert and remove the power module.
You can
congure the ECC800-Pro collector in the following two manners:
Conguration 1 (typical conguration): one power module and one main control
module
Conguration 2: two power modules and one main control module.
NO TE
● In conguration 1, install a ller panel in slot 2.
● In conguration 2, install power modules in slots 1 and 2.

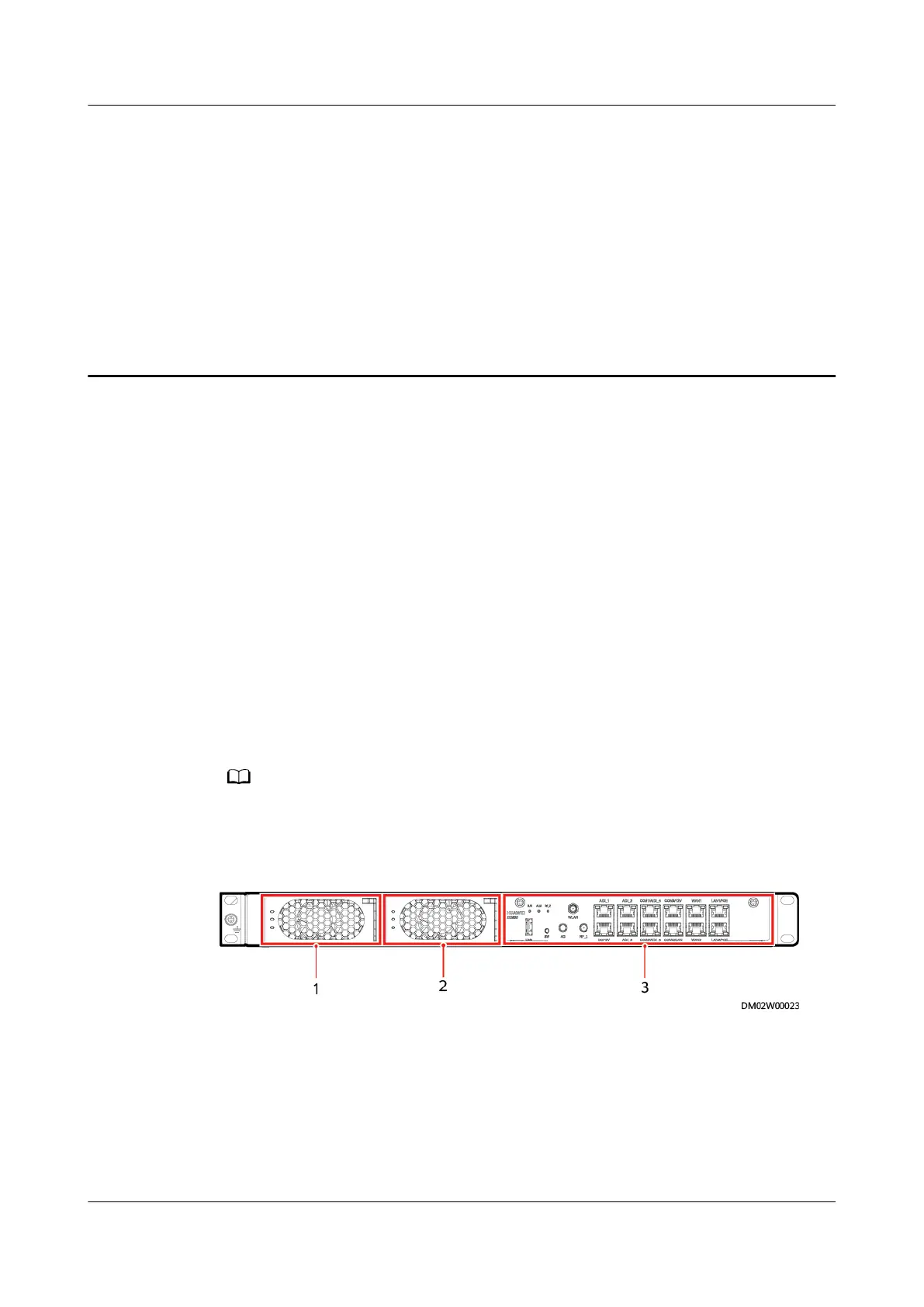

Figure 3-1 ECC800-Pro collector in conguration 2
(1) Slot 1: power modules
(2) Slot 2: power modules (3) Slot 3: main control module
