The emergency button or emergency door release button is used to open a door in
emergencies.
● The emergency button can disconnect the power supply to the lock and
therefore unlock the door in case of emergency.
● In case of emergency, break the glass of the emergency door release button
to disconnect the power supply to the lock and therefore unlock the door.
3.2.4.1.1 Access Actuator
The access actuator is the control component for the aisle door in a smart module.
It connects to the ECC800-Pro controller over FE port, wireless networking
(802.15.4). It opens the magnetic lock by detecting the card swiping information
of the card reader, door open button information, and
re linkage information. It
has access right management, access event record, and alarm record functions.

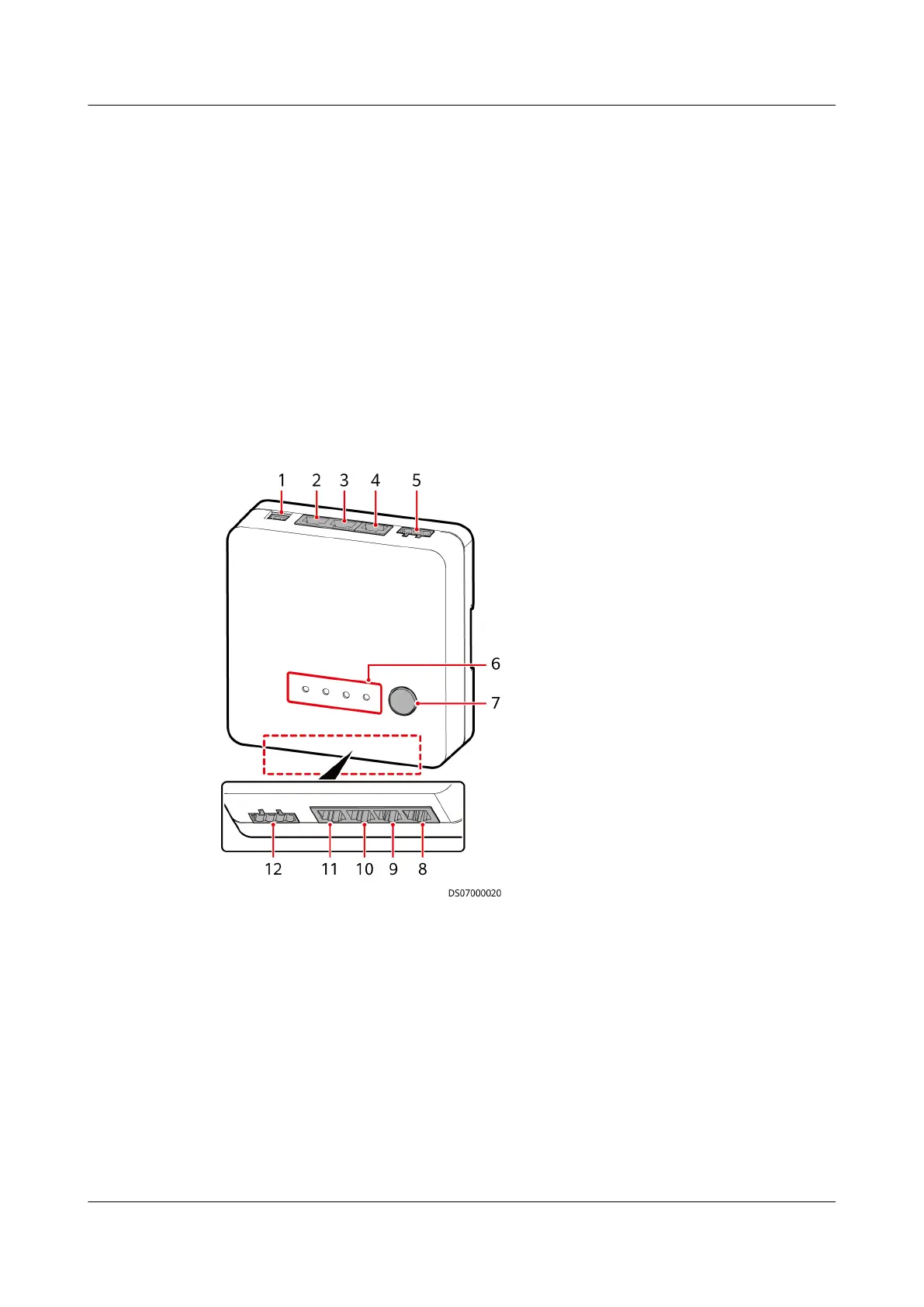

Figure 3-10 Access actuator
(1) 48 V power port
(2) PoE port (3) RS485 port COM2
(4) RS485 port COM1 (5) Address DIP switch (6) Status indicator
(7) BLINK button (8) WG_2 Wiegand interface (9) WG_1 Wiegand interface
(10) AI/DI_2 dry contact
(reserved port for linkage
control or third-party re
extinguishing system dry
contacts)
(11) AI/DI_1 dry contact
(reserved port for exit
button)
(12) LOCK/GND/GATE/COM door
status or magnetic lock port
