3.2.4.1.4 Card Reader with a Keypad

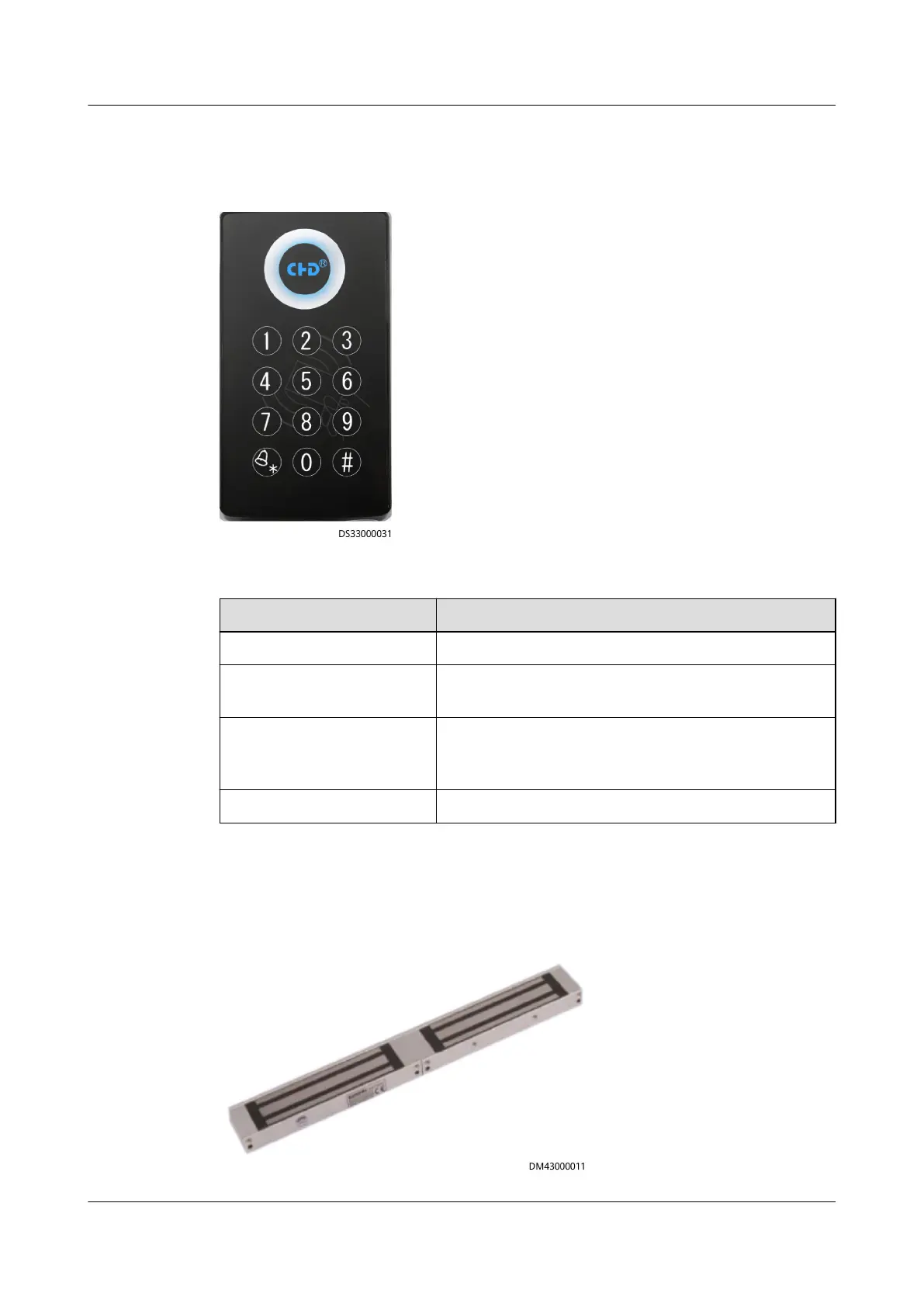

Figure 3-13 Card reader with a keypad
Table 3-35 Technical specications of a card reader with a keypad
Item
Specications
Dimensions (L x W x H) 114 mm x 63 mm x 25 mm
Operating voltage Operating voltage range: 10.8–13.2 V DC; rated
voltage: 12 V DC
Operating current Static standby current: 80 mA; dynamic operating
current (card swiping, key pressing): 150 mA;
minimum input current: 12 V DC/300 mA
Communication mode Wiegand communications port
3.2.4.1.5 Magnetic Lock
Figure 3-14 Double-door magnetic lock
