Huawei ECC800-Pro - Fingerprint and Card Reader with a Keypad

Item Description
locks) pin
sequence
GND GND
GATE/COM
(door
status) pin
sequence
GATE DI1
COM COM
3.2.4.1.2 Fingerprint and Card Reader with a Keypad

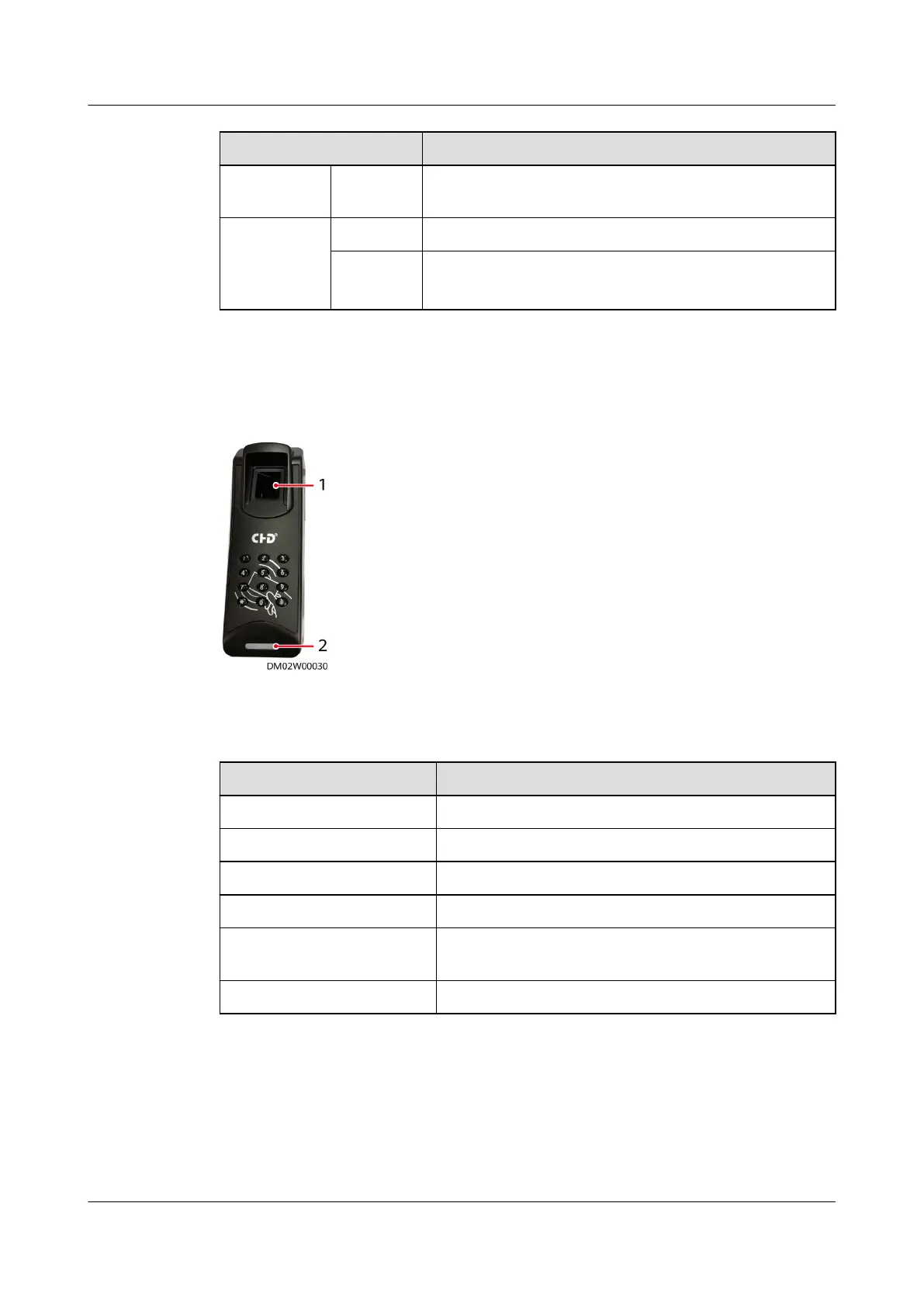

Figure 3-11 Fingerprint and card reader with a keypad
(1) Fingerprint reader
(2) LED indicator
Table 3-31 Specications for the ngerprint and card reader with a keypad
Item
Specications
Dimensions (L x W x H) 156 mm x 53 mm x 38 mm
Rated operating voltage 12 V DC±15%
Rated operating current 300 mA±15%
Card type supported IC card
Authorized storage A maximum of 3000 authorized users, with a
maximum of 6000 ngerprints
Communications mode RS485 and Wiegand communications ports
