Huawei ECC800-Pro - T;H Sensor (BOM Number: 02312 PBL)

Item Temperature Humidity
Signal port RS485
Power supply 5–16 V DC (typical value 12 V DC)
Power consumption < 180 mW
Storage environment –40°C to +85°C
Weight About 85 g
3.2.19.5 T/H Sensor (BOM Number: 02312PBL)

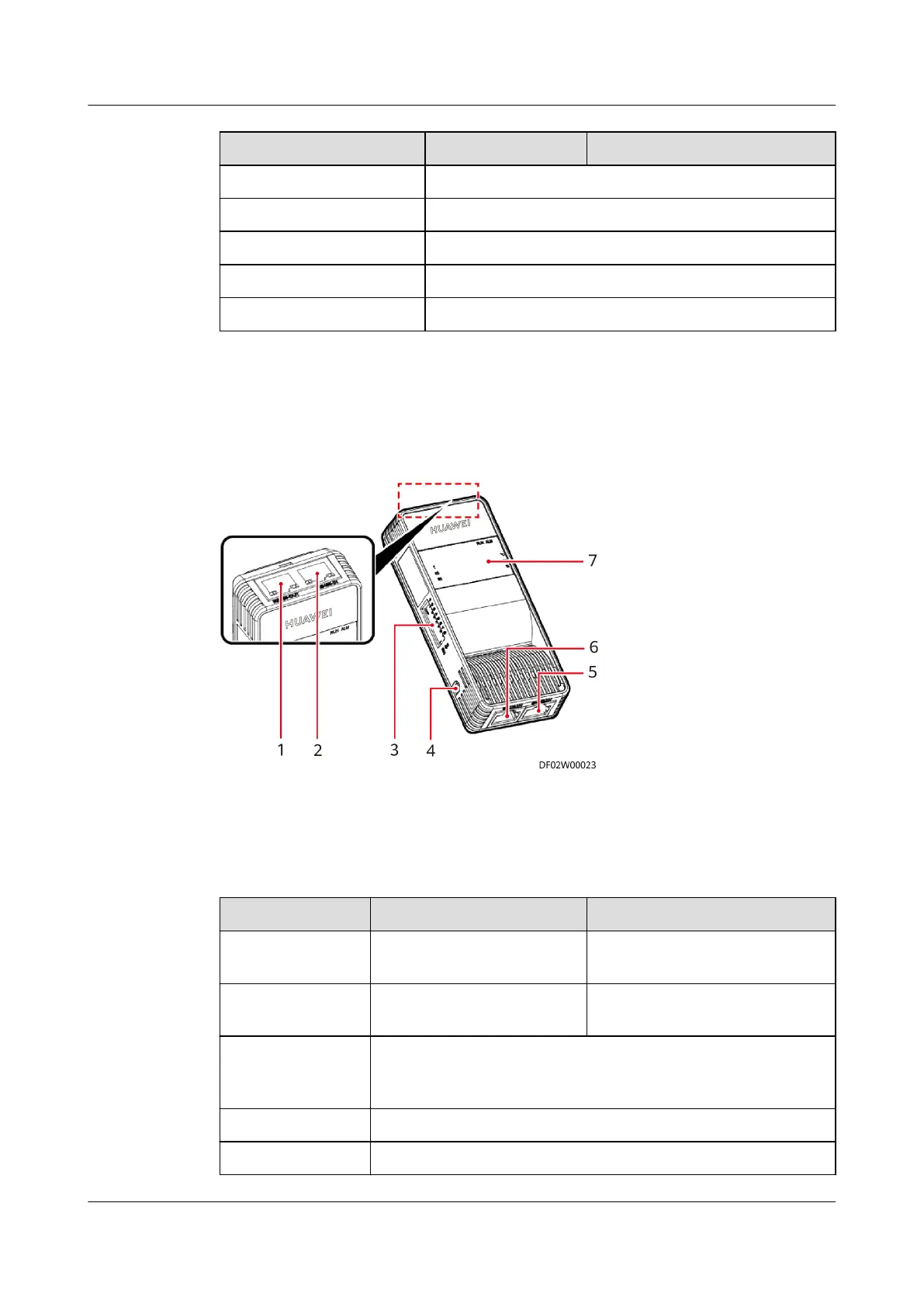

Figure 3-43 Appearance
(1) RS485-OUT
(2) RS485-IN (3) DIP switch (4) Button
(5) NTC1–3 (6) NTC4–6 (7) Display
Table 3-71 T/H sensor specications
Item
Temperature Humidity
Measurement
range
–40°C to +70°C 1%–99% RH
Measurement
precision
≤ ±1°C (25°C) ≤ ±5% RH (25°C, 20%–80%
RH)
Extended
temperature
collection port
Provides two RJ45 ports to connect to six NTC temperature
sensors, each RJ45 port connecting to three NTC
temperature sensors.
Signal port RS485
Power supply 5–16 V DC (typical value 12 V DC)
