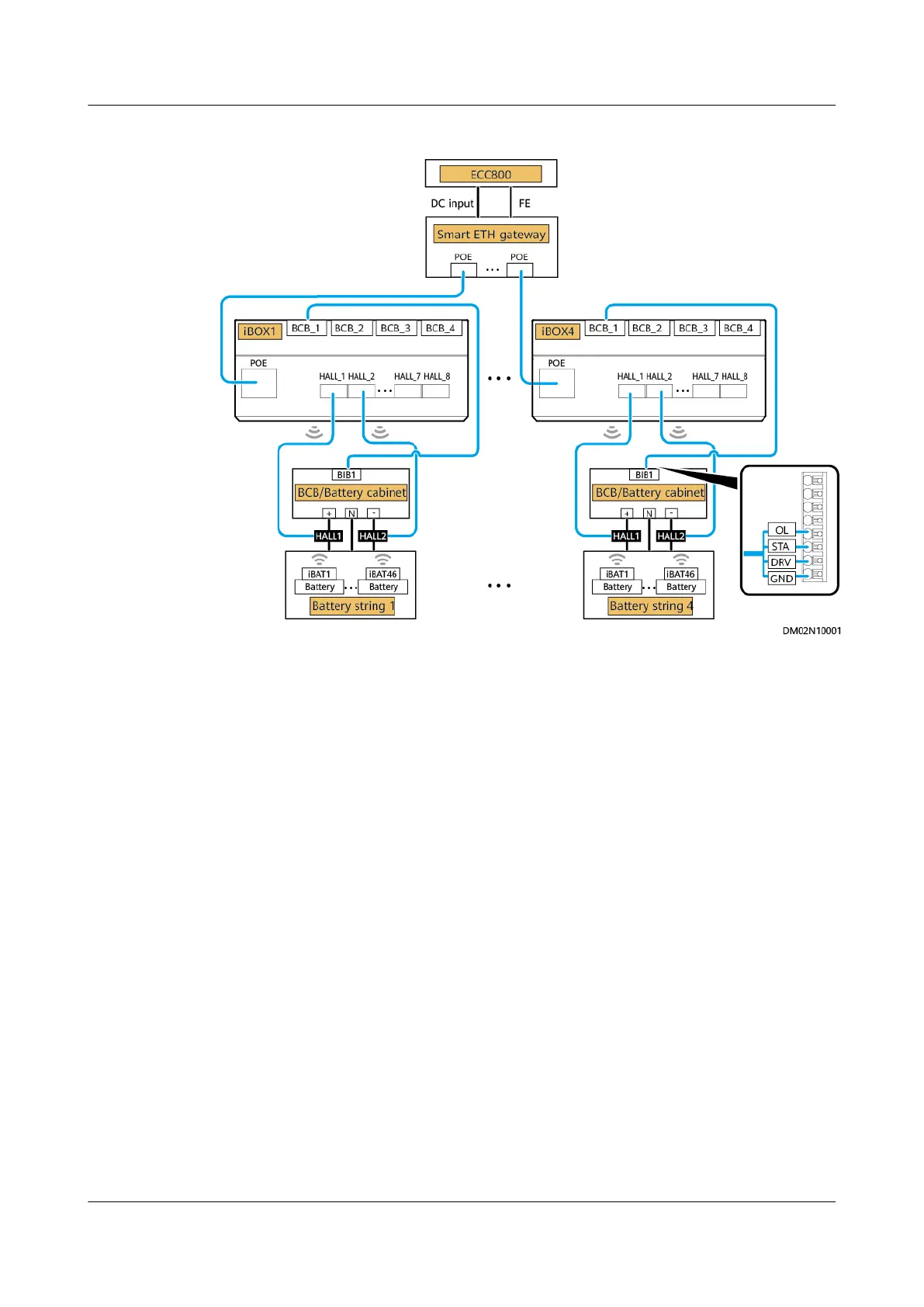

Figure 3-45 Connecting the iBOX signal cable
3.2.21.1 iBOX
iBOX is a battery information collection module. It collects battery status data
from the downstream iBAT groups through wireless communication, and sends
the data to the ECC, UPS, and the third-party network management system
(NMS) through COM or PoE ports.
ECC800 Data Center Controller
User Manual (for ECC800-Pro) 3 Device Description
Issue 02 (2020-09-07) Copyright © Huawei Technologies Co., Ltd. 78
