3.2.1 UIM20A Expansion Module

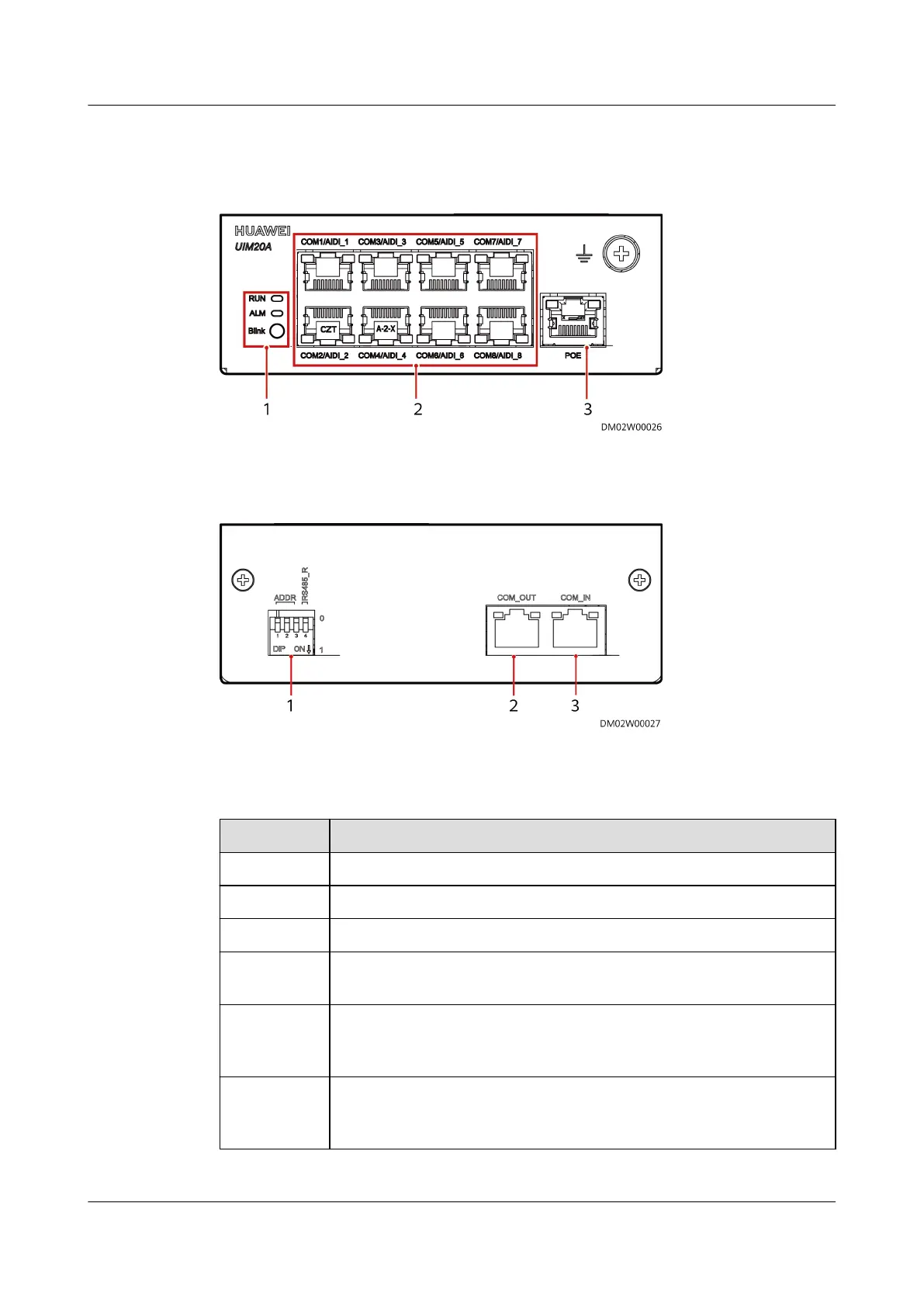

Figure 3-6 UIM20A expansion module front panel
(1) Indicators and button (2) COM1/AI/DI_1 - COM8/AI/DI_8 (3) POE
Figure 3-7 UIM20A expansion module rear panel
(1) DIP switch
(2) COM_OUT (3) COM_IN
Table 3-17 UIM20A expansion module specications
Item
Specications
Width 120 mm
Depth 200 mm
Height 43 mm
Operating
temperature
–30°C to +65°C
Installation
requirement
s
Installed in a 19-inch rack
Environmen
tal
protection
RoHS5
