Table 3-45 LOCK/GND/BUTTON/GND port pin denitions
Item Description
LOCK/GND
pin
sequence
LOCK 12V_OUT
GND GND
BUTTON/G
ND pin
sequence
BUTTON DI3
GND GND
3.2.8 Multi-Functional Sensor
A multi-functional sensor integrates the temperature and humidity (T/H) sensor,
smoke sensor and infrared detection. The multi-functional sensor can connect to
the ECC800-Pro over FE or wireless communication.
NO TE
The infrared detection function is enabled only when the intelligent lighting function is
enabled.

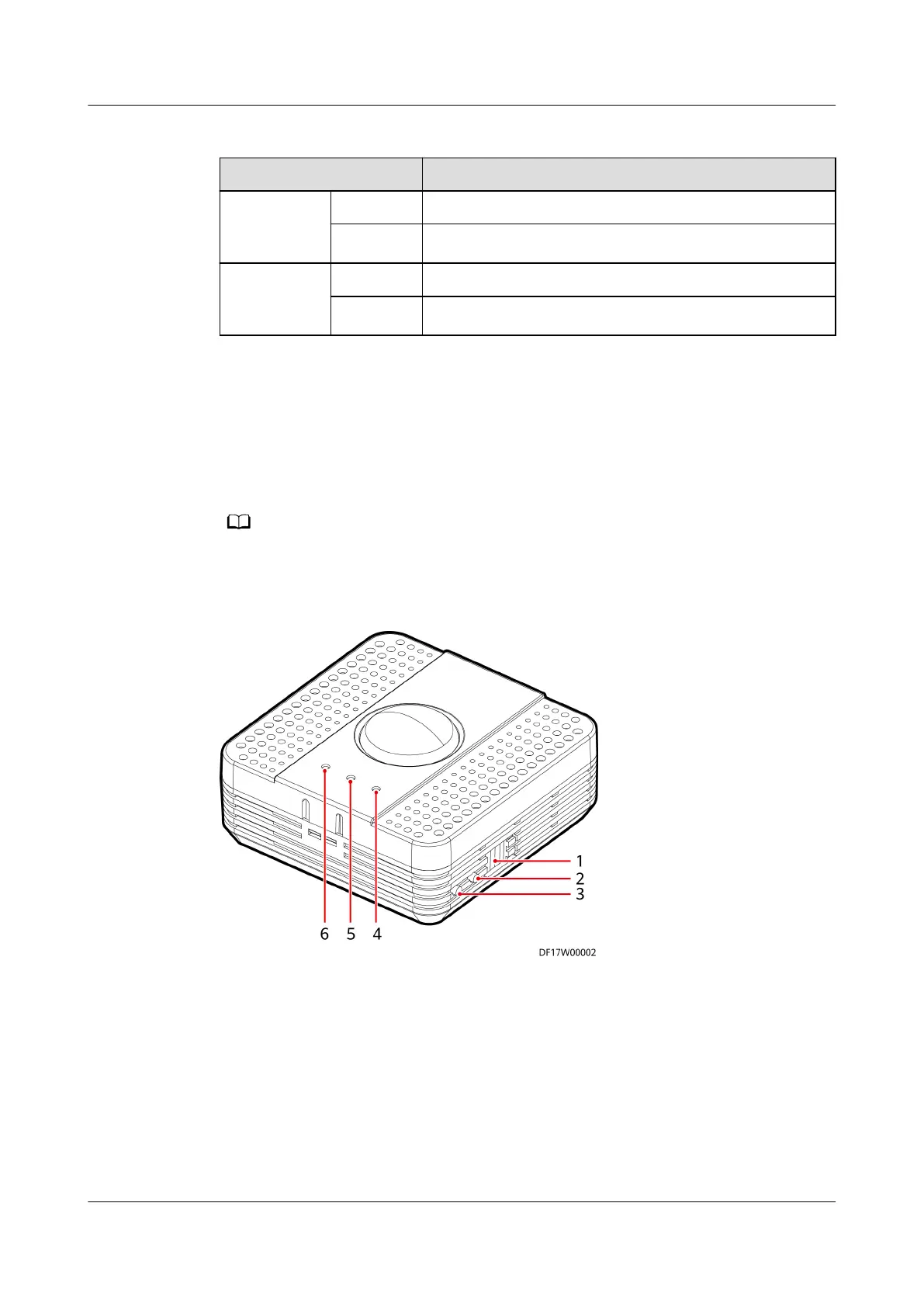

Figure 3-23 Multi-functional sensor
(1) Address DIP switch
(2) BLINK button (3) TEST button
(4) RF_Z indicator (5) RUN indicator (6) ALM indicator
