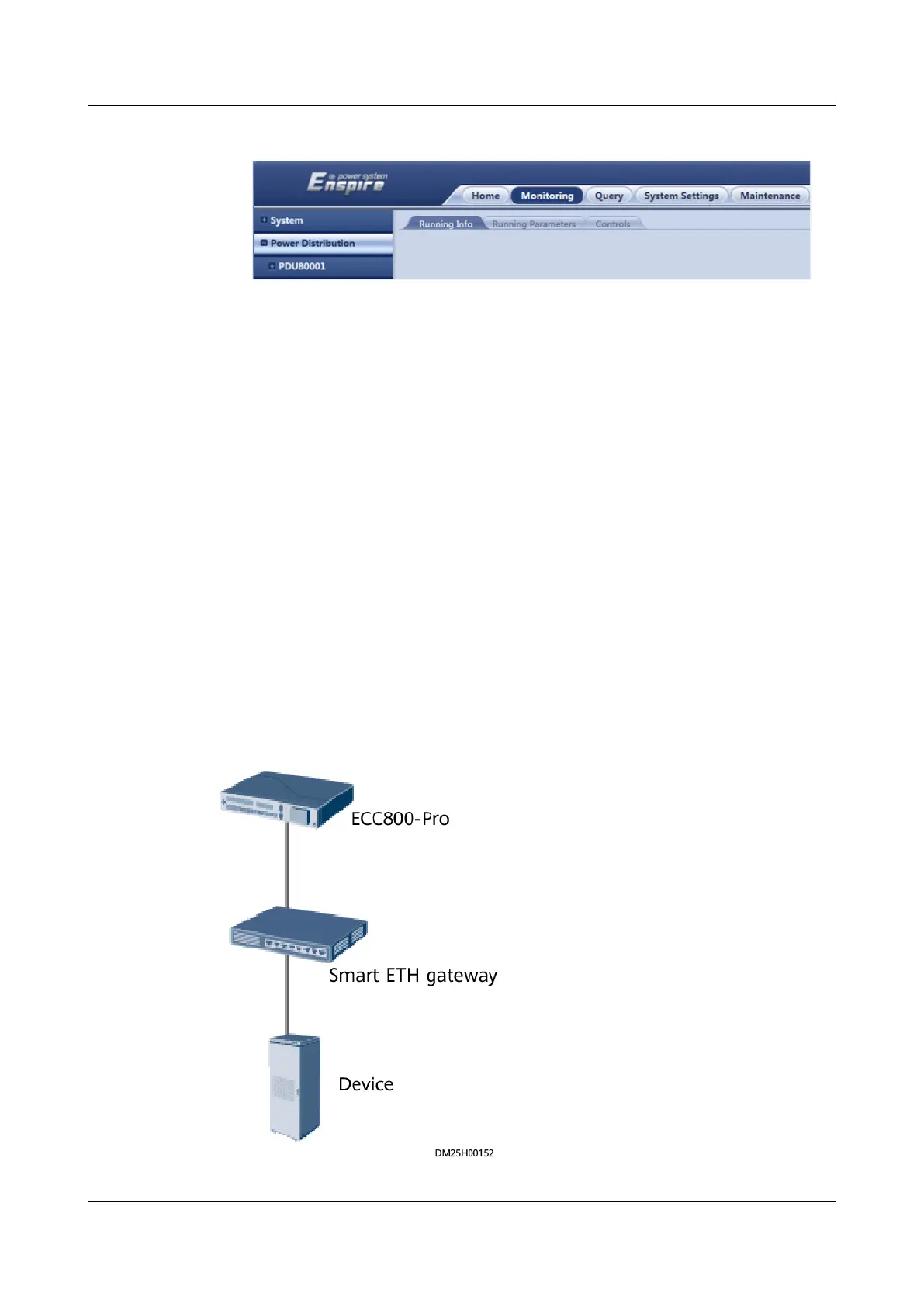

Figure 8-30 Device accessed the ECC800-Pro
● If the device does not exist, check that the cable is properly connected
between the device and the ECC800-Pro, the ECC800-Pro is operating
properly, and communications parameters are set correctly.
----End
Follow-up Procedure
Choose Home > Plan View on the ECC800-Pro WebUI, and drag the device to the
corresponding position in the Smart Module View pane based on the actual
device layout.
8.1.27 How Can I Add the Devices Accessed Through a Smart
ETH Gateway to the ECC800-Pro WebUI (Modbus-MAC)?
Context
The device that supports Modbus-MAC can be automatically
identied by the
ECC800-Pro.
Figure 8-31 Network diagram
ECC800 Data Center Controller
User Manual (for ECC800-Pro) 8 FAQ
Issue 02 (2020-09-07) Copyright © Huawei Technologies Co., Ltd. 328
