Huawei ECC800-Pro - T;H Sensor (BOM Number: 33010516)

Item Specications
Storage temperature –40°C to +70°C
Output RS485
3.2.19.3 T/H Sensor (BOM Number: 33010516)

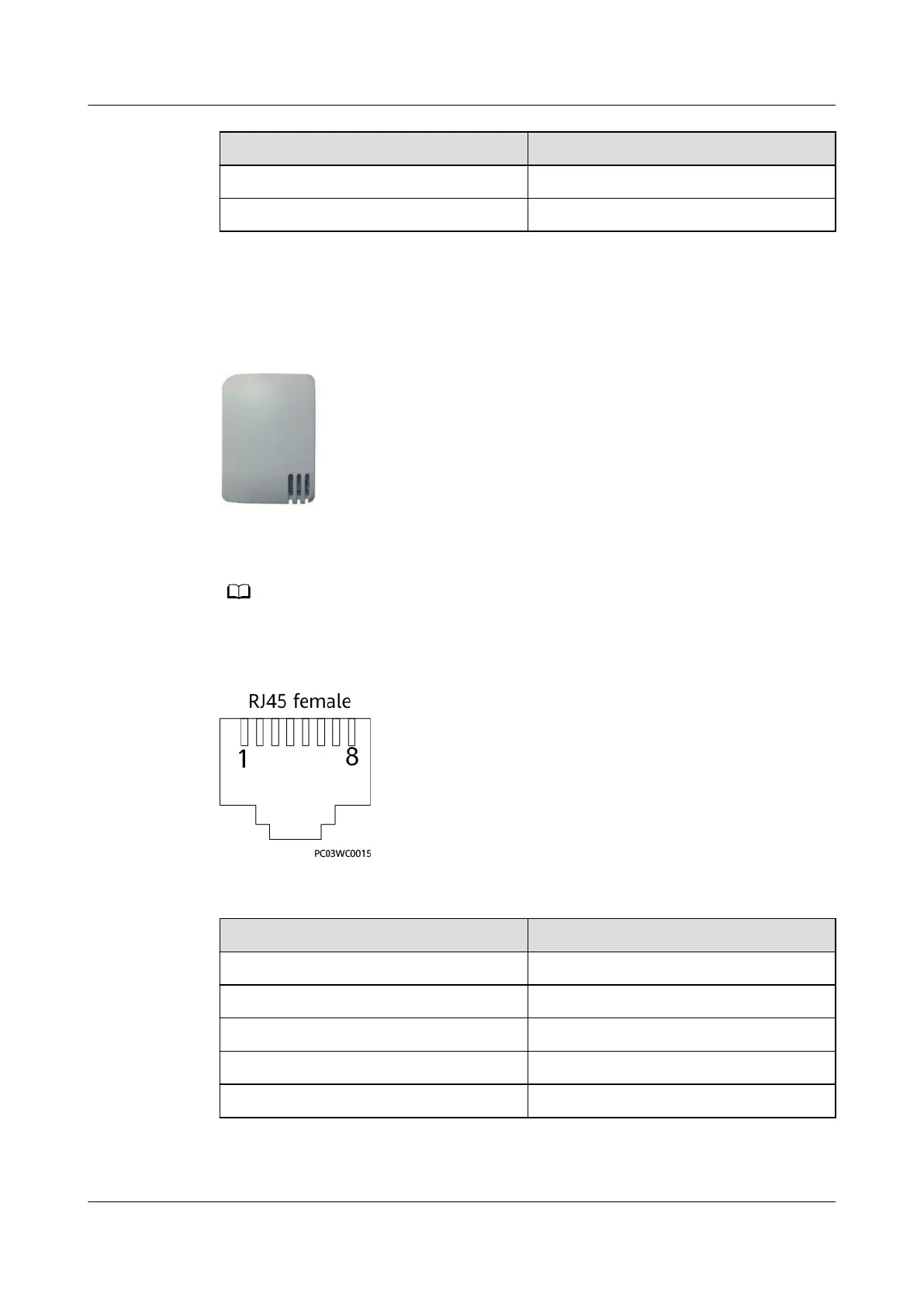

Figure 3-40 Appearance
The T/H sensor uses an RJ45 connector.
NO TE
The appearance of the T/H sensor depends on the onsite delivery.
Figure 3-41 Pins of an RJ45 connector
Table 3-68 RJ45 port pin denitions
Pin
Description
Pin1 or Pin 4 A
Pin2 or Pin 5 B
Pin3 V+
Pin6 V-
Pin7 Reserved
