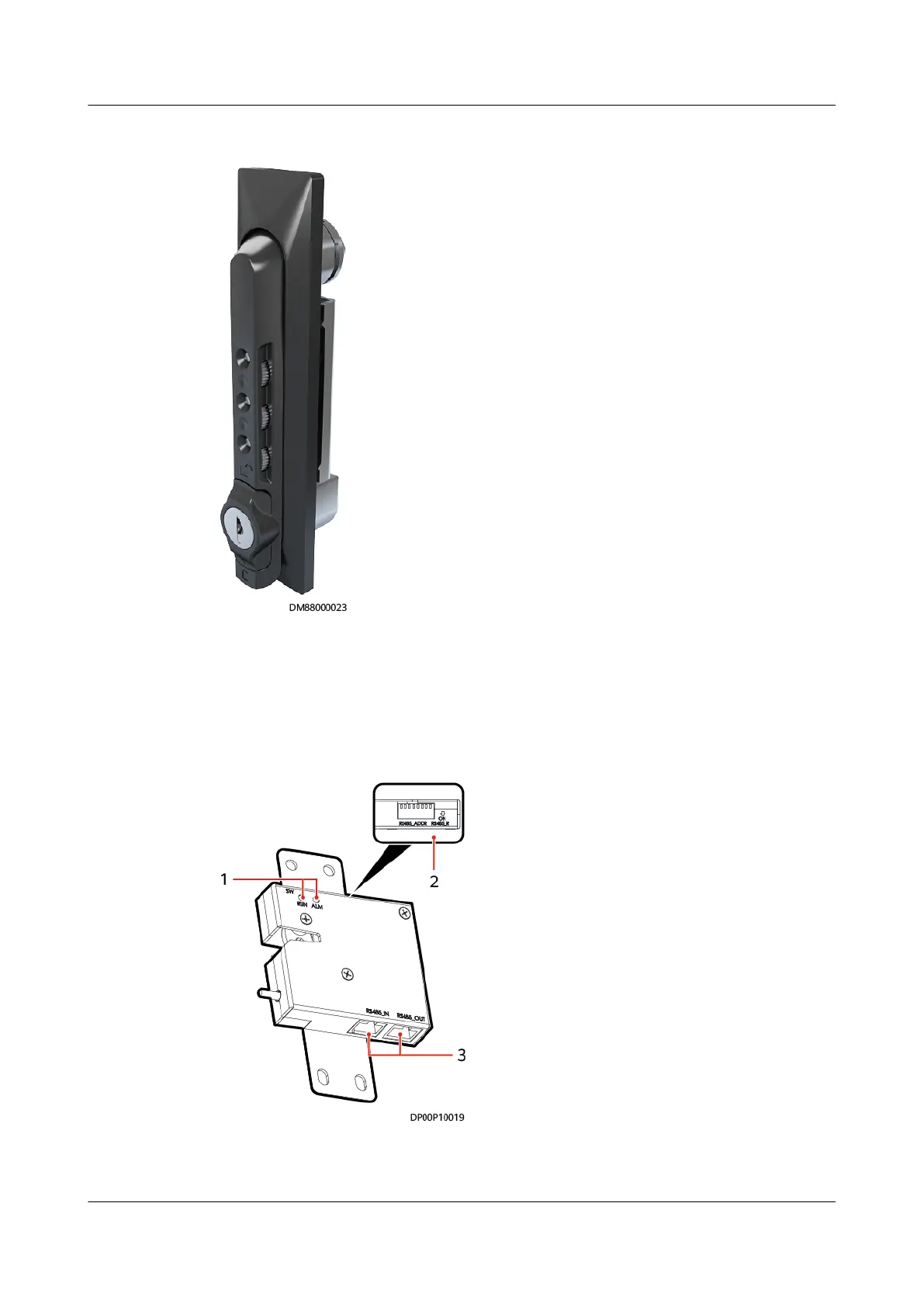

Figure 3-18 Mechanical code lock
3.2.4.3 Cabinet Electronic Clasp Lock
The cabinet electronic clasp lock is used to manage access control. It can be
automatically unlocked, or manually locked and unlocked.
Figure 3-19 Cabinet electronic clasp lock
(1) LED indicator
(2) DIP switch (3) RJ45 power port
ECC800 Data Center Controller
User Manual (for ECC800-Pro) 3 Device Description
Issue 02 (2020-09-07) Copyright © Huawei Technologies Co., Ltd. 42
